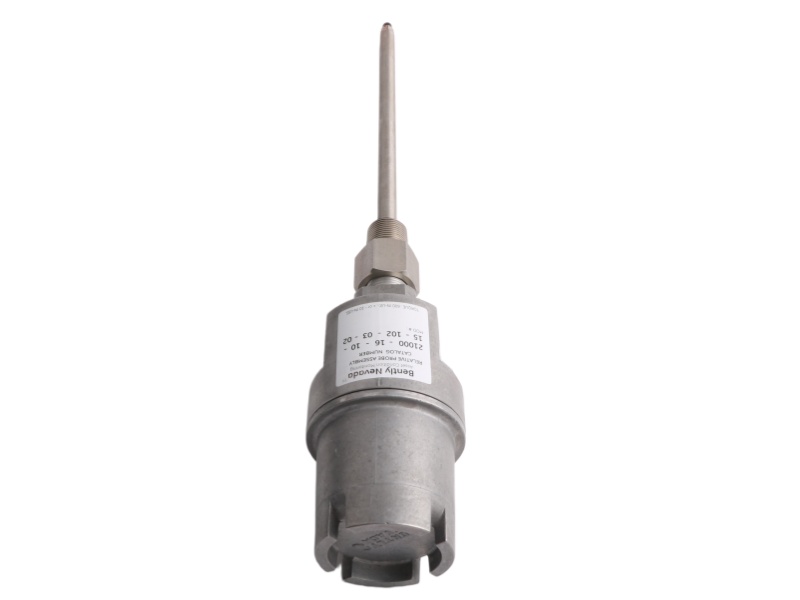

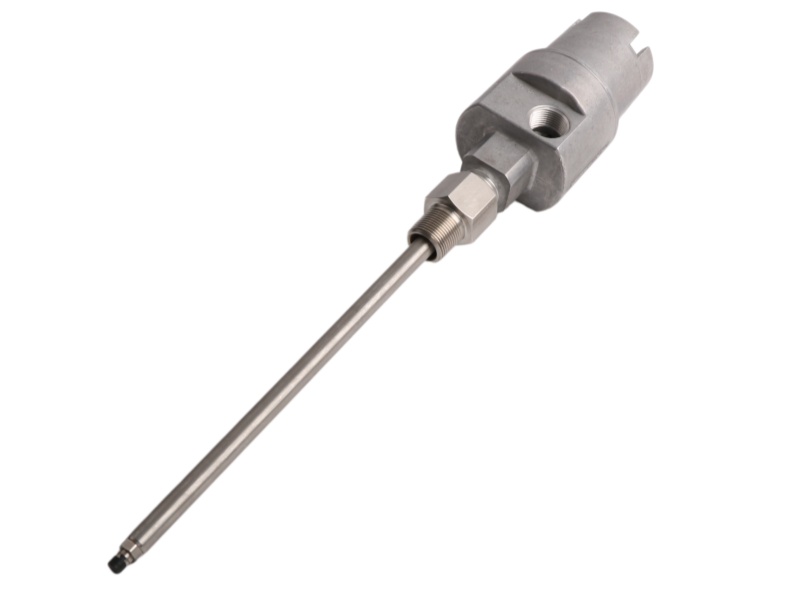

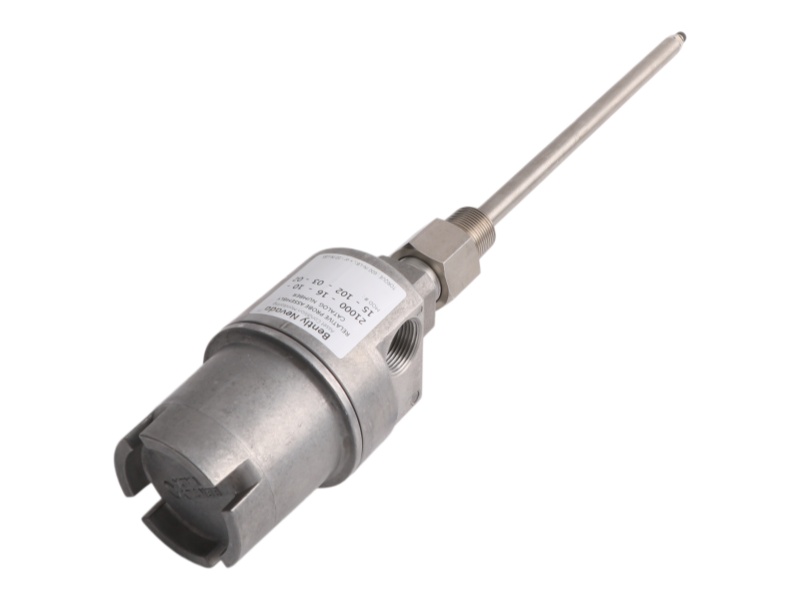

The 21000-16-10-00-030-00-02 is a Bently Nevada explosion-proof aluminum probe housing assembly featuring an integrated 3300 XL 8mm proximity probe. Fully compliant with API 670 standards, this unit works seamlessly with 3300 XL Proximitor Sensors and extension cables to deliver robust physical protection and stable industrial vibration monitoring in demanding external environments.
Specifications
- Housing Material: Constructed of polyphenylene sulfide (PPS), a high-strength thermoplastic with excellent corrosion resistance.
- Metal Components: Other elements made of corrosion-resistant stainless steel for durability.
- API Compliance: Fully compliant with API 670 Standard for externally mounted proximity probe housings.
- Hazardous Area: Suitable for intrinsically safe hazardous area applications when installed with approved components.
- Probe Type: Accommodates 3300 XL 8 mm probe with 1.0 m (39 in) cable length.
- Fitting: 3/4-14 NPT conduit fitting; overall housing length of 3.0 in (76.2 mm).
System Compatibility and Alternative Models
System Compatibility
- Fully compatible with Bently Nevada 3300 XL Proximitor Sensors and 3300 XL Extension Cables.
Fully interchangeable with legacy non-XL 3300 5mm and 8mm transducer systems in compliance with API 670 standards.
Alternative Models & Differences
- 24701-16-10-00-030-00-02: Utilizes a 303 stainless steel housing body instead of the lighter aluminum body of the 21000 series.
21000-28-10-00-030-00-02: Features a 3300 XL 8mm probe with selectable hazardous area approvals rather than the standard probe option.
164818 Compact Housing: Designed specifically for applications with severe space restrictions, whereas the 21000 series provides a full-sized rugged dome cover.
Ordering Information Table
|
Designator |
Option Code |
Description |
|
Base Model |
21000 |
Aluminum probe housing assembly |
|
A: Probe with Connector |
16 |
3300 XL 8mm probe included |
|
B: Probe Cable Length |
10 |
1.0 meter (39 inches) cable length |
|
C: Standoff Adapter |
00 |
No standoff adapter |
|
D: Probe Penetration |
030 |
3.0 inches overall probe penetration depth |
|
E: Fittings |
00 |
Without fittings |
|
F: Mounting Thread |
02 |
3/4-14 NPT heavy-duty mounting thread |
FAQ
Q1: What is the primary purpose of this probe housing assembly?
A1: It is designed for mounting proximity probes through the machine case, typically for radially mounted transducers used in vibration or Keyphasor measurements.
Q2: What material is the housing made of?
A2: The housing is constructed of polyphenylene sulfide (PPS), a high-strength thermoplastic with excellent corrosion resistance, while other components are stainless steel.
Q3: What is the key benefit of using this probe housing?
A3: It allows external access to the probe and extension cable, permitting gap adjustment or probe replacement without disassembling the machine.
Q4: What industry standard does this housing comply with?
A4: It is fully compliant with the American Petroleum Institute's (API) 670 Standard for externally mounted proximity probe housings.
Q5: What type of probe is installed in this specific model?
A5: This model (21000-16-10-00-030-00-02) accommodates a 3300 XL 8 mm probe with a 1.0-meter cable and features a 3/4-14 NPT conduit fitting.
Accessories
| Part Number | Description |
| 37948-01 | Probe Support / Oil Seal Recommended for sleeves longer than 305 mm (12 in) |
Individual Probe Sleeve for 21000/24701 Proximity Probe Housings
44382-AAA
| A: Measured Probe Sleeve Length | |
|
Recommendation Order in increments of 0.1 in (3 mm) |
|
The individual probe sleeve length does not include the distance from the end of the sleeve to the probe tip or the gap from the probe tip to the target material. If only the part number of the original housing is known, and the sleeve cannot be measured, use the following table to determine the sleeve length:
| AAA | Description |
|
Standoff adapter option from original housing (21000, CA21000, 24701, or CA24701 option C) plus Probe penetration option from original housing (21000, CA21000, 24701, or CA24701 option D) and 045 |
All housing AAA options except NSv and 11mm probes (options other than A:06, A:12, A:26, A:27, A:29, A:30, A:31, A:32, A:35, or A:36) |
|
Example Original part number 21000-16-10-15-035-03-02 AAA option for replacement sleeve (015 + 035 + 045) = 095 |
|
|
Standoff Adapter Option from original housing (21000, CA21000, 24701, or CA24701 option C) plus Probe penetration option from original housing (21000, CA21000, 24701, or CA24701 option D) and 046 |
Housing AAA options for 3300 NSv probe options (A:26, A:27, A:31, or A:32 |
|
Example Original part number 24701-31-10-15-090-03-02 AAA option for replacement sleeve (015 + 090+ 046) = 151 |
|
|
Standoff Adapter Option from original housing (21000, CA21000, 24701, or CA24701 option C) plus Probe penetration option from original housing (21000, CA21000, 24701, or CA24701 option D) and 037 |
Housing AAA options for 3300 XL 11mm probe options (A:29, A:30, A:35, or A:36) |
|
Example Original part number CA24701 -36-10-40-053- 02-02 AAA option for replacement sleeve (040 + 053+ 037) = 130 |
|
|
Standoff Adapter Option from original housing (21000, CA21000, 24701, or CA24701 option C) plus Probe penetration option from original housing (21000, CA21000, 24701, or CA24701 option D) and 039 |
Housing AAA options for 7200 Series 11mm probe options (A:06 or A:12) |
|
Example Original part number CA24701 -12-10-30-113-01 - 02 AAA option for replacement sleeve (030 + 113+ 039) = 182 |
|
| Minimum Probe Sleeve Length | |
| For all probes except NSv and 11mm probes | 5.5 in (140 mm) = 055 |
| 3300 XL NSv probe | 5.5 in (142 mm) = 056 |
| 3300 XL 11mm probe | 4.7 in (119 mm) = 047 |
| Maximum Probe Sleeve Length | |
| All 0.5 meter probes except NSv and 11mm probes | 18.0 in (457 mm) = 180 |
| 3300 XL NSv 0.5 meter probe | 18.1 in (460 mm) = 181 |
| 7200-series 0.5 meter 11mm probe | 15.4 in (391 mm) = 154 |
| All 1.0 meter probes except NSv and 11mm probes | 33.7 in (856 mm) = 337 |
| 3300 XL NSv 1.0 meter probe | 33.8 in (859 mm) = 338 |
| 3300 XL 1.0 meter 11mm probe | 32.9 in (836 mm) = 329 |
| 7200 Series 1.0 meter 11mm probe | 33.1 in (841 mm) = 331 |
