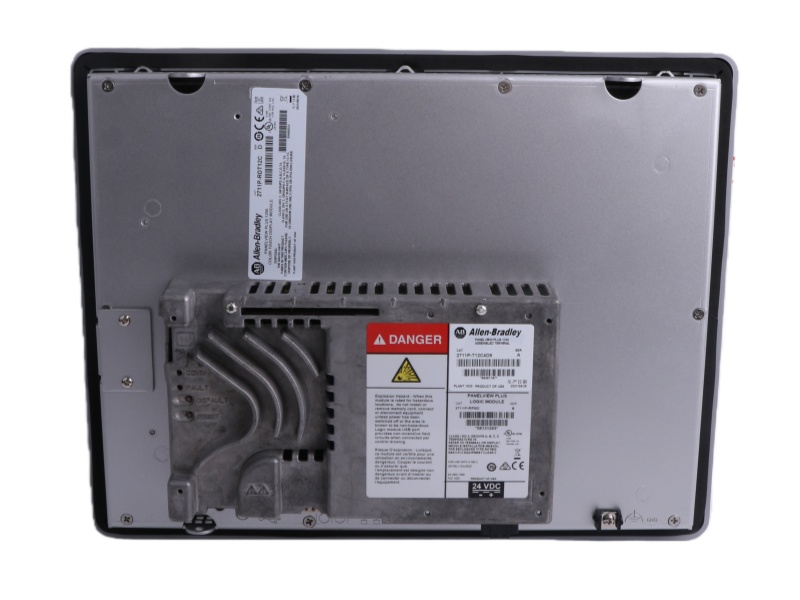

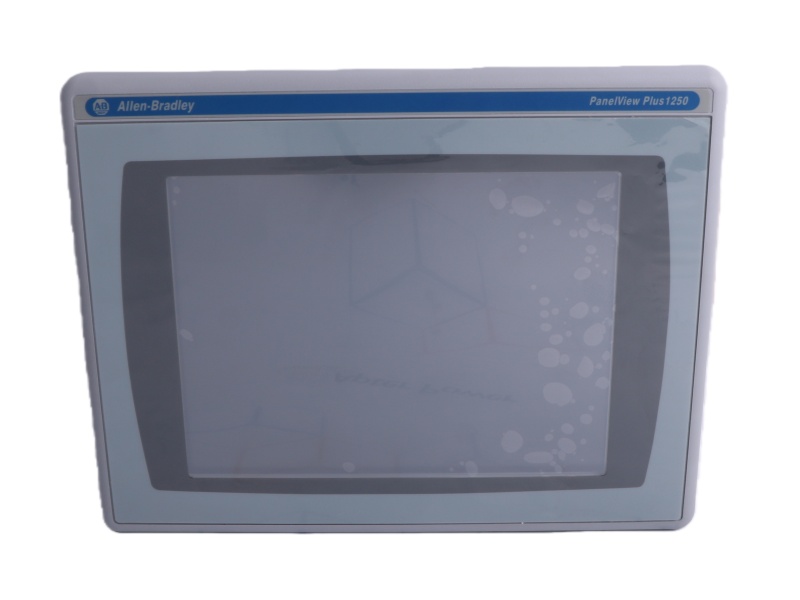

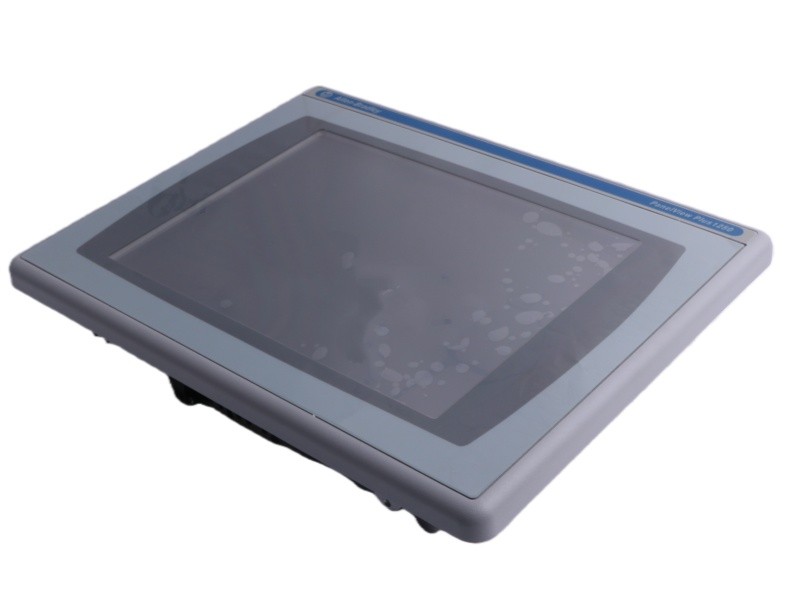

The Allen-Bradley Operator Interface 2711P-T12C4A8 is a PanelView Plus 6 1250 touchscreen operator terminal. It features a 12.1-inch color display, powered by 100-240VAC, and includes Ethernet, RS232, and two USB ports for versatile communication.

Specifications

Display Features: 12.1" color TFT touchscreen with 800x600 resolution, offering clear visuals and durable input for over 1 million presses.

Connectivity: Integrated Ethernet and RS-232 ports, plus two USB host ports for flexible peripheral and network communication.

Memory & Performance: Equipped with 512 MB of both Flash and RAM for reliable operation and data handling in industrial applications.

Power Supply: Wide input voltage range of 100-240VAC, compatible with 50-60Hz, ensuring global usability.

Design & Reliability: Long-life CCFL backlight (50,000 hours), field-replaceable design, and robust enclosure for extended service in demanding environments.

Product Status: Please note this model has reached its end-of-life stage; consider replacement options for ongoing support.

FAQ

Q1: What is the display specification of the 2711P-T12C4A8 terminal?

A1: It features a 12.1-inch color TFT touchscreen with a resolution of 800 x 600 and supports 18-bit color graphics for clear industrial visualization.

Q2: What are the power requirements for this operator terminal?

A2: It operates on a wide input voltage range of 100-240 VAC at 50-60 Hz, making it suitable for global use in various industrial settings.

Q3: How is the terminal mounted and what are the environmental ratings?

A3: It can be installed in a landscape orientation in enclosures rated NEMA/UL Type 12, 13, 4X (indoor), and IEC IP54, IP65, following specific panel cut-out and clearance dimensions.

Q4: Does the terminal include a battery, and what is its function?

A4: Yes, it has a built-in, field-replaceable battery (Cat. No. 2711P-RY2032) that backs the real-time clock, providing critical data timestamps with an expected lifespan of four years.

Q5: What communication and software features does it support?

A5: It includes integrated Ethernet, RS-232, and USB ports, and supports FTP, ActiveX controls, and a PDF file viewer for enhanced functionality and connectivity.
