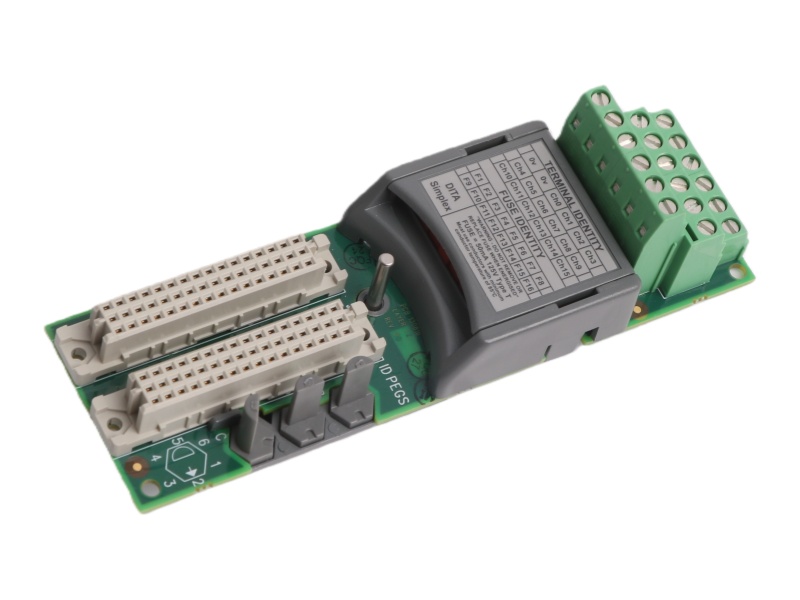

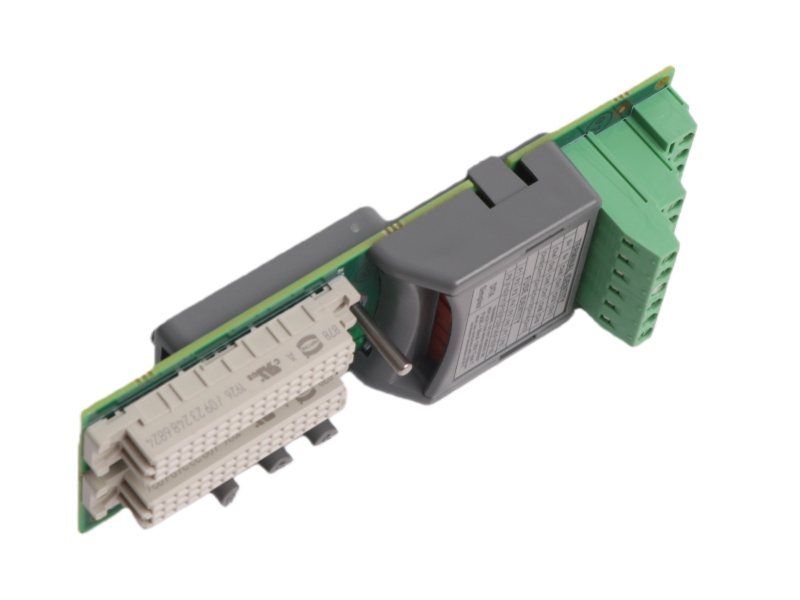

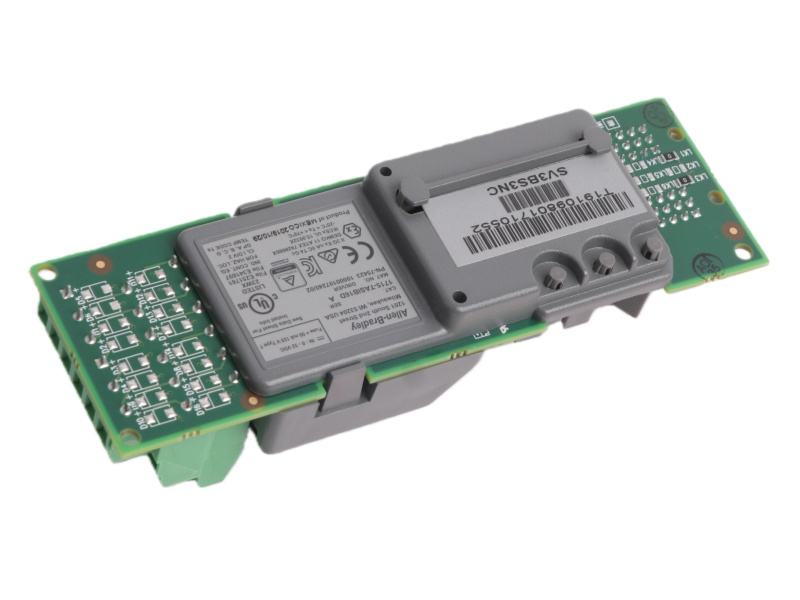

The 1715-TASOF8 1715 Redundant I/O System is a termination assembly designed for the 1715-OB8DE analog output module, providing secure screw terminal connections and supporting 22 to 16 AWG shielded wiring.

Features and benefits

Modular Design: Provides easy, secure field wiring termination for the analog output module.

Screw Clamp Terminals: Feature a 0.5 N-m torque specification for reliable and vibration-resistant connections.

Specific Compatibility: Designed exclusively to support the 1715-OB8DE analog output module.

Shielded Wire Support: Accepts 22 to 16 AWG shielded cable for effective noise reduction in industrial environments.

Low Power Consumption: Has a maximum power dissipation of only 3.6 Watts for efficient system operation.

Component Integrity: Ensures signal integrity and physical protection between the I/O module and field devices.

FAQ

Q1: What type of device is the 1715-TASOF8, and what system is it part of?

A1: It is a termination assembly specifically designed for use with the Allen-Bradley 1715 Redundant I/O system, providing the field wiring interface.

Q2: What specific I/O module is this termination assembly designed to support?

A2: It is designed to connect field wiring to the 1715-OB8DE 8-channel analog output module.

Q3: What are the key environmental ratings that make it suitable for industrial floors?

A3: It has an operating temperature range of -13 to 158°F, high vibration tolerance (2g, 10-500 Hz), and protection against moisture and dust.

Q4: What is crucial to know about wiring and installing this termination assembly?

A4: It accepts 22-16 AWG shielded wire, and terminal screws must be torqued to exactly 0.5 N-m using a 0.4x2.0mm flathead screwdriver to prevent damage.

Q5: What electrical protections does this assembly offer?

A5: It provides high immunity to radiated/conducted RF, surge transients, and electrostatic discharge (ESD), and includes a 5 Amp fuse for protection.
