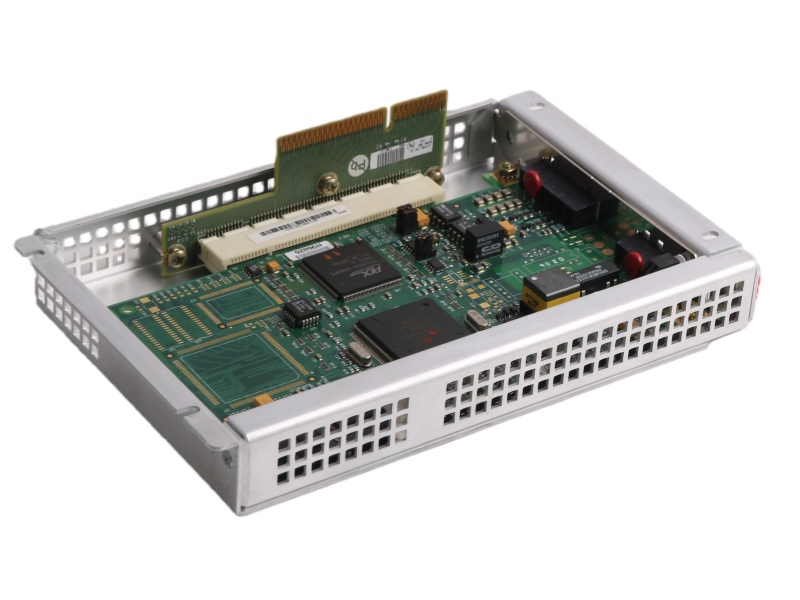

The AB 2711P-RN6 Panelview Plus 700 to 1500 Dh Plus Rio Module is a DH+/RIO/DH-485 communication module designed for PanelView Plus and PanelView Plus 6 terminals. It provides dual-protocol connectivity and status LED indicators for reliable industrial network integration.

Features and benefits

Protocol Support: Provides dual-protocol connectivity supporting DH+, RIO, and DH-485 industrial networks for versatile communication.

Terminal Compatibility: Compatible with PanelView Plus, PanelView Plus CE, and PanelView Plus 6 operator terminals (700-1500 screen size range).

Port Configuration: Features one DH+/RIO port and one DH-485 port with separate Phoenix connectors for independent network access.

Diagnostic Indicators: Equipped with LED status indicators that visually display network status, errors, and operational states for easy monitoring.

Network Performance: Supports long-distance communication up to 10,000 ft (DH+/RIO) and daisy-chain topology for flexible network layouts.

Functional Capabilities: Enables remote programming, data acquisition, program upload/download, and supervisory control for efficient system management.

FAQ

Q1: What is the primary function of the Allen-Bradley 2711P-RN6 module?

A1: The 2711P-RN6 is a DH+/RIO/DH-485 communication adapter that provides dual-protocol connectivity for PanelView Plus and PanelView Plus 6 operator terminals.

Q2: Which PanelView terminals are compatible with the 2711P-RN6?

A2: It is compatible with PanelView Plus, PanelView Plus CE, and PanelView Plus 6 terminals with 7-inch to 15-inch screens (700-1500 series).

Q3: What types of ports does the 2711P-RN6 provide?

A3: It offers one DH+/RIO port and one DH-485 port, both using Phoenix-style connectors for reliable industrial communication.

Q4: What diagnostic features does the module offer?

A4: The module includes LED status indicators that show network status, errors, and operational states such as online/offline status and self-test results.

Q5: What are the key communication capabilities of this module?

A5: It supports remote programming, data acquisition, supervisory control, and program upload/download, connecting up to 32 devices on networks up to 10,000 feet in length.
