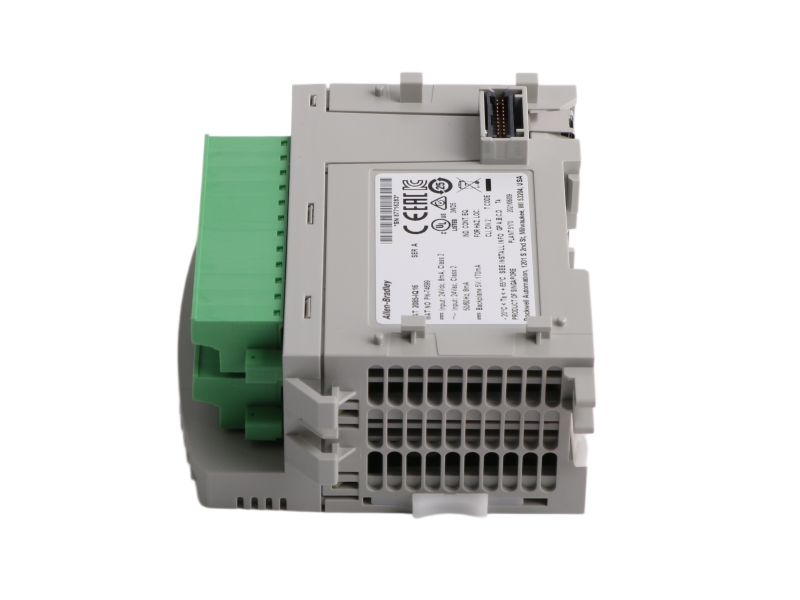

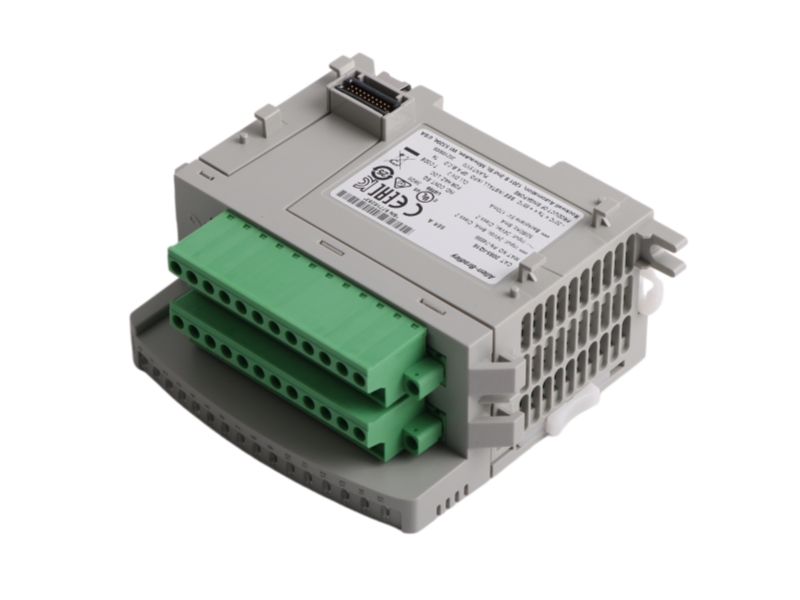

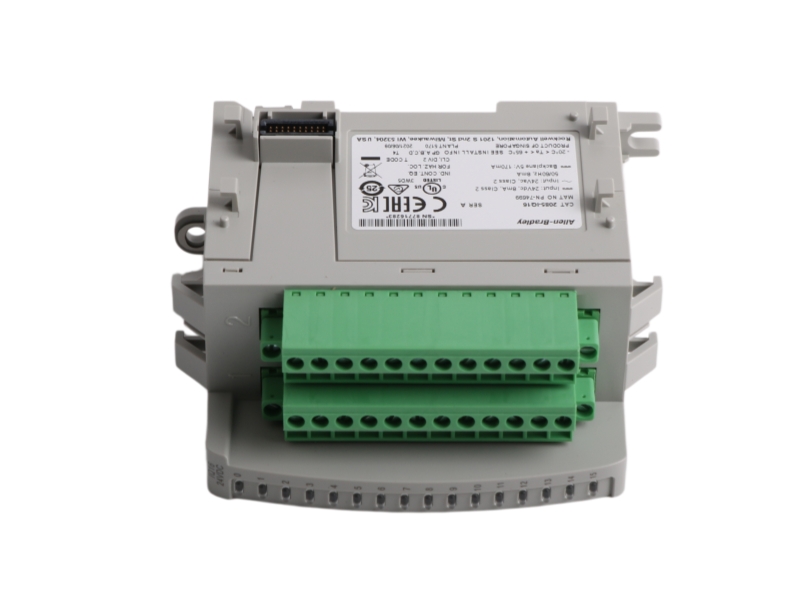

The Allen-Bradley 1769-IQ16 is a 16-point digital input module for CompactLogix systems, designed for reliable 24V DC signal detection in industrial automation applications with surge-resistant performance.
SPECIFICATION
• Input Configuration
The Allen-Bradley 1769-IQ16 is a 16-point digital input module (8 points per group) supporting 24V DC sink/source operation, designed for CompactLogix systems.
• Electrical Performance
Operating range is 10–30V DC, with 8 ms input delay, max 1.5 mA off-state current, and 3.55 W heat dissipation for stable industrial signal processing.
• Isolation & Protection
Provides 1200V AC dielectric isolation between input points and bus, ensuring reliable reinforced insulation and safe operation in industrial environments.
• Physical & Installation
Compact DIN rail or panel mount design (118 × 35 × 87 mm, 270 g), with flexible wiring support (22–14 AWG) and secure screw torque specifications.
- • Hazardous Location Approval
The Allen-Bradley 1769-IQ16 is UL listed for Class I, Division 2 hazardous locations (Groups A, B, C, D), ensuring safe operation in explosive industrial environments.
-
• Global Compliance
Certified under CE and UKCA directives, meeting EN 61131-2 standards for programmable controllers used in industrial automation systems. -
• EMC & Immunity Standards
Complies with EN 61000-6-2 and EN 61000-6-4, providing strong immunity and low emission performance in electrically noisy environments. -
• RoHS & Regional Certifications
Fully RoHS compliant (EN IEC 63000) and approved under RCM and KC regulations, supporting global industrial deployment and environmental safety requirements.
