V18345-1010521001 Overview

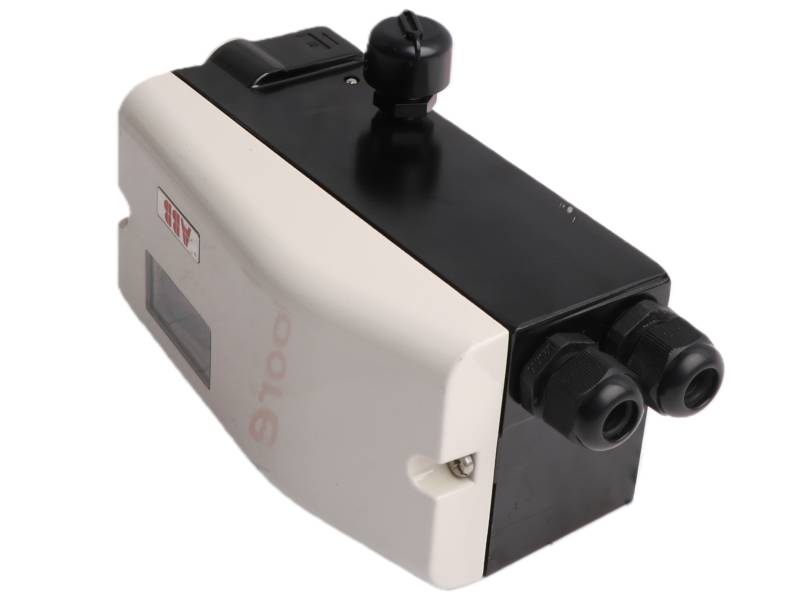

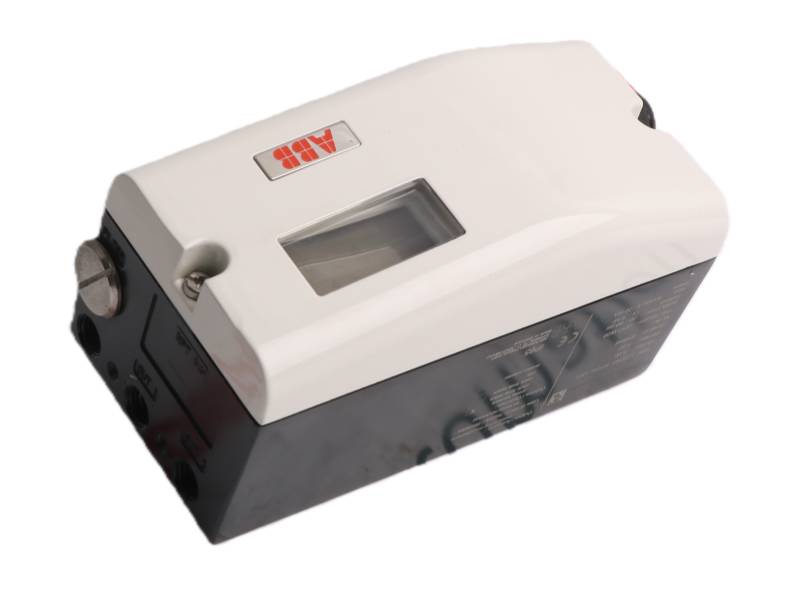

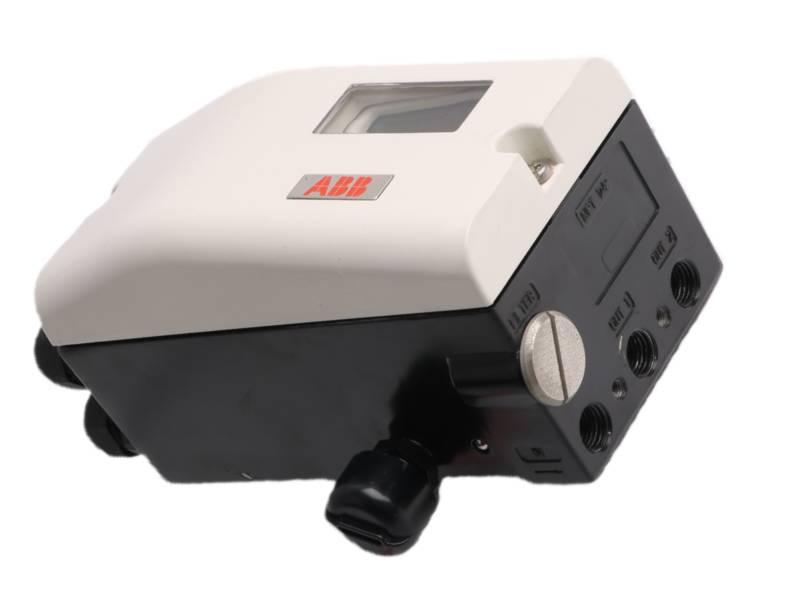

The TZIDC Electro-Pneumatic Positioner  ABB V18345-1010521001 is a TZIDC series electronic positioner with HART communication for precise 4-20mA control of both linear and rotary pneumatic actuators.

Technical Specifications of ABB V18345-1010521001

• Series & Model: Part of the ABB TZIDC positioner series.

• Enclosure: Aluminum housing rated for IP65 protection.

• Input Signal: 4-20 mA with HART protocol via LKS adapter.

• Pneumatic Function: Double-acting actuator with fail-freeze safety.

• Connection Ports: Electrical (1/2-14 NPT) and pneumatic (1/4-18 NPT).

• Feedback: Provides plug-in 4-20 mA analog feedback.

FAQ

Q1: What type of actuator is the V18345-1010521001 designed for?

A1: It is configured for double-acting pneumatic actuators with a fail-freeze safety function.

Q2: What is its main input signal and communication protocol?

A2: Its primary input is a 4-20 mA analog signal with HART communication capability.

Q3: Does this model provide position feedback?

A3: Yes, it includes a plug-in 4-20 mA analog feedback module for position monitoring.
