V18345-1010221001 Overview

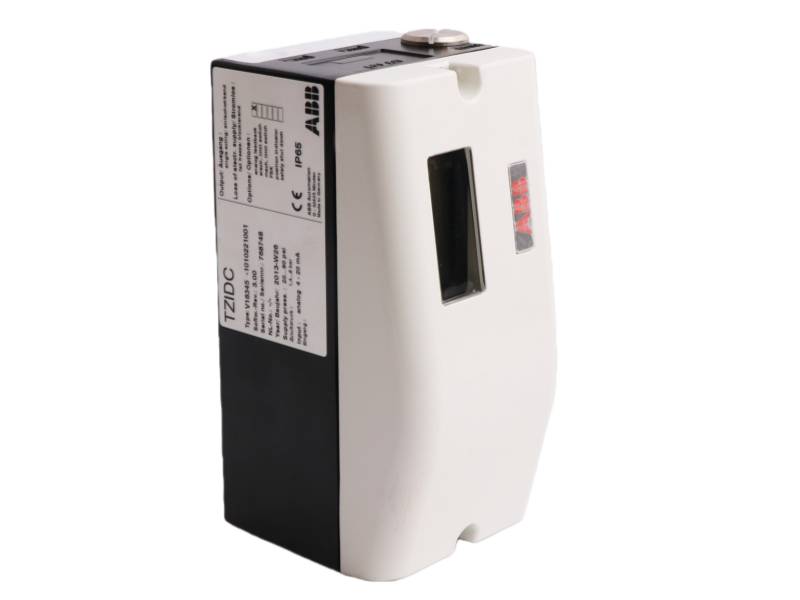

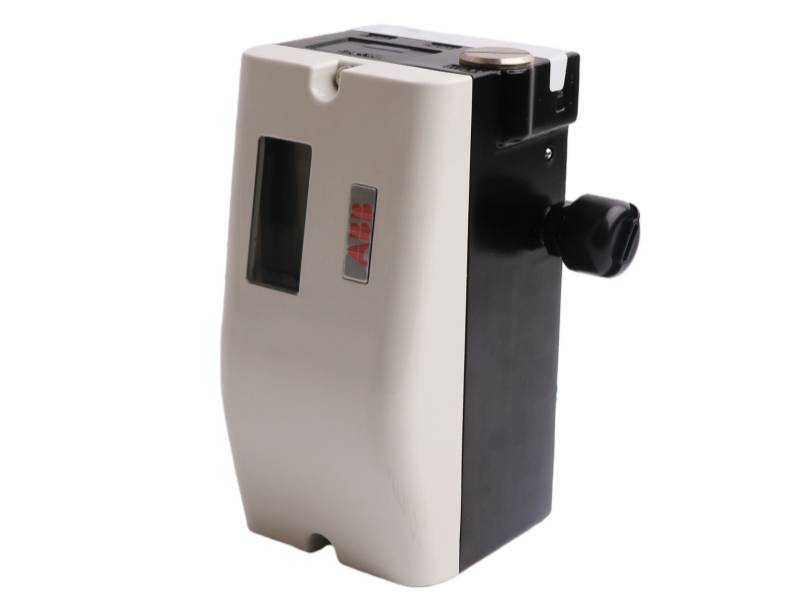

The ABB TZIDC Electro-Pneumatic Positioner V18345-1010221001 is a TZIDC series positioner featuring a compact, modular design for pneumatic actuators, with automatic parameter tuning and versatile fail-safe pneumatic control options.

Technical Data Summary of  V18345-1010221001

• Mounting Standards: Supports lateral mounting per DIN/IEC 534 (NAMUR) and direct attachment per VDI/VDE 3845.

• Actuator Compatibility: Designed for use with both linear and rotary pneumatic actuators.

• Attachment Kits: Supplied as complete sets but exclude air pipes and screwed connections.

• Integral Mounting Option: Available as a variant for direct, internal integration with control valves.

• Shaft Coupling: Requires a separate adapter for connecting to rotary actuator shafts.

• Custom Solutions: Offers special actuator-specific mounting options upon request.

FAQ

Q1: What is the main function of the ABB V18345-1010221001 device?

A1: It is an electronically configurable positioner (TZIDC series) designed to accurately control pneumatic linear or rotary actuators.

Q2: How does it control the actuator?

A2: It uses a proven I/P converter and a 3/3-way valve to proportionally translate an electrical signal into precise pneumatic pressure for actuator movement.

Q3: What is a key setup benefit of this positioner?

A3: It features fully automatic determination of control parameters and adaptation to the final control element, saving commissioning time and optimizing performance.

Q4: What pneumatic actuator types is it compatible with?

A4: It is available in versions compatible with both single-acting and double-acting actuators.

Q5: What safety functions does it offer?

A5: It provides configurable "fail-safe" (moves to a predefined position) or "fail-freeze" (holds last position) safety functions upon failure.
