ABB TY801K01 3BSE023607R1 8pcs Shunt Stick TY801

Inquiry now

TY801K01 3BSE023607R1 Product datasheet

Model number	TY801K01 3BSE023607R1
Manufacture	ABB
System	DCS
Condition	Brand New
Country of Origin	SWEDEN
HS Code	8537101190
After-Sales Support	12-months

TY801K01 3BSE023607R1 Overview

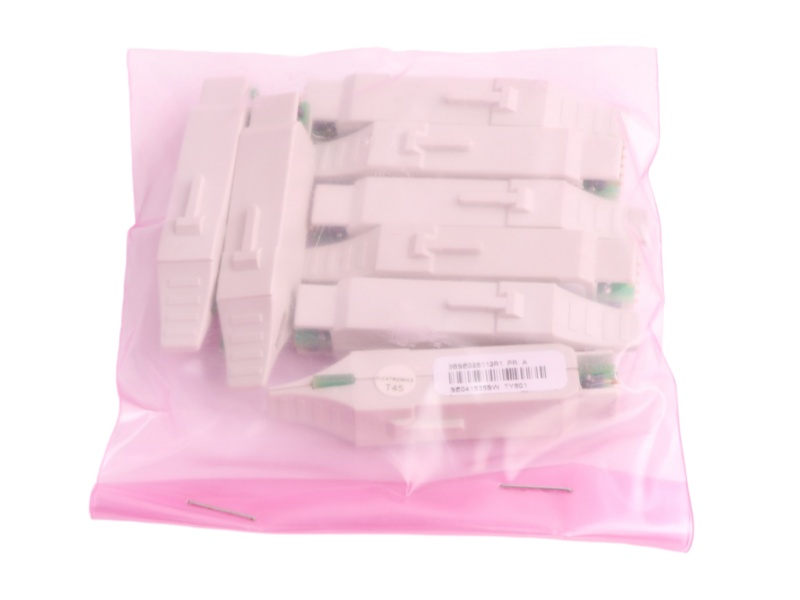

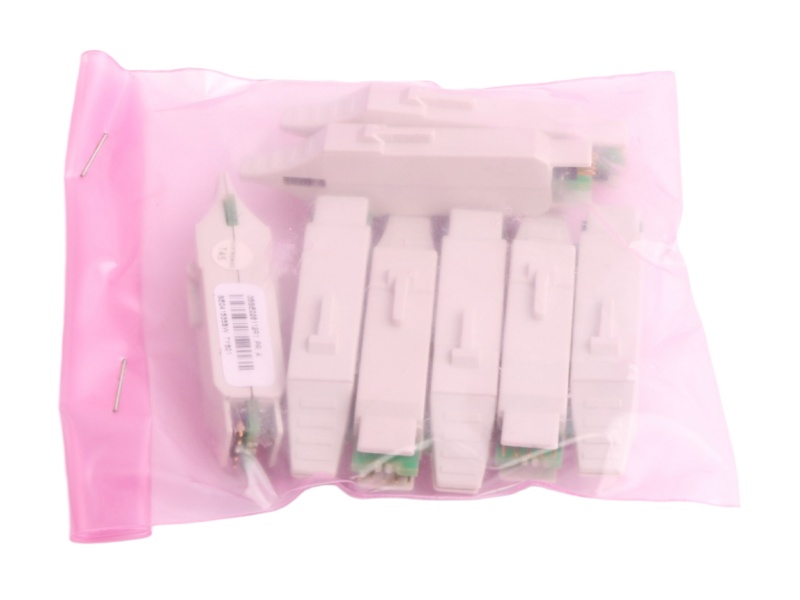

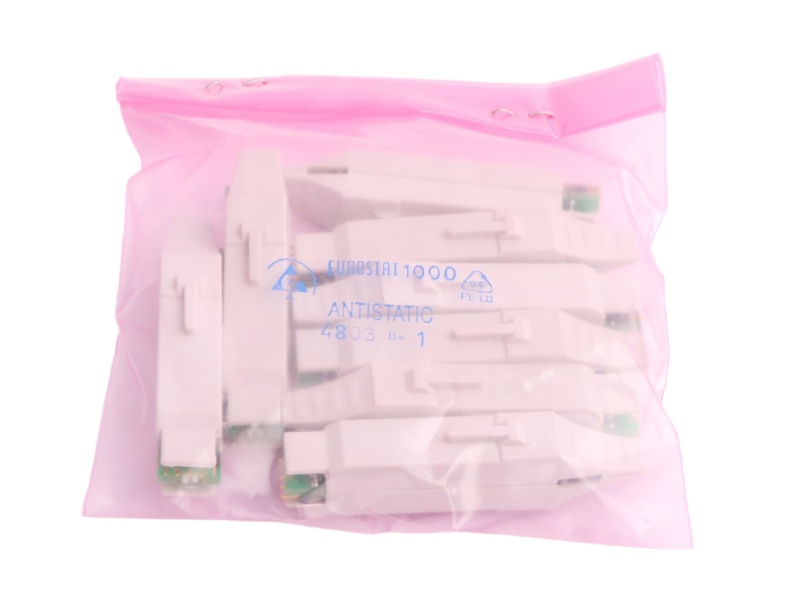

The ABB 8pcs Shunt Stick TY801 TY801K01 3BSE023607R1 is a set of eight 125+125 ohm shunt sticks used for configuring AI845 and AI880A modules on S800 termination units.

High-Resolution Measurement

Configuration Tool: A set of eight shunt sticks for configuring S800 modules.

Resistor Value: Each stick contains a 125 + 125 ohm shunt resistor.

Compatibility: Designed for use with the AI845 and AI880A analog input modules.

Mounting Location: Used on specific termination units (TU834, TU844, TU845, TU854).

System Integration: Part of the S800 I/O system mechanics.

Voltage Rating: Rated for use in circuits up to 50V DC.
