SD822 3BSC610038R1 Overview

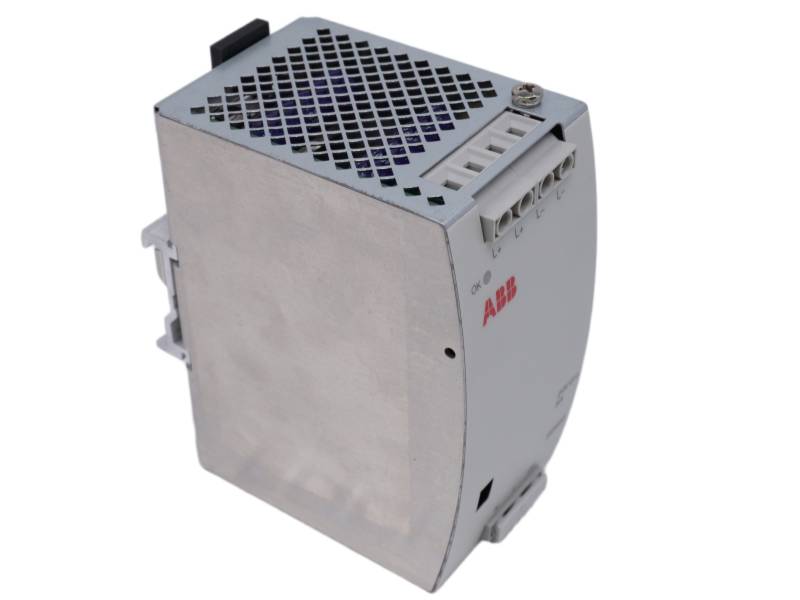

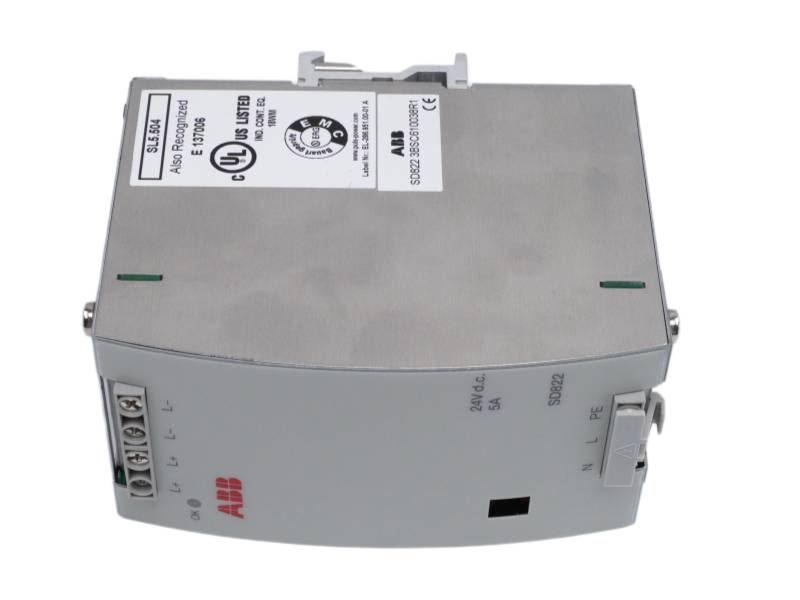

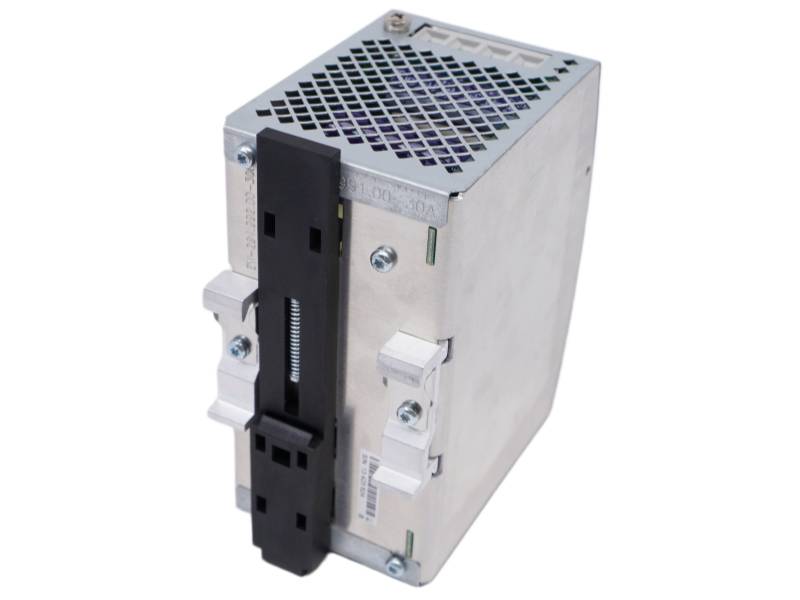

The ABB Power Supply Module SD822 3BSC610038R1 is a 230VAC power supply delivering 24VDC at 5A. Compact and lightweight (0.7 kg), it operates at 0–50°C with 150 VA typical consumption.

Environment & Certification

• Operating Temperature: 0 to +50°C, suitable for industrial control environments

• Storage Temperature: -40 to +70°C, allowing safe transport and long-term storage

• Humidity Tolerance: 5–95% RH non-condensing, reliable in humid conditions

• Power Input: Accepts 100–120V AC or 230V AC input, flexible global use

• Power Consumption: 150 VA typical, energy-efficient operation

• Compliance: RMA return policy under T&C; no specific certification listed, designed for ABB system integration

FAQ

Q1. What is the input and output voltage of the SD822?

A1. It accepts 100–120V AC or 230V AC input and provides 24V DC output at 5A.

Q2. What is the power consumption of this module?

A2. Typical power consumption is 150 VA.

Q3. What are the operating and storage temperature ranges?

A3. Operating temperature is 0 to +50°C; storage temperature is –40 to +70°C.

Q4. What is the weight of the ABB SD822 3BSC610038R1?

A4. Product net weight is 0.7 kg; estimated shipping weight is 0.6 kg.

Q5. Is there a return policy for replaced parts?

A5. Yes, replaced parts with RMA must be returned per T&C, otherwise extra charges apply.
