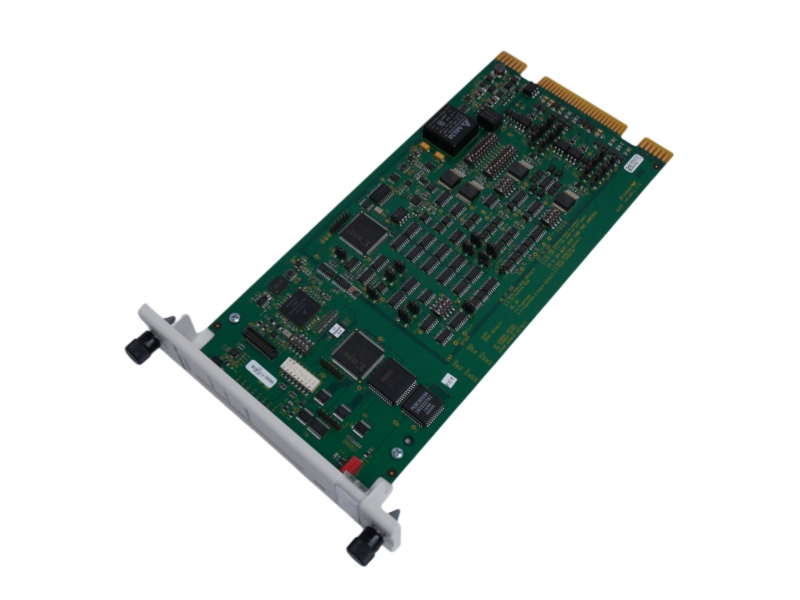

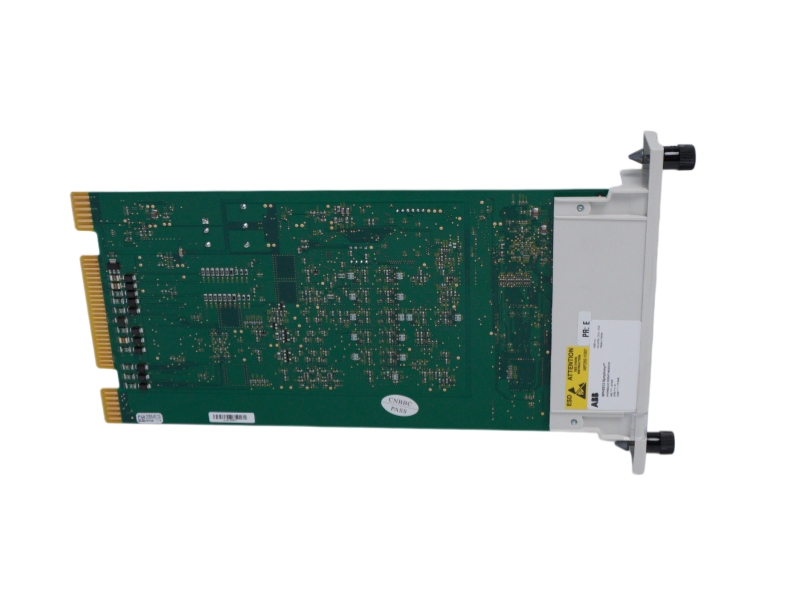

ABB SPDSM04 is a 16-channel pulse input module for Symphony Plus Harmony rack I/O applications. ABB material identifies input ranges of 0 to 50 kHz, 4 to 6 VDC and 21.6 to 27 VDC. The module supports pulse-count, frequency-count and totalization functions through the appropriate controller configuration. It is suited to maintenance replacement, rotating-equipment pulse acquisition, production counting and migration assessment where existing field signal characteristics must be retained. Before ordering, confirm the complete model, channel signal type, termination, field wiring, function-code strategy, rack location and controller database.
| Manufacturer | ABB |
|---|---|
| Complete Part Number | SPDSM04 |
| Product Type | Harmony Rack 16-Channel Pulse Input Module |
| Series | Symphony Harmony |
| Model Configuration | 16 pulse inputs; 0–50 kHz, 4–6 VDC and 21.6–27 VDC |
| Product Condition | NEW |
| Country of Origin | SWEDEN |
| Compatibility | Harmony rack pulse-input configuration subject to engineering review |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options are reviewed during quotation. |
Confirm signal amplitude, waveform, frequency, termination, shielding, channel allocation, function code, scaling and controller database.
Confirm signal amplitude, waveform, frequency, termination, shielding, channel allocation, function code, scaling and controller database.
ABB identifies 16 pulse inputs with 0–50 kHz, 4–6 VDC and 21.6–27 VDC ranges.
FC102 supports pulse count, FC103 frequency count and FC104 totalization.
No. Verify voltage, waveform, frequency, shielding and termination first.
Provide module labels, field-signal data, termination details and controller configuration.
Worldwide shipping options are reviewed during quotation.
