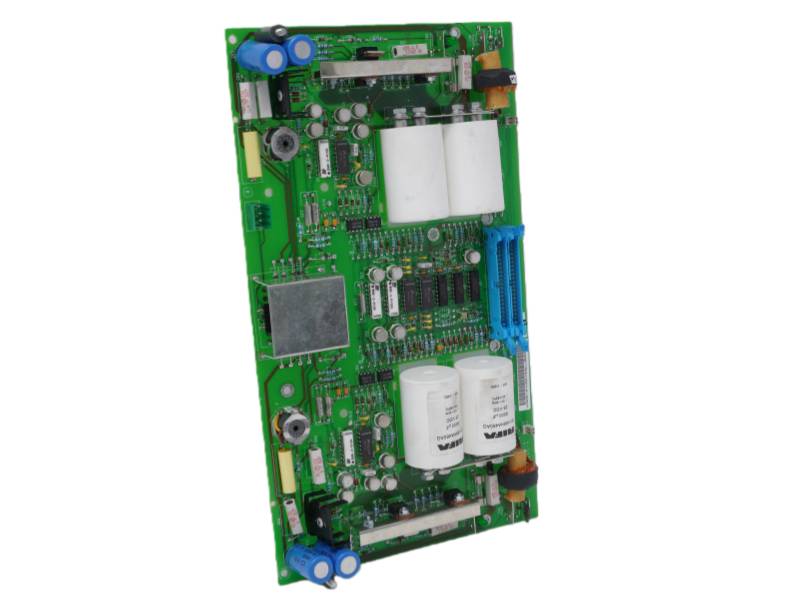

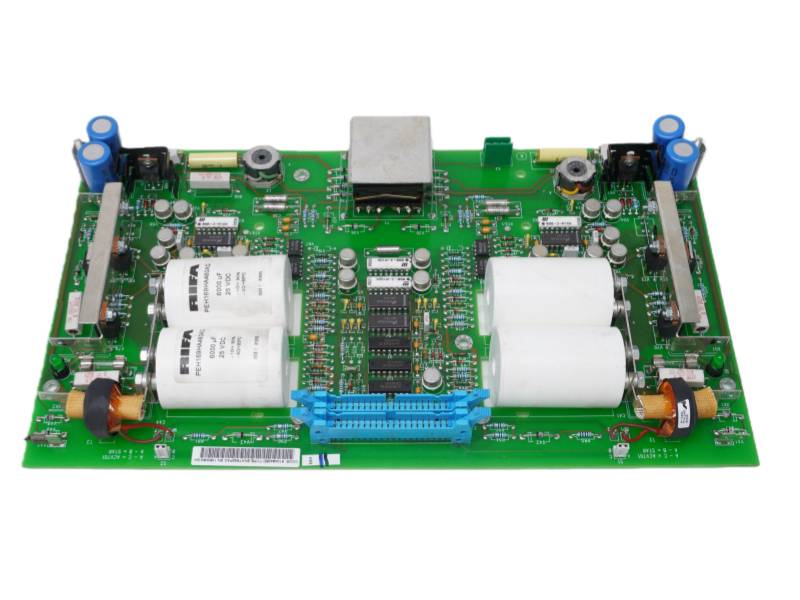

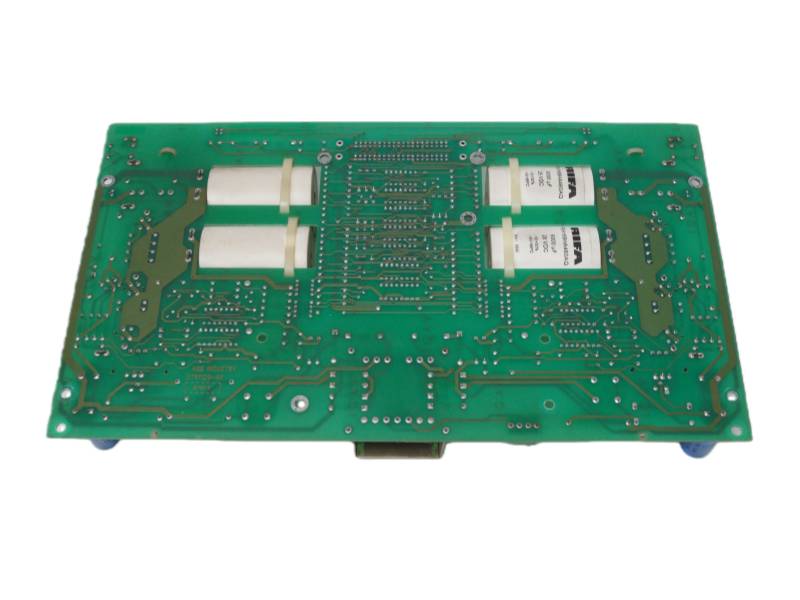

ABB SNAT632PAC 61049428 PAC Pulse Amplifier Board

Inquiry now

SNAT632PAC 61049428 Product datasheet

Model number:	SNAT632PAC 61049428	Module Type：	PAC Pulse Amplifier Board
Manufacture:	ABB	Condition：	Brand New
Range of Product:	ABB	Lead time：	In Stock
Weight:	1.22 kg	HS CODE：	8537101190
Dimension:	24x19x5.3cm	MOQ:	1
Product Origin:	SWEDEN	System：	DCS
Discontinued on:	Active	Communication Service:	Ethernet router

SNAT632PAC 61049428 Functional Description

The SNAT632PAC 61049428 ABB PULSE AMPLIFIER serves as a crucial pulse amplifier board in industrial drive systems, designed to distribute TC link information from the APC to multiple inverters. This robust component supports connectivity with up to four inverters through its advanced optical interface system. The engineering design of module incorporates plastic fiber connectors while maintaining compatibility with glass fiber networks through appropriate distributors.

Operating within a wide voltage range of 19-30 VDC, the ABB SNAT 632PAC 61049428 I/O Memory demonstrates remarkable power efficiency with consumption limited to 1.9 VA. This pulse amplifier board accommodates various fiber optic cable types, supporting maximum distances of 15 meters with standard cables and extending to 25 meters when using extra low attenuation cables. The versatile ABB SNAT632PAC 61049428 ensures reliable signal transmission across different industrial configurations.

Housed in a compact metal enclosure measuring 155×40×72 mm, the SNAT632PAC 61049428 ABB PAC Pulse Amplifier Board provides durable protection in challenging industrial environments. This packaging solution safeguards the internal electronics while maintaining accessibility for installation and maintenance procedures. The standardized dimensions of PAC Pulse Amplifier Board ABB SNAT 632PAC 61049428 facilitate straightforward integration into existing control cabinets and drive systems.

Through its sophisticated optical distribution capabilities and robust construction, the ABB Drives SNAT632PAC 61049428 delivers exceptional performance in industrial automation applications. This pulse amplifier board enables seamless communication between control systems and multiple inverters, supporting efficient drive system operation while maintaining signal integrity across extended distances in manufacturing and processing environments.
