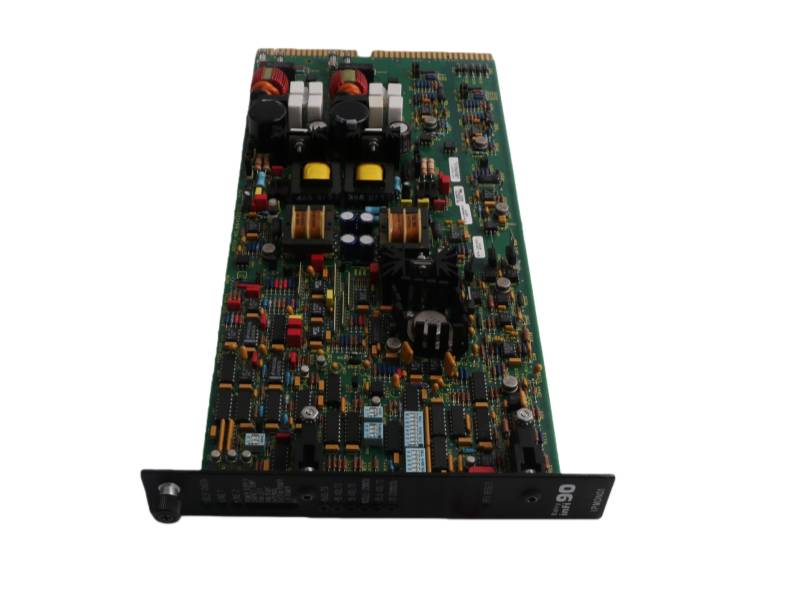

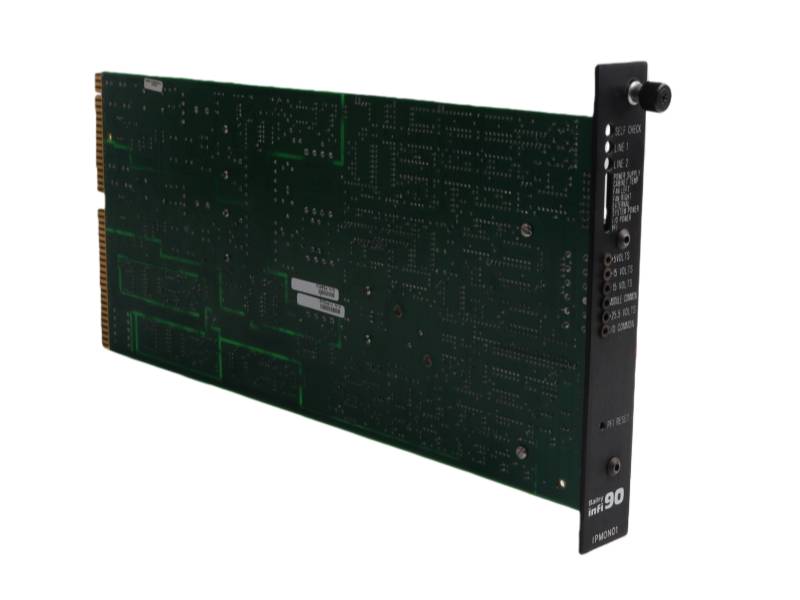

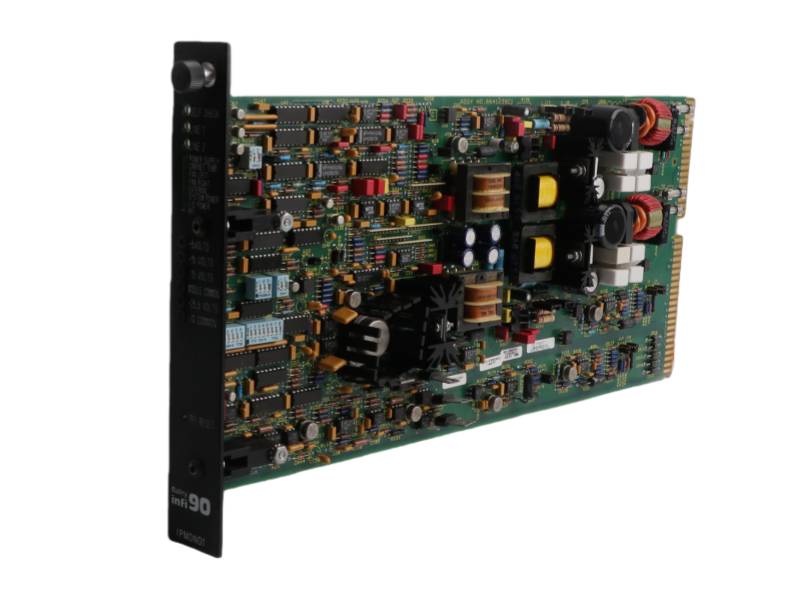

The IPMON01 ABB Monitoring Module serves as a critical monitoring component within the power supply system, featuring diagnostic LEDs that display real-time status information for various bus voltages. This IPMON01 ABB Power Montior Module continuously tracks all system bus voltages including 5, 15, and -15 VDC, along with Harmony bus voltages (24 VDC A and B) and I/O bus voltages (24, 48, and 125 VDC), providing comprehensive power system supervision.

The operational status of the IPMON01 ABB PLC MODULE and other power modules is clearly indicated through their LED indicators, which offer immediate visual feedback on system health. These modules support hot-swappable maintenance, allowing the ABB IPMON01 to be safely removed and replaced while the system remains operational, significantly reducing downtime in critical applications.

Compatibility is an important feature of the system architecture where the ABB Bailey Infi 90 IPMON01 operates. It shares the power module chassis with specific power modules including IPSYS01, IPFLD01, IPFLD24, IPFLD48, and IPFLD125, though certain restrictions apply as IPFLD48 and IPFLD125 modules cannot coexist in the same chassis due to power distribution requirements.

Through its integrated monitoring capabilities, the Power Montior Module ABB IPMON01 enhances system reliability by providing detailed power quality information and status inputs. This functionality makes it an essential component for maintaining stable operation in industrial power distribution systems, ensuring continuous monitoring and quick fault identification across multiple voltage rails.
