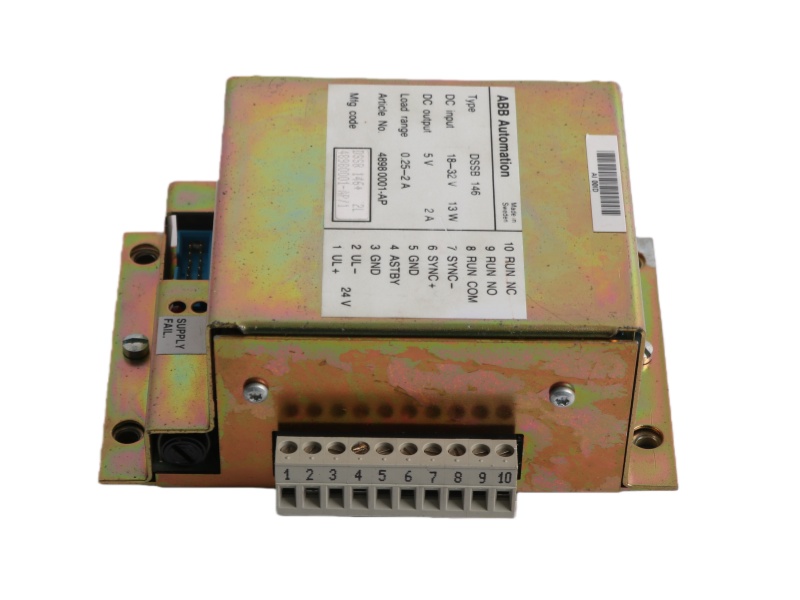

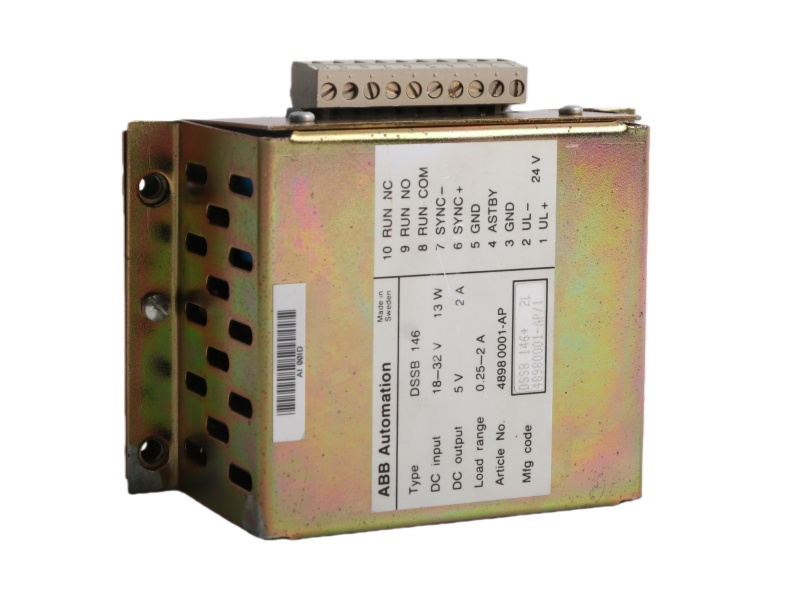

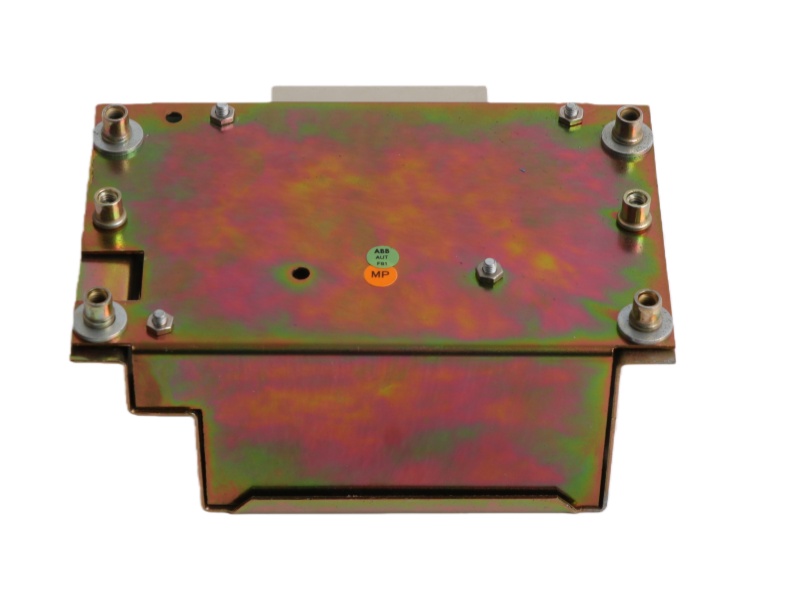

ABB DSSB146 48980001-AP DSSB 146 Battery Module

Inquiry now

DSSB146 48980001-AP Product datasheet

Model number:	DSSB146 48980001-AP	Module Type：	DSSB 146 Battery Module
Manufacture:	ABB	Condition：	Brand New
Range of Product:	ABB	Lead time：	In Stock
Weight:	1.22 kg	HS CODE：	8537101190
Dimension:	24x19x5.3cm	MOQ:	1
Product Origin:	SWEDEN	System：	DCS
Discontinued on:	Active	Communication Service:	Ethernet router

DSSB146 48980001-AP Functional Description

The ABB DSSB146 48980001-AP DC Converter Board is a high-performance DC/DC converter designed for industrial applications, delivering reliable voltage conversion and stable power output for sensitive electronics. It efficiently converts input voltages from 18 VDC to 32 VDC, supporting a 13-watt power rating for consistent performance.

Engineered for flexibility, the ABB Master DSSB146 48980001-AP provides a 5 VDC output at 2 amps, accommodating a load range from 0.25 amps to 2 amps. This versatility makes it suitable for a wide variety of control and automation systems.

The robust design of the ABB DSSB 146 Battery Module DSSB146 48980001-AP ensures dependable operation in demanding environments. Its compact construction and reliable circuitry offer long-term durability, minimizing maintenance needs.

Widely compatible and easy to integrate, the DSSB146 48980001-AP ABB DCS MODULE enhances system efficiency and stability. Its precise voltage regulation and high-quality components make ABB DSSB146 48980001-AP DSSB 146 Battery Module an ideal choice for critical industrial power applications.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

ABB	07PS62R2	ABB	086351-004	ABB	086387-001
ABB	07SK90R1	ABB	086362-001	ABB	08644-005
ABB	07ZE61R302 GJV3074321R302	ABB	086363-001	ABB	086444-005
ABB	07ZE63R302	ABB	086363-002	ABB	087629-001
ABB	086329-003	ABB	086363-002 OSPS2	ABB	0G0010.00-090
ABB	086329-004	ABB	086364-001	ABB	170M6467 3AUA0000062487
ABB	086339-001	ABB	086369-001	ABB	1948013A1
ABB	086348-001	ABB	086370-001	ABB	1948021A1
ABB	086349-002	ABB	086372-001	ABB	1948022A1
ABB	086351-001	ABB	086384-003	ABB	1948024G1

DC/DC converter hardware start-up

See the hardware manual of the DC/DC converter unit or module for the hardwarerelated tasks to be done at start-up.

We assume that you have powered up the control unit of the DC/DC converter and you have a PC with the Drive composer PC tool connected to it. See the chapter

Start-up in the hardware manual of the DC/DC converter for the control unit power up.

• The control unit is powered and you have a PC with Drive composer PC tool connected to the control unit.

• DC/DC converter main circuit is not powered up. If there is a DC switch-disconnector ([Q11.1], option +F286), make sure that it is open. If there is no DC switch disconnector, make sure that the main contactor (Q2) or main breaker (Q1) in the supply unit of the drive is open.

• Energy storage is disconnected from the DC/DC converter
