ABB DO526 S500 Digital Output Module

Inquiry now

ABB · AC500 / S500 I/O

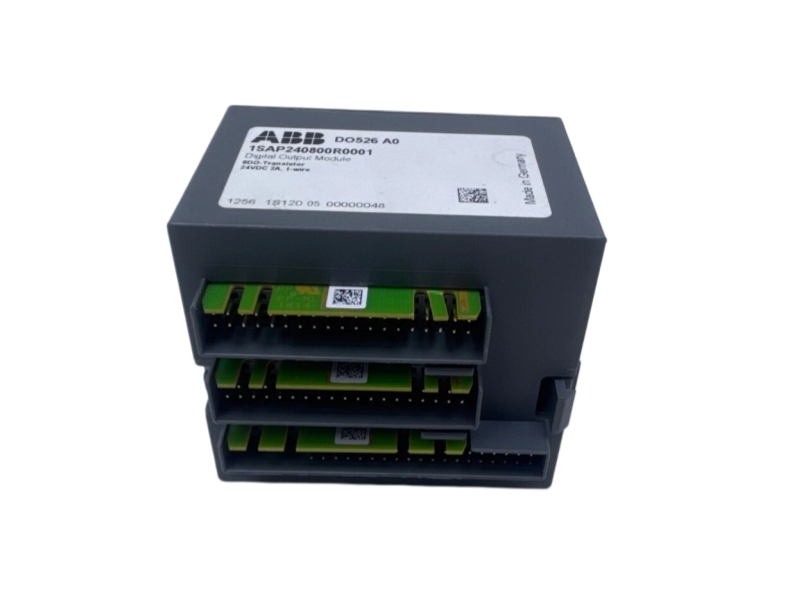

DO526 Digital Output Module

Eight 24 V DC transistor output channels arranged for clear field wiring, grouped isolation and AC500 control expansion.

Product Overview

ABB DO526 is an S500 digital output module for centralized AC500 expansion or decentralized S500 I/O stations. The exact module provides eight 24 V DC transistor outputs rated at 2 A and uses one-wire field connections. Its outputs are arranged in two groups and are galvanically isolated by group. Status LEDs support rapid channel and process-supply checks. For replacement or new-panel procurement, verify the full DO526 designation, ABB order number, TU542 terminal unit, field power distribution, external protection and the original equipment label before ordering.

Eight-Channel Output Rail

O024 V DC

O124 V DC

O224 V DC

O324 V DC

O424 V DC

O524 V DC

O624 V DC

O724 V DC

Outputs O0–O7 are divided into two galvanically isolated groups. ABB specifies no internal short-circuit or overload protection; coordinate external protection with the field circuit design.

Key Product Information

Manufacturer	ABB
Complete Part Number	DO526

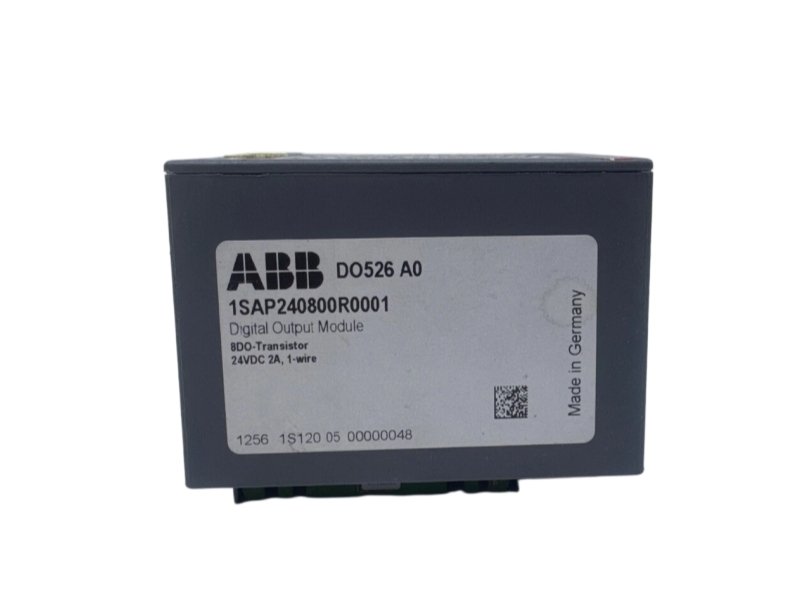

ABB Order Number	1SAP240800R0001
Product Type	S500 digital output module
Series	AC500 / S500 I/O
Output Channels	8 digital transistor outputs
Output Rating	24 V DC / 2 A per output
Connection Method	1-wire
Output Groups	2 galvanically isolated groups
Required Terminal Unit	TU542
Process Supply Voltage	24 V DC
Built-in Output Protection	No internal short-circuit or overload protection

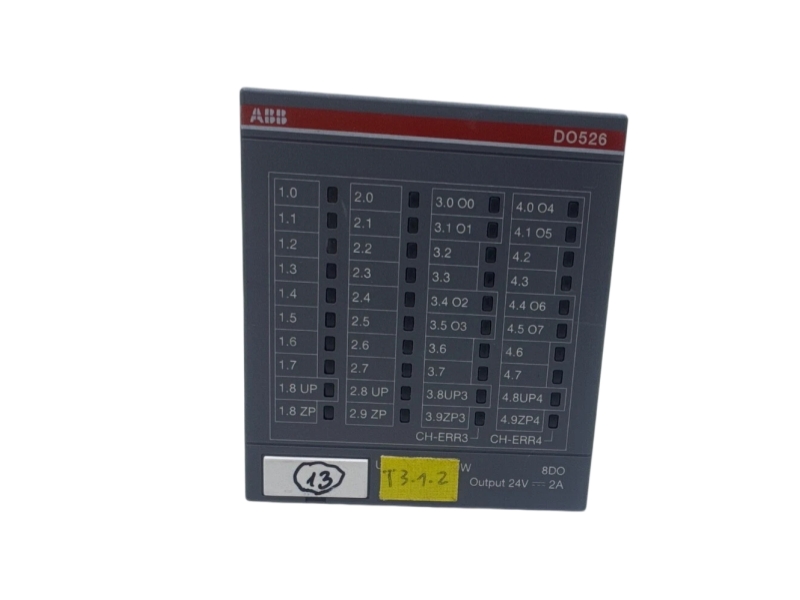

Status Indication	8 yellow output LEDs, 3 green supply LEDs and 2 red error LEDs
Weight	Approx. 135 g without terminal unit
Product Condition	NEW
Warranty	With 1 year warranty

Signal and Power Path

Controller / Interface

The I/O bus exchanges process data with the AC500 CPU or communication interface.

DO526 Module

Eight commanded output states are displayed by yellow channel LEDs.

TU542 Terminal Unit

The terminal unit carries the process-supply and field wiring connections.

Field Loads

External protection and load ratings must match each connected circuit.

Installation Focus

Use the specified TU542 terminal unit.
Verify 24 V DC process supplies UP, UP3 and UP4.
Observe group isolation and field-circuit separation.
Provide external output-channel protection.
Maintain unobstructed natural convection cooling.

Diagnostic Focus

Check eight yellow output-state LEDs.
Confirm the three green process-supply indicators.
Investigate red channel-error indications.
Compare commanded states with measured field voltage.
Inspect wiring and protection before module replacement.

Applications

Solenoid-valve switching

Contactor and relay control

Indicator and alarm outputs

Machine auxiliary circuits

Centralized AC500 I/O expansion

Decentralized S500 output stations

Compatibility and Revision Checklist

✓ Complete DO526 designation

✓ ABB order number 1SAP240800R0001

✓ TU542 terminal unit

✓ 24 V DC field supply

✓ 2 A output load rating

✓ External protection arrangement

✓ Output-group wiring

✓ CPU or interface-module support

✓ Original module label photographs

DO526 FAQ

How many outputs does DO526 provide?

ABB specifies eight 24 V DC transistor outputs, numbered O0 through O7.

What current can each output switch?

The exact DO526 ordering description specifies 2 A per digital output under the documented operating conditions.

Does DO526 include internal short-circuit protection?

No. ABB documentation states that the output groups do not provide internal short-circuit or overload protection, so the field design must include appropriate external protection.

Which terminal unit is required?

ABB ordering data pairs the standard DO526 with the TU542 spring-terminal I/O unit.

Can DO526 be used in centralized and decentralized I/O?

Yes. ABB documents it for centralized AC500 CPU expansion and decentralized S500 communication-interface stations.

What warranty is offered?

This listing is supplied with 1 year warranty under the written quotation terms.

Request a DO526 Quotation

Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
