ABB S500-eCo 8-CHANNEL DIGITAL INPUT
Compact 24 V DC or 24 V AC input acquisition with module-wise isolation.

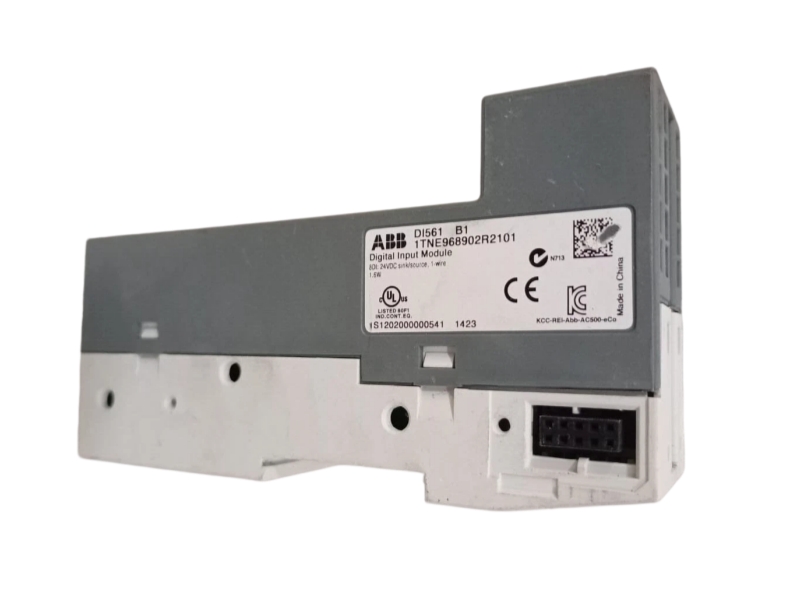

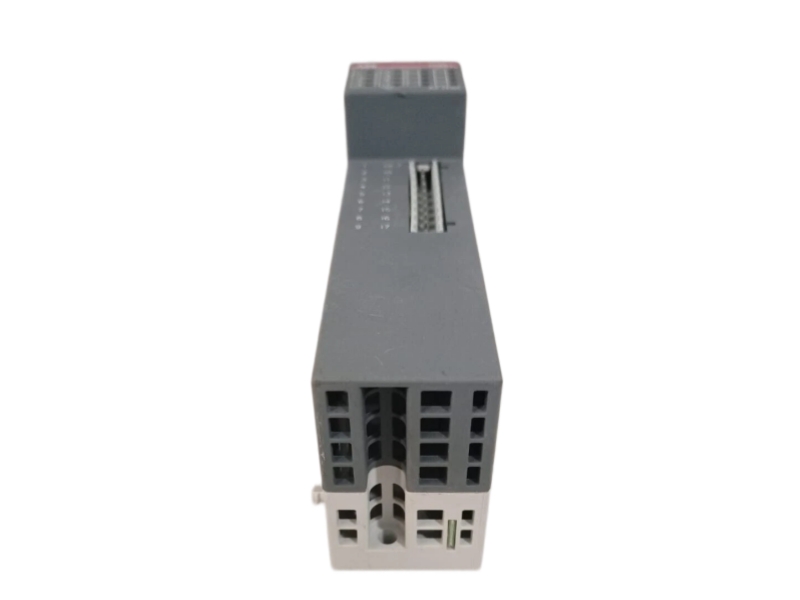

ABB DI561 is a compact digital input module in the S500-eCo I/O range. ABB identifies it by order code 1TNE968902R2101 and documents eight digital inputs for 24 V DC or 24 V AC signals in one group with module-wise galvanic isolation. Eight yellow LEDs indicate the input states, and field signals connect through a removable 9-pin terminal block ordered separately. DI561 supports compact centralized or decentralized input expansion. Before ordering, verify the complete code, signal voltage, terminal-block type, channel wiring, station configuration and original product label.
| Manufacturer | ABB |
| Complete Part Number | DI561 |
| Official Order Code | 1TNE968902R2101 |
| Product Type | Digital input module |
| Series | S500-eCo |
| Official Catalog Weight | 0.113 kg |
| Product Condition | NEW |
| Warranty | With 1 year warranty |
| Shipping | Quoted after quantity, destination and packaging review. |
| Area | Documented Function | Project Check |
|---|---|---|
| Input architecture | 8 digital inputs in one group. | Confirm channel allocation and the shared input common. |
| Signal level | 24 V DC or 24 V AC digital inputs. | Match the actual sensor voltage and wiring design. |
| Isolation | The module is galvanically isolated from the remaining system. | Preserve the documented isolation boundary. |
| Connection | Removable 9-pin input terminal block. | Confirm screw or spring terminal type and cable entry. |
ABB documents eight digital inputs in one group.
The official ordering data identifies 24 V DC or 24 V AC digital inputs.
The confirmed order code for DI561 is 1TNE968902R2101.

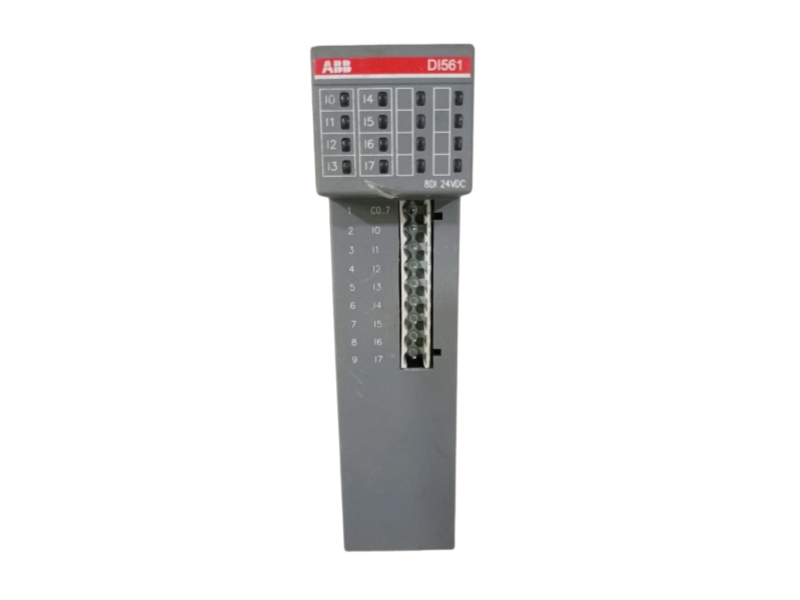

Yes. Eight yellow LEDs indicate the input signal states.
ABB documents a removable 9-pin terminal block ordered separately.
This listing is prepared as NEW with 1 year warranty under the written quotation terms.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
A documented workflow supports model verification, quotation review, protective packing and international shipment coordination.
Stockoems is operated by Apter Power Limited and is an independent reseller of industrial automation products. Manufacturer names and trademarks are used for identification purposes only. Our team reviews the requested part number and quantity, confirms the quoted condition, requests label photos when useful, prepares protective packaging and supplies shipment tracking and customary export documentation. Availability and dispatch timing are stated only in the written quotation.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Each entry is an independent product listing and is not presented as a direct replacement. Confirm the manufacturer, complete part number, revision and compatibility before ordering.
