ABB Bailey · INFI 90
Sixteen isolated field-status inputs for a documented INFI 90 installation.

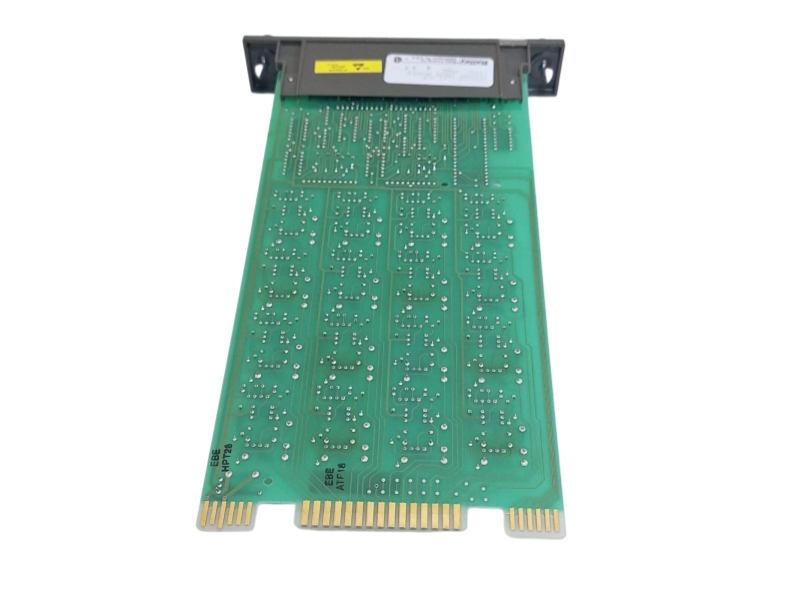

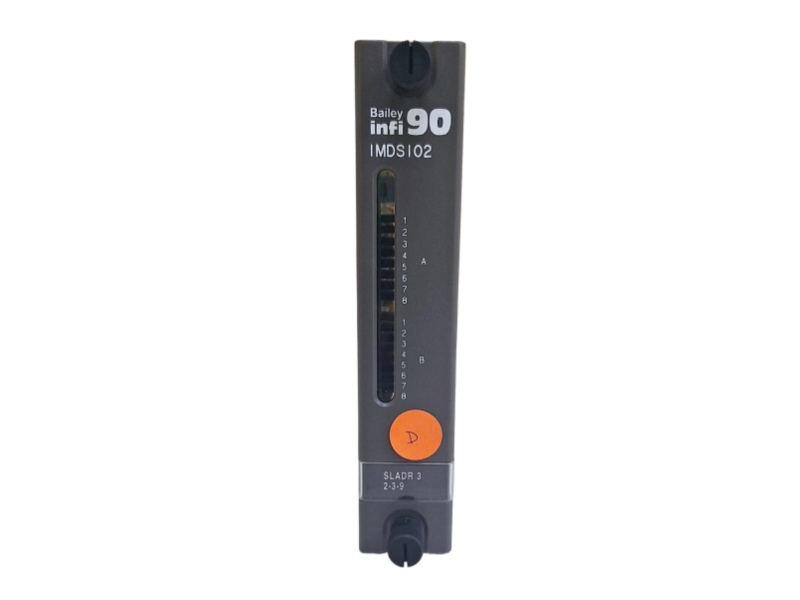

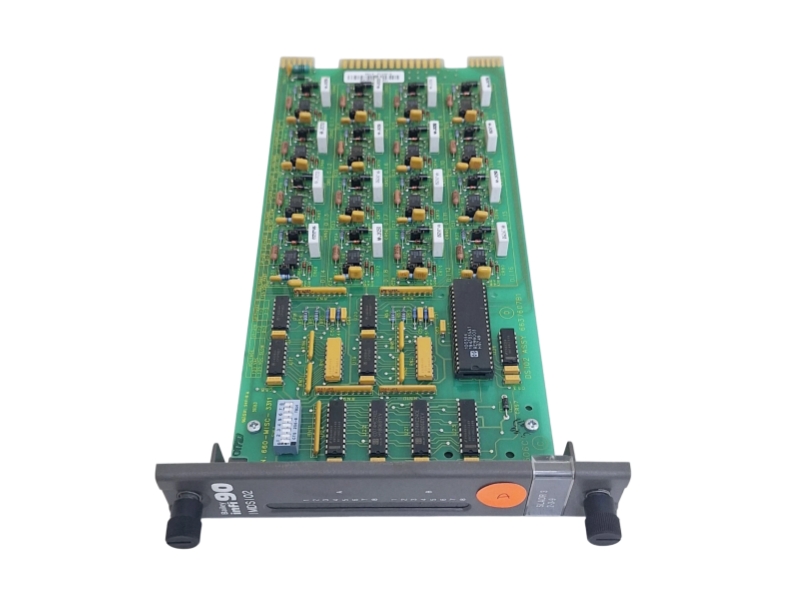

ABB Bailey IMDSI02 is a 16-channel digital input slave module used in INFI 90 control-system architectures. It receives discrete field status signals and is documented for 24 VDC, 125 VDC and 120 VAC input ranges, subject to the correct system and termination arrangement. Its isolated inputs support process and equipment status monitoring within an engineered installation. This module is relevant to repair, planned shutdown maintenance and migration surveys where the installed wiring and voltage must be preserved or reviewed. Before ordering, confirm the exact module code, input voltage, termination unit, channel commons, wiring polarity, controller configuration and original equipment label.
| Manufacturer | ABB / Bailey |
|---|---|
| Complete Part Number | IMDSI02 |
| Product Type | INFI 90 16-Channel Digital Input Slave Module |
| Series | INFI 90 |
| Model Configuration | 16 digital inputs; 24 VDC, 125 VDC or 120 VAC signal ranges |
| Product Condition | NEW |
| Compatibility | Confirm input voltage, termination unit, shared commons, wiring polarity and installed system configuration. |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options are confirmed in the written quotation. |
Verify the exact input-voltage version, termination unit and the shared-common arrangements for inputs 7–8 and 15–16. A model appearing in a migration map must not be treated as a direct replacement without engineering review.
Availability is checked against the requested quantity and NEW condition before a quotation is issued.
Documented ranges include 24 VDC, 125 VDC and 120 VAC; confirm the installed version and field supply before ordering.
No. Inputs 7–8 and inputs 15–16 form shared-common pairs at the termination unit and each pair must use the same voltage source.
Provide the termination-unit code, field voltage, wiring diagram, controller information and clear label photographs.
Do not assume so. Migration mappings require engineering review of wiring, voltage, termination and configuration.
IMDSI02 is offered with 1 year warranty, governed by the written quotation terms.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Support for IMDSI02 focuses on documentary verification, careful handling and clear written commercial terms.
For IMDSI02, provide field voltage, termination-unit code and wiring details for the two shared-common input pairs.
