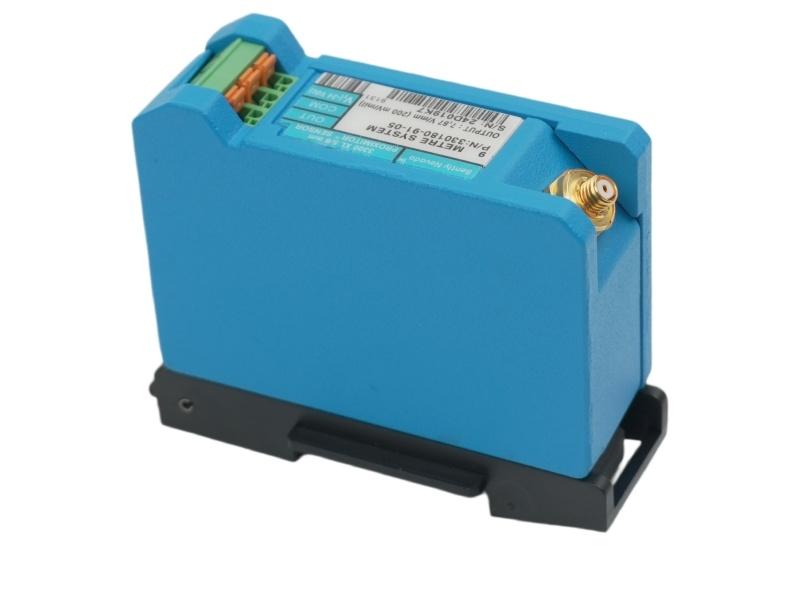

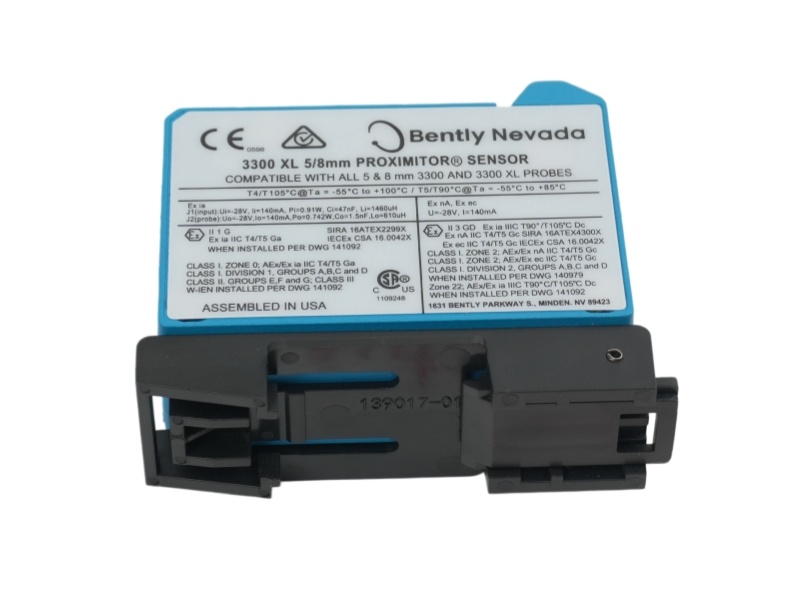

The 330180-X1-05 MOD:143416-02 is a Bently Nevada high-performance proximity interface module incorporating advanced eddy current sensing circuitry. Fully compatible with 3300 XL 8mm and 5mm proximity probes, this unit works seamlessly with industrial monitoring systems to deliver high RFI/EMI immunity and stable dynamic vibration logging under severe industrial conditions.
Competitive Advantage
- Advanced RFI/EMI Immunity: Enhances signal integrity in high-density environments without needing special metallic housings or separate isolator plates.
SpringLoc Terminal Strips: Eliminates screw-type clamping mechanisms that can loosen, facilitating faster and more robust field wiring connections.

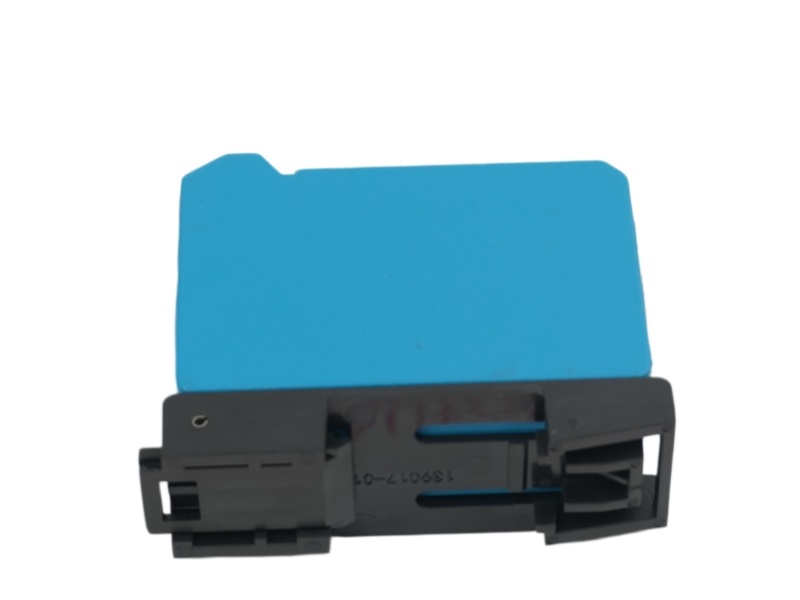

High-Density DIN-Rail Assembly: Designed with a space-saving physical packaging footprint ideal for modern high-density cabinet installations.
Custom Factory Modification: Pre-configured with the specialized 143416-02 modification to provide tailored accuracy and reliable machinery protection.
System Compatibility and Alternative Models
System Compatibility
- Pairs with Bently Nevada 3300 XL 8mm or 5mm proximity probes.
Connects directly to matching 3300 XL extension cables.
Interfaces seamlessly with the Bently Nevada 3500 Machinery Protection System.
Alternative Models & Differences
- 330180-51-05: Standard 5-meter system configured with default factory calibration for AISI 4140 steel instead of custom modification parameters.
330180-91-05: Configured specifically for a 9-meter overall loop system length rather than the X1 custom length specification.
330180-X1-00: Lacks the multiple hazardous area agency safety approvals provided by the 05 designation.
Ordering Information Table
|
Designator |
Option Code |
Description |
|
Base Model |
330180 |
3300 XL Proximitor Sensor |
|
A: Total Length & Mounting |
X1 |
Custom system length and mounting configuration |
|
B: Agency Approval |
05 |
Multiple Approvals (CSA, ATEX, IECEx certifications) |
|
Modification |
MOD:143416-02 |
Special factory customized modification option |
Installation & Troubleshooting FAQ
Q1: What is the primary function of the SpringLoc terminal strips on this Proximitor sensor?
A1: The SpringLoc terminal strips require no special installation tools and facilitate fast field connections by completely eliminating screw-type mechanisms that can loosen over time.
Q2: Why does the 330180 Proximitor sensor achieve European CE mark approvals without metallic conduit?
A2: It features highly improved internal RFI/EMI immunity shielding, allowing safe operation even within fiberglass housings without adverse effects from nearby radio frequency signals.
Q3: What should be checked if the Proximitor loop signals a constant Not OK status fault?
A3: Inspect the physical integrity of the entire transducer loop, ensuring that the probe-to-extension cable ClickLoc connectors are fully locked and dry of oil or water mist.
Accessories
| 141078 | 3300 XL 8 mm and 3300 5 mm Proximity Transducer System Manual. |
| 175751 | 3300 XL Multi-Purpose Stainless Steel Housing. 12”x12”x6”. Can hold up to 8 Proximitor Sensors in a DIN-mount configuration or 6 Proximitor Sensors in a panelmount configuration. (Available with ATEX Zone 0 and Zone 1 certifications.) |
| 176467 | 3300 XL Multi-Purpose Stainless Steel Housing. 12”x8”x6”. Can hold up to 4 3300XL Proximitor Sensors in both DIN-mount and panel-mount configurations. (Available with ATEX Zone 0 and Zone 1 certifications.) |
| 330181 | 3300 XL Multi-Purpose Stainless Steel Housing. 13”x9.5”x7”. Can hold up to 8 Proximitor sensors in a DIN-mount configuration or 6 Proximitor Sensors in a panelmount configuration. Primarily used by customers requiring hazardous area approvals fro their installations. Available with ATEX Zone 0 and Zone 1 and North American Division 1 and Division 2 certifications. |
| 02120015 | Bulk field wire. 1.0 mm2 (18 AWG), 3 conductor, twisted, shielded cable with drain wire. Specify length in feet. |
| 138492-01 | Replacement panel-mount mounting pad. |
| 138493-01 | Replacement DIN-mount mounting pad. |
| 148722-01 | 3300 XL test plug. The 3300 XL Test Plug contains 3 small test pins attached to 3 color-coded 1-meter wires, each terminated in a banana plug. The 3-pin adapter plugs into the test pin holes on 3300 XL-style Proximitor sensors. You can use this test plug to check the performance of the Proximitor sensor from the test pin holes in the terminal strip without removing the field wiring. |
| 04310310 | 3300 XL Proximitor Sensor panelmount screw. One 6-32 UNC thread forming mounting screw. Four screws are required for each Proximitor sensor. (Screws supplied standard with Proximitor housings [3300 XL panel-mount option]). |
| 03200006 | Silicone self-fusing tape. A 9.1- meter (10-yard) roll of silicone tape to protect connectors. This tape is easy to install and provides excellent electrical isolation and protection from the environment. We do not recommend using this tape inside the casing of the machine. |
| 40113-02 | Connector Protector Kit. Connector Protector Kit for 3300 XL 8 mm probes and extension cables, including connector protectors and installation tools. |
| 136536-01 | Connector protector adapter. This allows you to use connector protector installation tools manufactured prior to 1998 with 75Ω ClickLoc connectors. |
| 40180-02 | Connector protectors. Package contains 10 pairs of connector protectors for 3300 XL 8 mm probes and extension cables. |
| 03839410 | 75Ω triaxial male connector protector. Male connector protectors install onto the extension cable and attach to the female connector protector on the probe, providing environmental protection of connectors. |
| 03839420 | 75Ω triaxial female connector protector. Female connector protectors install onto the probe lead and attach to the male connector protector on the extension cable, providing environmental protection of connectors. You can also place the connector protector onto the extension cable to slide over the connection to the Proximitor sensor to protect that connection from the environment. |
| 04301007 | 3/8-24 probe lock nut with safety wire holes. Single probe lock nut with 2 holes drilled through the nut in order to secure the lock nut in place with safety wire. |
| 04301008 | M10 x 1 probe lock nut with safety wire holes. Single probe lock nut with 2 holes drilled through the nut in order to secure the lock nut in place with safety wire. |
| 330153-01 | 3300 XL connector kit. Used on 3300 XL 8 mm probes and extension cables. Contains 1 pair each of male and female ClickLoc connectors, 2 colorcoded sleeves, 2 pieces of slit FEP tubing, and 1 strip of silicone tape. |
| 330153-09 | 3300 XL ETR Connector Kit. Used on ETR 3300 XL 8mm probes and 3300 ETR XL extension cables. Contains one pair of male and female ClickLoc connectors, two color-coded sleeves, two pieces of high temperature slit FEP tubing, and one strip of silicon tape. |
| 163356 | Connector Crimp Tool Kit. Includes 1 set of multiconnector inserts and connector installation instructions. Compatible only with 330153 connector kits or with probes shipped in 2003 or later with ClickLoc connectors uninstalled. Supplied with carrying case. |
