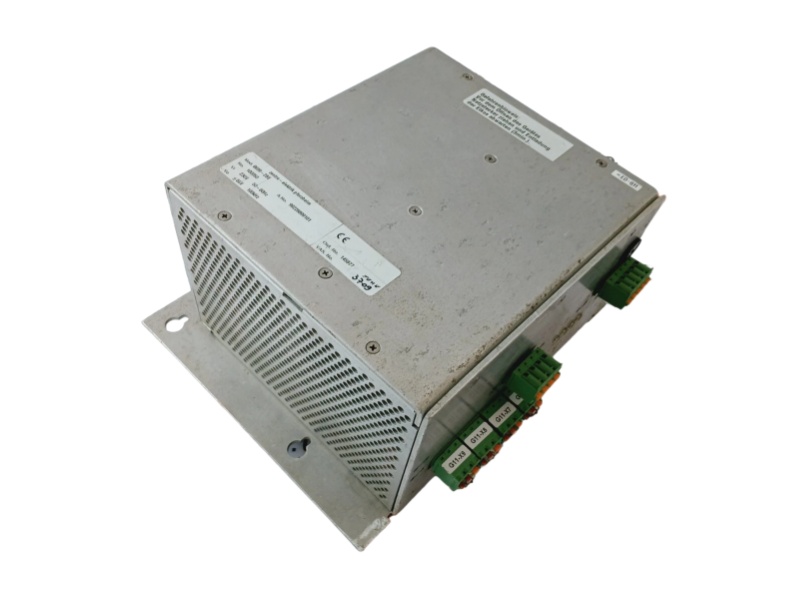

The Power Supply ZENTRO ELEKTRIK 8899-2BE 98228899101 is a highly specialized AC/AC converter designed for wall mounting, delivering a galvanically isolated 100kHz square wave output with precise voltage regulation. This robust unit operates on dual input voltages of 115V/60Hz or 230-240V/50-60Hz, providing substantial power output capabilities of 300W and 350W respectively. The sophisticated design of the POWER SUPPLY ZENTRO ELEKTRIK 8899-2BE 98228899101 incorporates advanced inrush current limitation using NTC technology and features both overvoltage protection via varistor and overcurrent protection through fuse mechanisms.

Engineered for reliability, the 8899-2BE ZENTRO-ELEKTRIK Power Supply features a unique 4-channel AC output system where each channel is individually monitored, ensuring stable operation under varying load conditions. The device generates a symmetrical square wave with a peak voltage of 55V at 100kHz frequency, capable of delivering 1.5A average current per output with a peak current capacity of 6.5A. The operational efficiency of it exceeds 80%, maintaining excellent line regulation within ±3% while incorporating a soft-start function with maximum activation delay exceeding 1 second.

The 8899-2BE 98228899101 ZENTRO-ELEKTRIK is built to withstand challenging industrial environments, operating effectively within a temperature range of 0-55°C using convection cooling. Its vibration-proof housing ensures durability, while the comprehensive protection system includes thermal protection with auto-recovery and overload protection that automatically shuts off all outputs when current exceeds 10A on any individual channel. The intuitive interface of it includes a voltage selector switch, a green LED indicating output voltage availability, and four red LEDs signaling over-current protection activation for each channel.

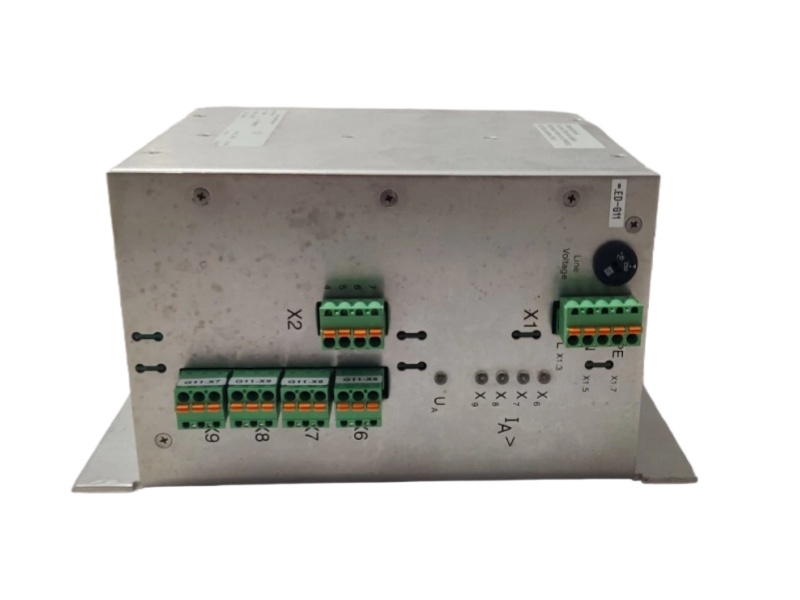

Electrical connectivity for the Gas-to-electric converter 8899-2BE ZENTRO-ELEKTRIK is facilitated through MSTBA connectors, with X1 serving as the 5-pole input connector while X6-X9 provide 3-pole output connections. The device also incorporates a signal relay for monitoring voltage input levels and output voltage presence, enhancing its diagnostic capabilities. The robust construction and advanced protection features of it make it particularly suitable for industrial applications requiring reliable high-frequency power conversion with multiple isolated outputs, ensuring stable performance in demanding operational conditions.
