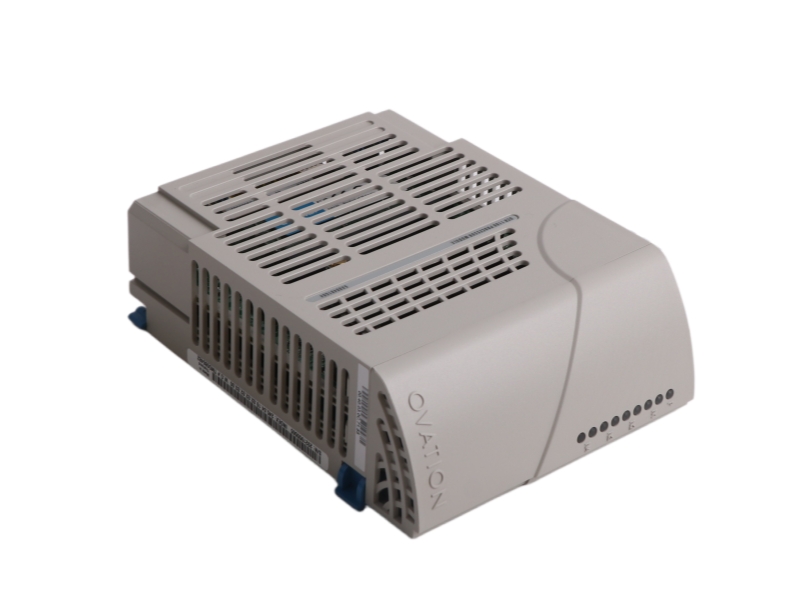

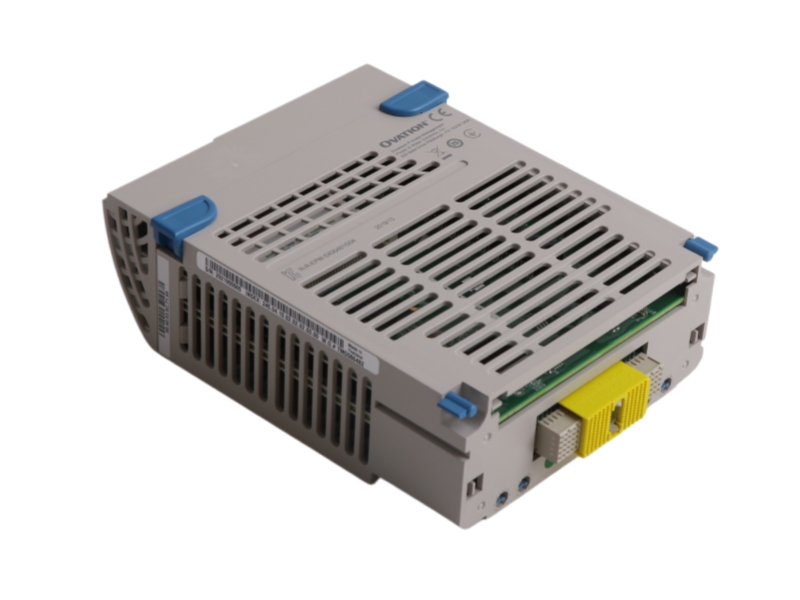

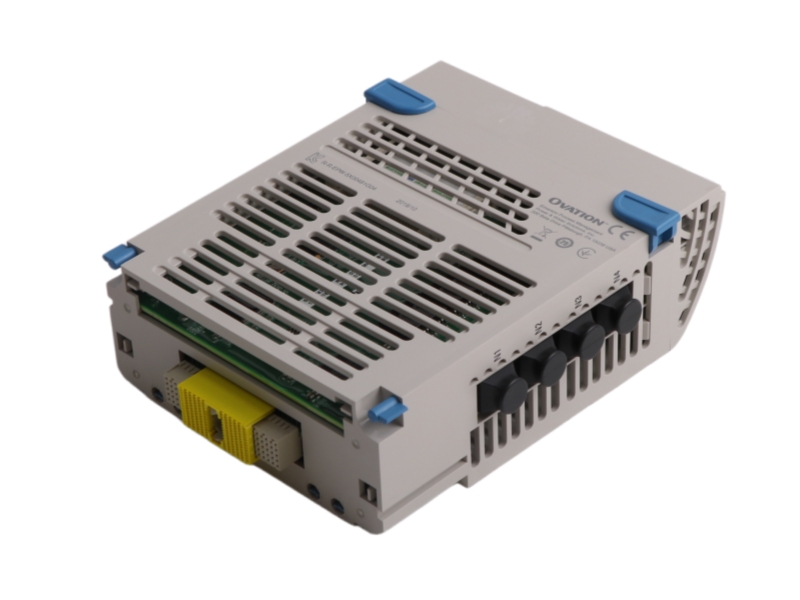

The Emerson 5X00481G04 is an Ovation OCR1100 controller featuring a 1.1 GHz processor, redundant operation with bumpless failover, and support for up to 32,000 points. It delivers secure, mission-critical control for power and water applications.

Specifications

Bus Structure：CompactPCI standard

Processor Base Frequency：1.1 GHz

Memory：1 Gb Flash & 256 Mb RAM

Originated Points：Up to 32,000 points

Process Control Tasks：Up to 5 tasks with different loop execution rates

Control Task Loop Execution Time：Two tasks predefined at 1 sec and 100 ms; three tasks user-definable from 10 ms to 30 sec in 10 ms increments

NIC Ports：4 x 10/100 Mb Ethernet: Option (i) 4 x RJ45; Option (ii) 1 x RJ45 + 3 SFP Fiber

Operating Temperature：0°C to 60°C (32°F to 140°F) for 4 x RJ45 option; 0°C to 50°C (32°F to 122°F) for fiber option

Power Supply：24 VDC, 40W

Humidity 0% to 95% RH (non-condensing)

Dimensions：20" w x 8" h x 7" d (508 mm x 203 mm x 178 mm)

CE Mark Certified when installed in a CE Mark cabinet

Achilles Certification：Level 1 certified (Embedded Device category)

Redundancy：Automatic bumpless failover with primary/backup configuration

I/O Support：Local and remote Ovation and WDPF I/O; virtual I/O capability for third-party OEM systems

Compliance：IEC 61131-3 standard

Dimensions：12.8x5.4x16.5cm

Weight:0.4kg

Enviromental Strength

• Wide Operating Temperature: Operates reliably from 0°C to 60°C (32°F to 140°F) for RJ45 configurations, suitable for industrial environments.

• High Humidity Tolerance: Functions in 0% to 95% relative humidity (non-condensing) without performance degradation.

• Fanless Operation: Small footprint with low power requirements and fanless design, reducing mechanical failure points and noise.

• CompactPCI Standard: Built to open industry standards, enabling easy integration and future technology upgrades.

• CE Mark Certified: Certified to CE Mark standards when installed in a compliant cabinet, ensuring regulatory compliance.

• Robust Redundancy: Designed for mission-critical applications with automatic bumpless failover, ensuring continuous operation even under component failure.
