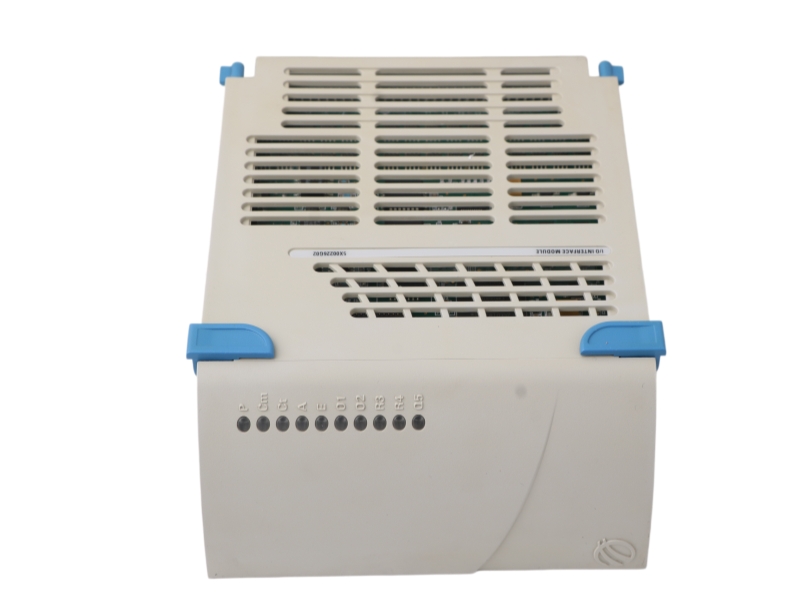

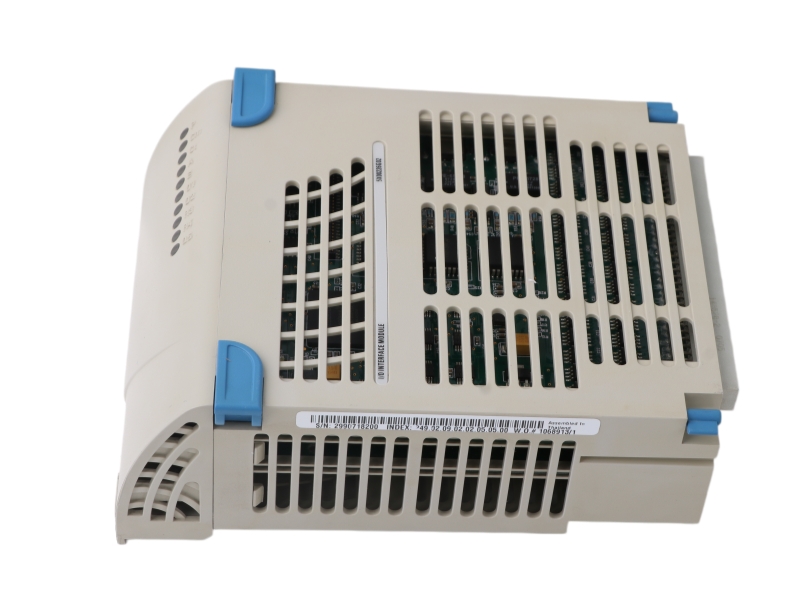

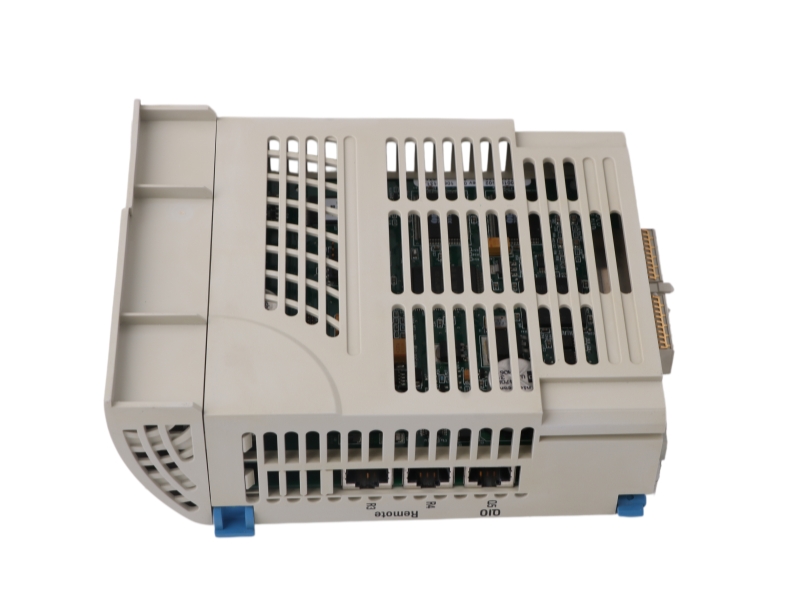

The Westinghouse 5X00226G04 is an Ovation OCR1100 controller featuring a 1.1 GHz processor, redundant failover, and fanless operation. It provides mission-critical control with Achilles Level 1 certification for secure power generation and water treatment.
Specifications
Processor Frequency: 1.1 GHz
Memory: 1 Gb Flash & 256 Mb RAM
Originated Points: Up to 32,000 points
Control Tasks: Up to 5 tasks with loop speeds from 10 ms to 30 seconds
Network Interface: 4 x 10/100 Mb Ethernet (RJ45 or SFP options)
Power Requirement: 24 VDC, 40W
Bus Structure: CompactPCI standard
Certification: Achilles Level 1 (Embedded Device)
Dimensions:12.5x6.1x16.6cm
Weight:0.32kg
Enviromental Strength
-
Fanless Operation: No moving parts, reducing dust ingestion and mechanical failure risk.
-
Wide Temperature Tolerance: Operates reliably from 0°C to 60°C (32°F to 140°F) with RJ45 ports.
-
High Humidity Resistance: Functions in 0–95% relative humidity, non-condensing.
-
Low Power Consumption: Requires only 24 VDC at 40W, minimizing heat generation.
-
CE Mark Certified: Meets European safety and environmental standards when installed in a CE-marked cabinet.
-
Compact Footprint: Small size (20"w x 8"h x 7"d) allows installation in space-constrained cabinets.
