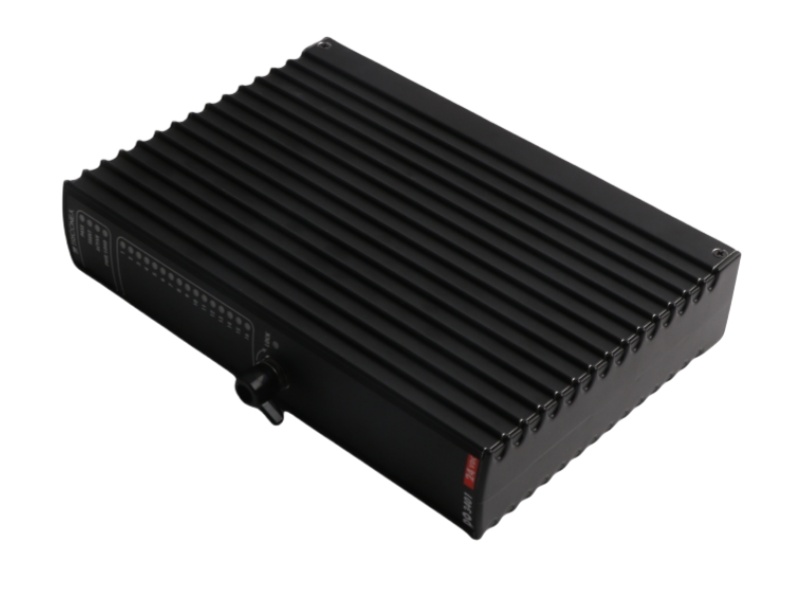

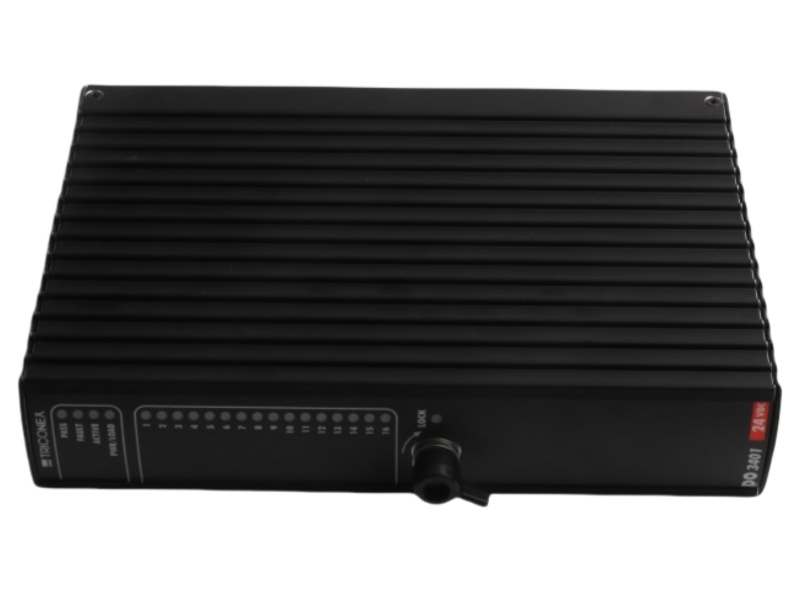

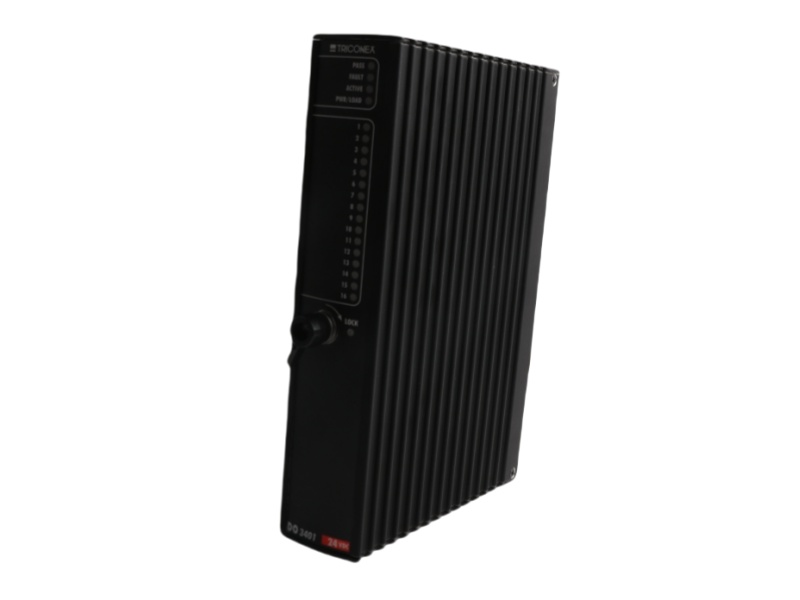

The Triconex DO 3401S2 Digital Output Module exemplifies Triconex's commitment to safety and reliability in critical process control applications. As part of the TMR (Triple Modular Redundant) digital output family, the Triconex DO 3401 S2 high-performance safety controller module features 16 independently isolated channels, each implementing complete electrical separation to prevent fault propagation. This robust design ensures that a failure in one channel cannot affect adjacent channels, maintaining system integrity in demanding industrial environments.

Similar to Triconex's digital input architecture, the Triconex DO3401 S2 PDF incorporates three independent processing channels (A, B, and C) within each module. Each channel contains dedicated microprocessors that handle communication with the corresponding main processors in the TMR system. The Triconex DO 3401S2 asynchronously processes output commands through these separate channels, with final states determined by a hardware voting mechanism for maximum reliability.

The Safety controller module DO 3401 Triconex carries SIL3 certification, meeting the highest safety integrity level for process industry applications. Its design includes comprehensive diagnostics that continuously monitor output health without disrupting field operations. The module's TMR architecture ensures that the Triconex DO 3401S2 maintains correct operation even with a single channel failure, making it ideal for emergency shutdown systems and other critical safety functions.

In oil refineries, chemical plants, and power generation facilities, the Digital Output Module DO 3401S2 Triconex provides reliable control of final elements like solenoid valves and motor starters. Its combination of redundant architecture, independent channel processing, and rigorous safety certification makes it a preferred choice for engineers designing systems where failure is not an option. The module continues to set industry standards for digital output reliability in safety instrumented systems.
