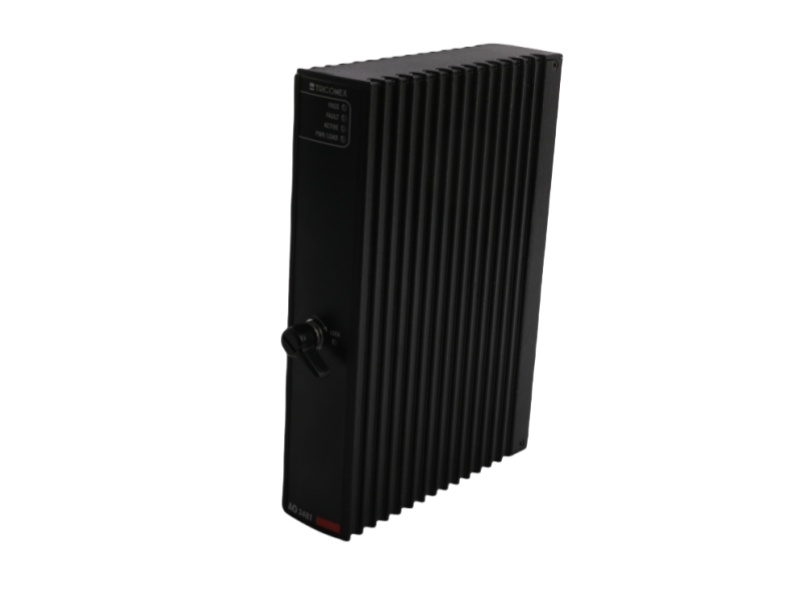

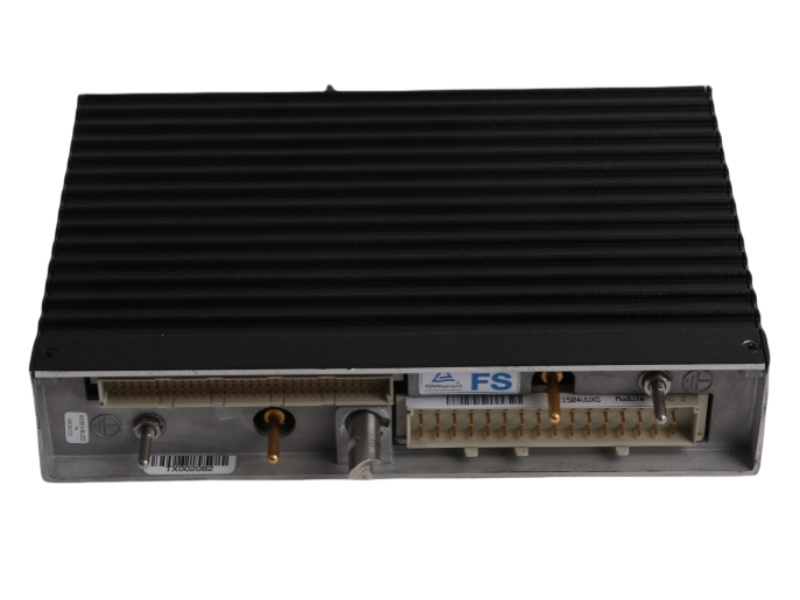

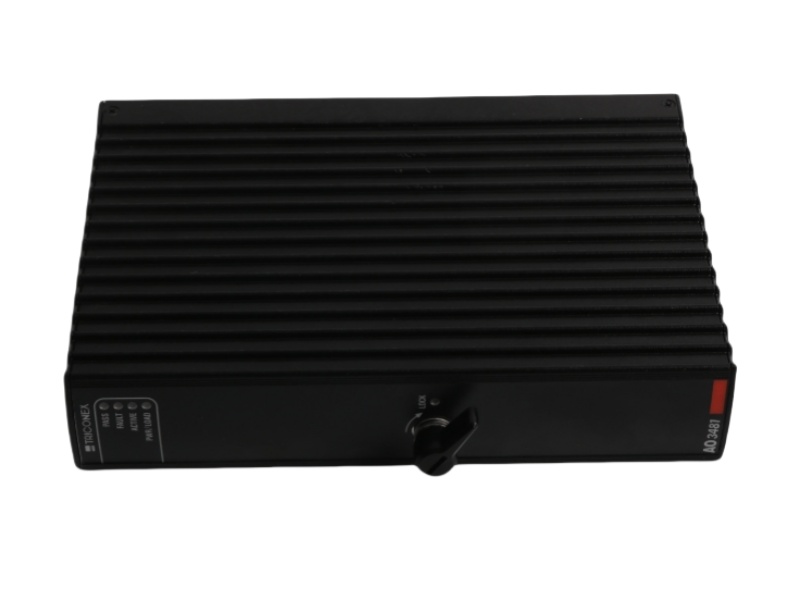

The Triconex AO 3481S2 Analog Output Module exemplifies advanced triple-redundant analog input processing, where each of its three channels independently measures signals and stores values in separate tables. This TMR architecture ensures the Triconex AO 3481S2 Tricon Communication Model maintains accuracy even with channel discrepancies, as each main processor cross-validates measurements via the TriBus network. The module's mid-value selection algorithm automatically corrects input tables, providing fault-tolerant data integrity for SIL3 safety applications.

In TMR mode, the Triconex AO3481 S2 PDF utilizes median-value voting for maximum reliability, while duplex configurations employ averaging for balanced performance. The module's self-calibration system periodically checks against reference voltages, automatically adjusting ADC gain and bias to maintain ±0.1% accuracy. This makes the AO 3481S2 Communication Module Triconex particularly effective for sensitive measurements like reactor temperatures or pipeline pressures.

The programmable logic controller Triconex 3481 S2 supports diverse signal types including 4-20mA loops (isolated/non-isolated), thermocouples (J/K/T/E), and 3-wire RTDs. Its universal input design allows seamless integration with field instruments across oil/gas, chemical, and power generation applications. The Triconex AO 3481S2 also handles voltage ranges from -5VDC to +10VDC, accommodating both legacy and modern transducer outputs.

Engineers specify the AO 3481 S2 Analog Output Module Triconex for safety-critical processes where measurement integrity directly impacts shutdown decisions. Its combination of automated calibration, TMR validation, and broad signal compatibility delivers unmatched reliability for SIL3 loops. The module's design reflects decades of Triconex expertise in protecting hazardous processes through fail-safe analog monitoring.
