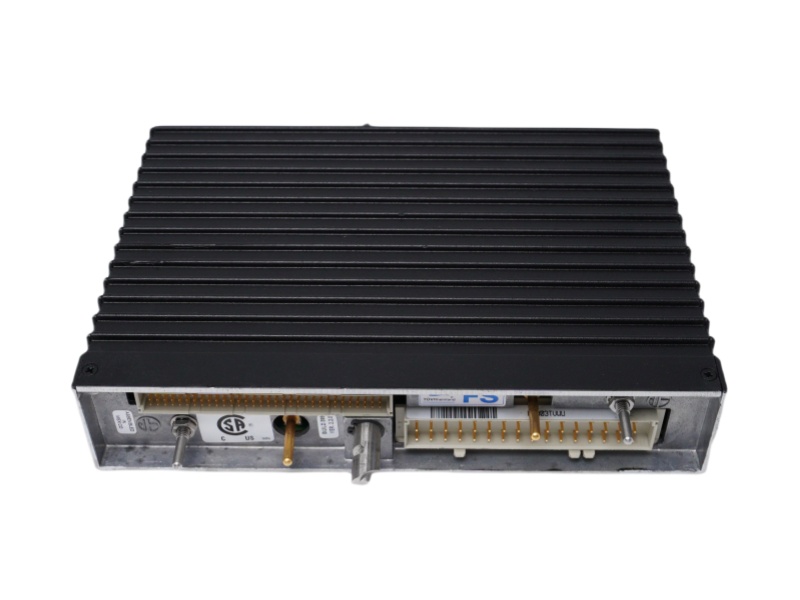

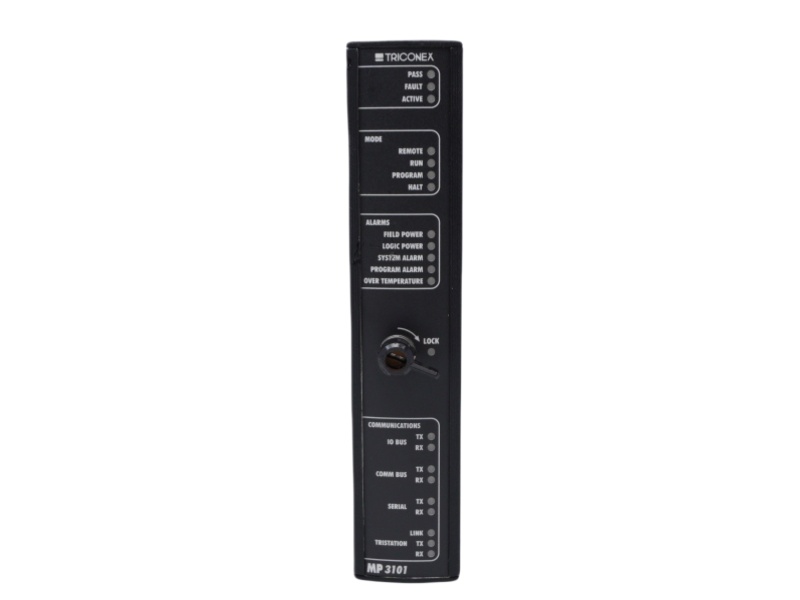

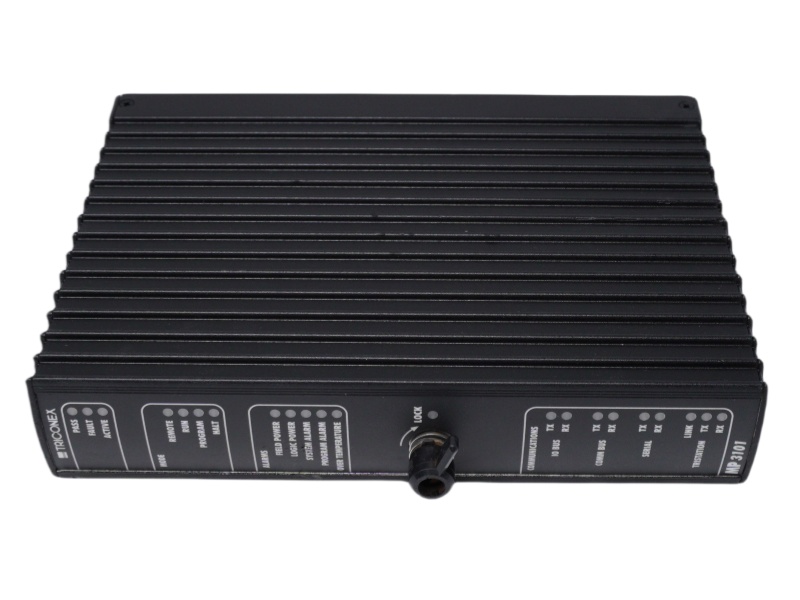

The Triconex MP 3101 Main Processor Module serves as the core processing unit in Tricon safety systems, implementing the critical triple-modular redundant (TMR) architecture. As one of three identical main processors in the system, the Triconex MP3101 Trident Redundant Processor operates in parallel with its counterparts, forming a fault-tolerant triad that ensures continuous operation even with hardware failures. Each Triconex MP3101 module contains dedicated I/O and communication processors that manage data exchange across the system's triplicated I/O bus structure.

During operation, the Triconex MP 3101 PDF receives input data through its dedicated channel on the triplicated backplane bus, storing this information in local memory tables for the voting process. The module's sophisticated design allows it to simultaneously process control logic while maintaining synchronization with the other two MPs in the triad. The Triconex MP3101 achieves this through high-speed TriBus communications, which enables real-time data comparison across all three channels.

The Trident Redundant Processor Module MP3101 Triconex utilizes specialized DMA hardware to synchronize and vote on data with its paired processors. This hardware-based voting occurs continuously during TriBus transfers, with each Triconex MP3101 comparing its results against the other two channels. Any discrepancies are automatically resolved through majority voting, ensuring the system maintains correct operation even if one channel develops a fault. This robust architecture makes the MP3101 ideal for safety-critical applications requiring 24/7 reliability.

In industrial environments like refineries and power plants, the Triconex Main Processor Module MP 3101 delivers the uncompromising reliability needed for SIL3-certified safety functions. Its ability to maintain synchronization while executing complex control logic makes it particularly valuable for emergency shutdown systems and other critical protection applications. The module's design exemplifies Triconex's commitment to fail-safe operation in the most demanding process control environments.
