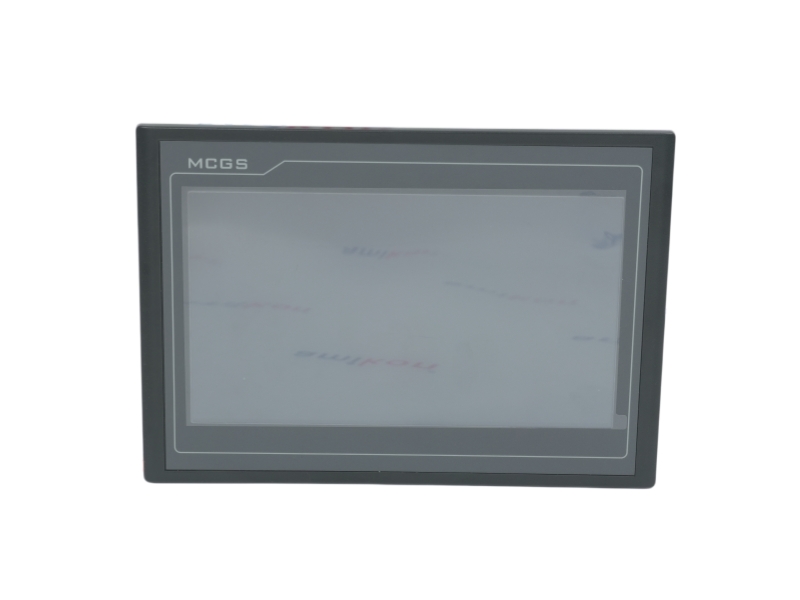

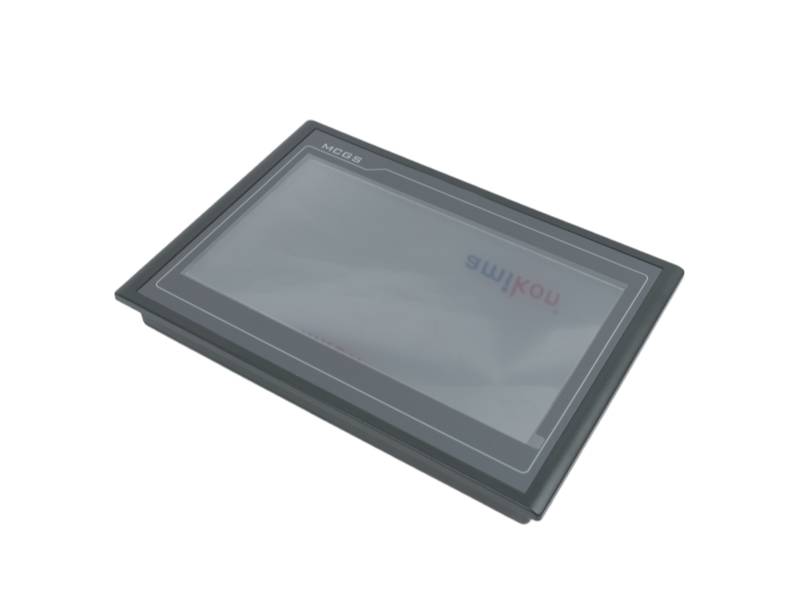

TPC1061Ti is an MCGS high-performance human-machine interface module featuring a 10.2-inch TFT LCD and integrated Ethernet connectivity. Fully compatible with mainstream PLC networks, this unit works seamlessly with industrial controllers to deliver flexible visualization, data logging, and stable machinery communication in factory automation.

Features and Benefits

• High-Resolution Touch Display: Features a vivid 10.2-inch TFT screen with 1024x600 resolution for clear graphic control interfaces.

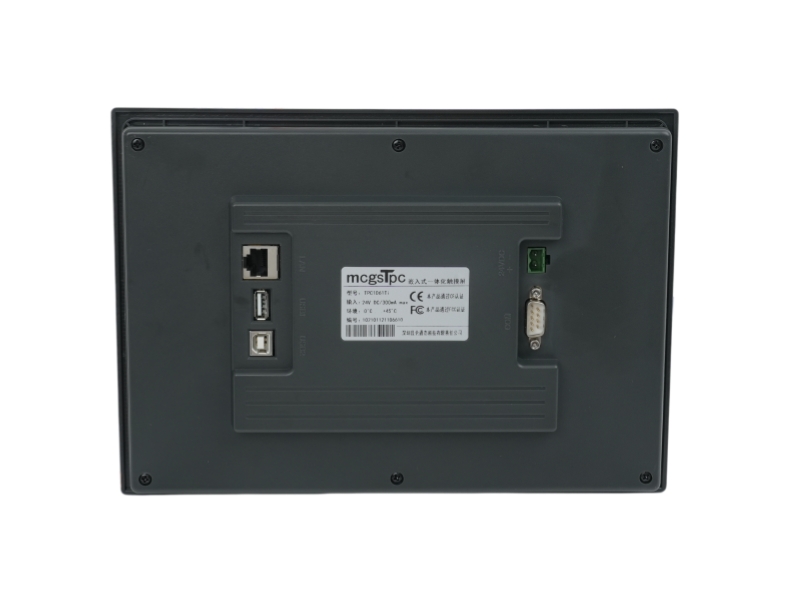

• Integrated Ethernet Port: Provides native network communication for fast project uploads, downloads, and multi-device networking.
• Versatile Serial Interfaces: Equipped with RS232, RS485, and RS422 communication ports to interface with legacy field equipment.
• Robust Hardware Architecture: Built with industrial-grade microprocessors and high-capacity flash memory for smooth animation runtime.
• Rugged Front Panel Protection: CE-certified PC material structure designed to withstand harsh industrial environments, dust, and moisture.

System Compatibility and Alternatives

• System Compatibility:
  Fully compatible with MCGS embedded configuration software (such as McgsPro) and major PLC brands including Siemens, Mitsubishi, Omron, Delta, and Schneider via Modbus and proprietary industrial protocols.
• Alternative Model:
  TPC1031Kt (10.1-inch standard cost-effective series) or TPC1061Tx / TPC1062K (comparable legacy or updated 10-inch bracket alternatives).
• Difference from Alternative Model:
  The TPC1061Ti provides an upgraded 10.2-inch workspace layout alongside native RJ45 Ethernet capability as a standard hardware arrangement. The TPC1031Kt focuses on non-Ethernet serial configurations for localized budget deployments, while alternative series like the TPC1062K feature distinct physical cutout adjustments and alternative internal memory allocations.

Competitive Advantage

• Seamless PLC Ecosystem Driver Support: Built-in protocol library ensures rapid integration with thousands of automation devices without custom scripting.
• Optimized Price-to-Performance Ratio: Offers standard advanced features like embedded Ethernet and industrial data logging at a competitive commercial cost tier.
• Validated Field Durability: Backed by global CE certification and industrial-grade construction to ensure reliable operator uptime inside intensive plant floors.

Installation & Troubleshooting FAQ

Q1: How do I configure communication parameters when pairing the TPC1061Ti with an external PLC?
A: Open your MCGS development software, access the device manager, and choose the correct PLC driver block. Set the baud rate, station number, data bits, and parity to match your hardware controller exactly before flashing the target interface program.

Q2: Why is the touch screen display stuck on a boot loop or a blank signal screen?
A: This usually points to corrupted system firmware or a disrupted project download via the USB/Ethernet path. Insert a clean USB drive pre-loaded with the core MCGS recovery operating system file, reset the panel power, and follow the flashing sequence to restore internal registry entries.

Q3: What precautions must be taken regarding physical mounting inside electrical cabinets?
A: Ensure the panel cutout dimensions strictly follow the product manual guidelines to achieve a tight seal. Apply the supplied locking brackets evenly around the perimeter to prevent dust tracking and water ingress while leaving adequate clearance behind the module for air ventilation.
