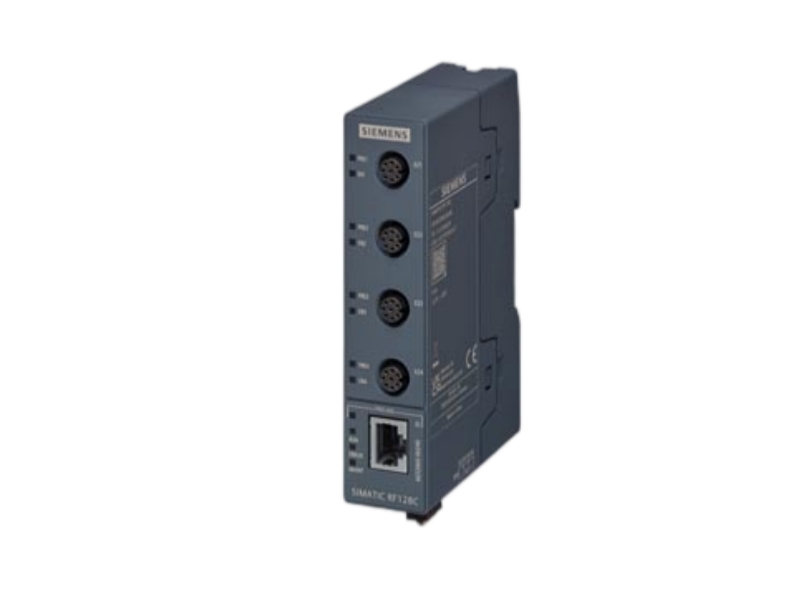

SIMATIC Ident RF128C communication module for four reader connections
Siemens 6GT2002-0LE40 is the SIMATIC RF128C communication module for integrating up to four compatible identification readers with industrial Ethernet systems. The official operating instructions specify PROFINET, EtherNet/IP and XML communication through a 100BaseX full-duplex RJ45 interface, plus four M12 reader connections using RS422 communication. The module operates from 24 V DC and is designed for SIMATIC Ident applications requiring coordinated RFID reader data at controller or PC level. Before procurement, confirm the reader types, cable lengths, network protocol, IP configuration, supply arrangement and TIA Portal hardware support required by the project.
| Item | Details |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | No current lifecycle wording was stated in the exact Siemens documentation reviewed |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Parameter | Verified Detail |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6GT2002-0LE40 |
| Product Type | SIMATIC RF128C communication module |
| Product Family | SIMATIC Ident |
| Ethernet Protocols | PROFINET, EtherNet/IP and XML |
| Ethernet Mode | 100BaseX full duplex |
| Ethernet Speed | 100 Mbps |
| Ethernet Connector | RJ45, 8-pin |
| Reader Connections | 4 |
| Reader Connector | M12 coupler plugs, 8-pin, A-coded |
| Reader Interface | RS422, 19.2 to 921.6 Kbaud |
| Rated Supply Voltage | 24 V DC |
| Permitted Supply Range | 20.4 to 28.8 V DC |
| Degree of Protection | IP20 |
| Operating Temperature | 0 to +55 °C |
| Dimensions | 30 × 125 × 80 mm |
| Net Weight | Approx. 160 g |
| Country of Origin | Germany |
| Review Area | Application Guidance |
|---|---|
| System Context | SIMATIC Ident RFID installations with Ethernet-connected controllers or PCs |
| Functional Role | Connects and coordinates up to four compatible identification readers |
| Supported Networks | PROFINET, EtherNet/IP and XML over Ethernet |
| Typical Use | Material tracking, production identification and automated data capture |
| Engineering Review | Confirm reader type, RS422 cable length, network settings, supply and TIA Portal support |
Compatibility must be evaluated against the installed system configuration. This product should not be treated as a guaranteed direct replacement solely because another item has a similar designation.
The current Siemens RF128C operating instructions confirm the exact order number and technical specification but do not state a product lifecycle phrase. This page therefore does not assign Active, Discontinued or another lifecycle status to 6GT2002-0LE40. Confirm the current Siemens catalog status together with the required TIA Portal hardware support before project approval.
It identifies the Siemens SIMATIC RF128C industrial identification communication module.
The official Siemens technical data specifies four reader connections through 8-pin A-coded M12 coupler plugs.
The RF128C supports PROFINET, EtherNet/IP and XML communication over a 100BaseX full-duplex Ethernet interface.
Verify the 24 V DC supply, permitted 20.4 to 28.8 V DC range and the connected reader power demand.
Review reader compatibility, connector coding, RS422 cable length, Ethernet protocol, IP settings and project hardware support.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Verification, inspection, packaging and logistics support for Siemens 6GT2002-0LE40
Our process is designed to give purchasing teams and engineers clear evidence before shipment. Each request is handled around the exact order number, condition requirement and destination rather than a generic product description.
| Service Step | What We Check |
|---|---|
| Model and Suffix Verification | The complete Siemens order number, suffix and visible revision markings are compared with the request. |
| Condition Confirmation | Packaging, seals, enclosure condition and included items are reviewed against the offered condition. |
| Technical Compatibility Review | Available labels, interfaces, connector arrangements and customer-provided system details are compared before approval. |
| Product and Label Photos | Clear inspection images can be supplied for model, revision, connector and condition confirmation. |
| Protective Packaging | Antistatic protection, cushioning and an outer carton are selected for industrial electronic modules. |
| Worldwide Shipping | Available carrier options are coordinated according to destination, package requirements and applicable restrictions. |
| Tracking and Customs Documents | Shipment tracking and standard commercial documents are prepared for the selected route. |
| Warranty and Returns | Written warranty terms and the return authorization process are provided with the commercial agreement. |
| After-Sales Response | Our team follows up on documentation, shipment status and reported product issues. |
Before dispatch, the team checks the visible manufacturer label, order number, revision markings, physical condition and available accessories. Product evidence is compared with the quotation and buyer requirements. Packaging and shipping documents are then prepared for the agreed transport route. This process supports traceable communication without promising unverified quantities or fixed delivery times.
Look for complete company contact details, clear product identification, inspection evidence, written commercial terms and a documented after-sales process.
Confirm the quotation, full order number, product-label photos, condition statement, warranty scope, shipping terms, customs documents and return authorization procedure.
Compare the complete model and suffix, hardware revision, connectors, rack location, power arrangement, signal assignment and project configuration with the installed system.
Warning signs include an incomplete model number, refusal to provide label photos, conflicting specifications, unclear condition descriptions and no explained return process.
Email and WhatsApp details are provided for model verification, inspection requests, packaging coordination and shipping support.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
