An Industrial Ethernet communications processor that extends SIMATIC ET 200SP stations with routing and open IE services.

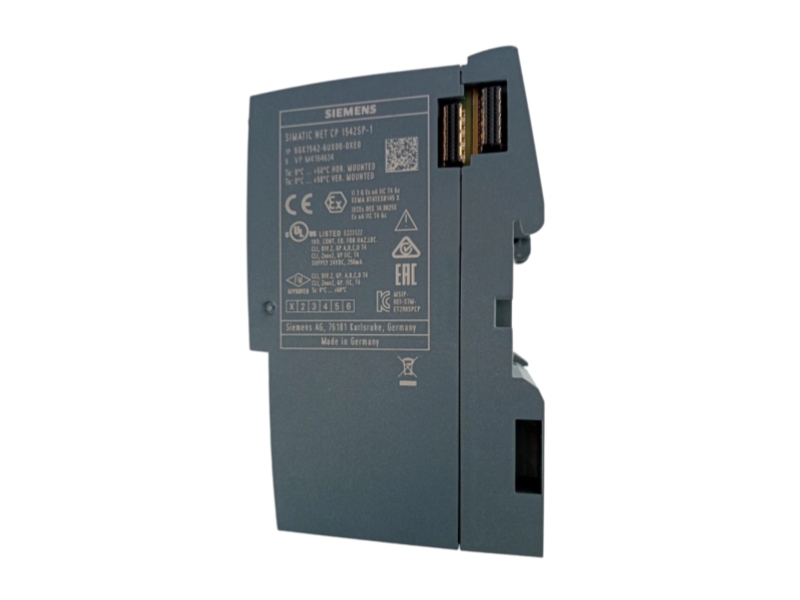

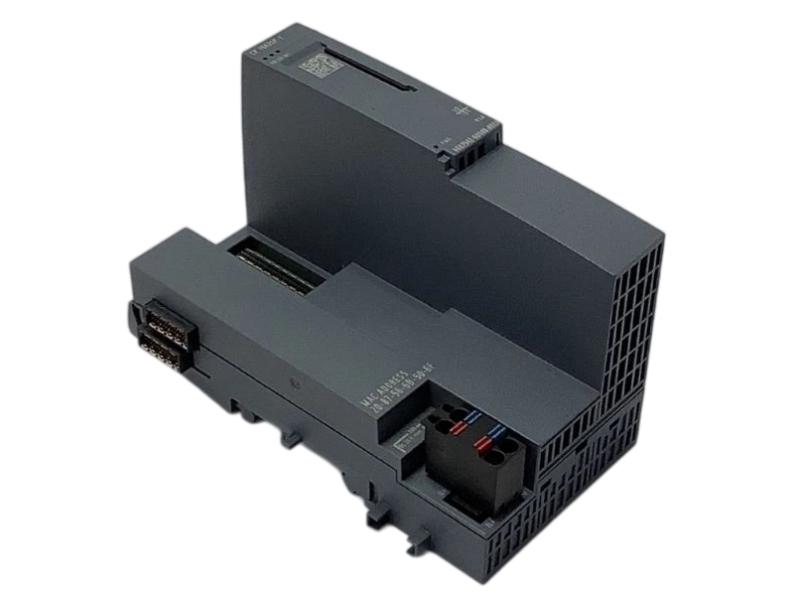

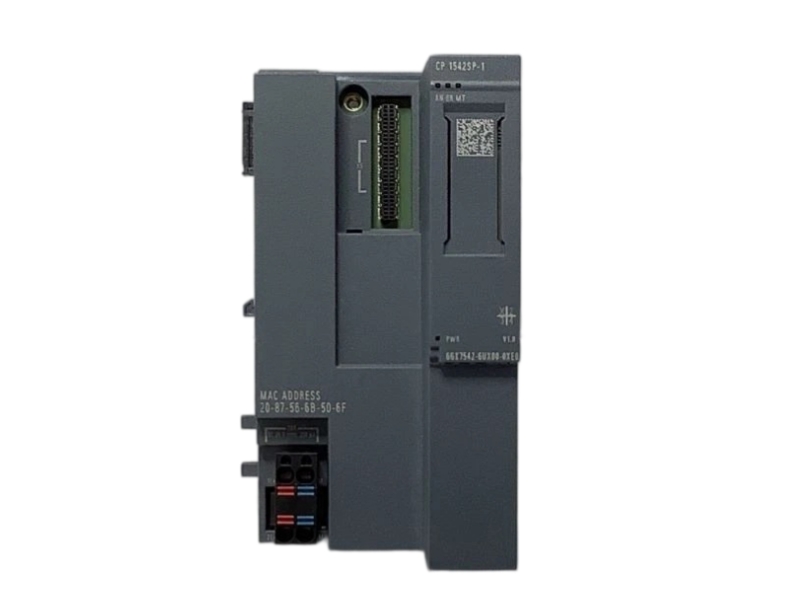

The Siemens 6GK7542-6UX00-0XE0 is the SIMATIC NET CP 1542SP-1 communications processor for connecting an S7-ET 200SP station to Industrial Ethernet. It supports open IE communication, PG/OP communication, S7 routing, IPv4/IPv6 services and CPU web-server access. A suitable ET 200SP bus adapter is required for the network connection.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6GK7542-6UX00-0XE0 |
| Product Family | SIMATIC NET CP 1542SP-1 |
| Product Type | Industrial Ethernet communications processor |
| Product Lifecycle | PM300: Active Product |
| Ethernet interface | 1 Industrial Ethernet interface |
|---|---|
| Physical connections | 2 electrical connections through an ET 200SP bus adapter |
| Transmission rate | 10 to 100 Mbit/s |
| Supported communication | TCP/IP, ISO-on-TCP, UDP, PG/OP and S7 routing |
| Additional services | IP broadcast/multicast, SNMPv1, DHCP, email, IPv4/IPv6 and NTP |
| CPU access | Supports access to the CPU web server |
| Supply voltage | 24 V DC; permissible range 19.2 to 28.8 V |
| Power loss | 6 W |
| Operating temperature | Vertical mounting: -30 to +50 °C; horizontal mounting: -30 to +60 °C |
| Storage and transport | -40 to +70 °C |
| Protection and humidity | IP20; up to 95% relative humidity without condensation |
| Dimensions (W × H × D) | 60 × 117 × 74 mm |
| Net weight | 0.201 kg |
Connects distributed S7-ET 200SP controllers to plant Industrial Ethernet networks.
Provides PG/OP services and S7 routing for commissioning and maintenance paths.
Supports TCP/IP, ISO-on-TCP and UDP communication for machine and supervisory applications.
It is a Siemens CP 1542SP-1 communications processor for SIMATIC ET 200SP.
No. Siemens specifies that a compatible ET 200SP bus adapter is required.
The processor supports TCP/IP, ISO-on-TCP and UDP communication.
Siemens lists the complete part number as PM300: Active Product.
Confirm the CPU, bus adapter, network medium, supply voltage, firmware and addressing plan.
Send the complete order number and installed-system details for stock verification, compatibility review, warranty terms and global delivery options.
Ask about 6GK7542-6UX00-0XE0Structured support for identifying, evaluating, packing and delivering the 6GK7542-6UX00-0XE0 communications processor.
| Stage | Service | What we review |
|---|---|---|
| 01 | Application matching | ET 200SP CPU, slot allocation, bus adapter, Industrial Ethernet medium, addressing plan and communication services. |
| 02 | Identity verification | Full order number, suffix, nameplate details, hardware revision and readable traceability markings. |
| 03 | Incoming inspection | Housing, backplane connector, bus-adapter interface, LEDs and traceability markings are checked against the offered condition. |
| 04 | Protective packing | ESD protection, connector shielding, moisture control and impact-resistant outer packaging for industrial electronics. |
| 05 | Global logistics | Shipment planning, commercial documents, tracking information and delivery coordination for the destination country. |
| 06 | Warranty follow-up | Warranty scope, inspection basis and return procedure are stated with the quotation and order documentation. |
Full MLFB, serial number, hardware or firmware status and readable product label.
ET 200SP CPU, bus adapter type, rail layout and 24 V DC supply arrangement.
IP addressing, routing, open communication, firmware level and network topology.
Required quantity, destination, target date and condition preference.
Document the IP configuration, communication connections and routing settings before exchange. Confirm the bus adapter and CPU compatibility before commissioning.
Send your 6GK7542-6UX00-0XE0 nameplate details and application information for a configuration-focused response.
