A coordinator records the exact order code, installed system, revision data and required quantity. Missing compatibility information is identified before quotation review.

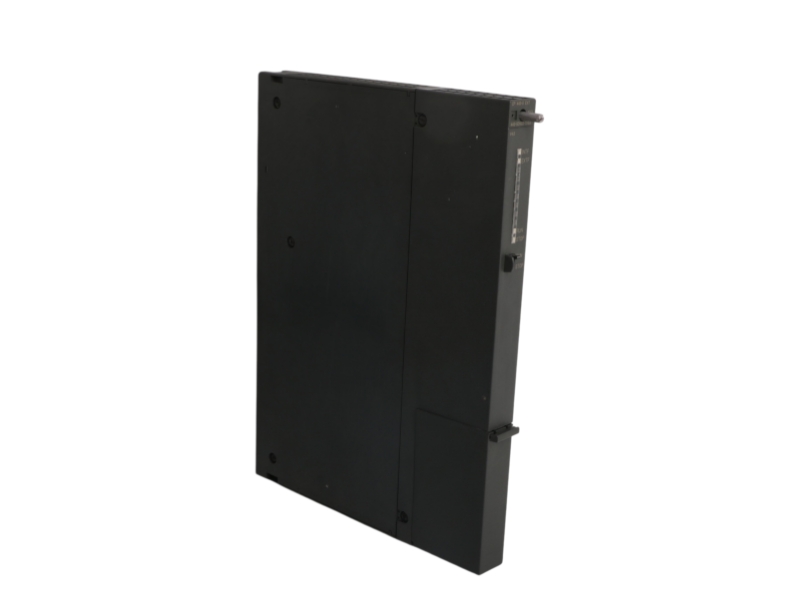

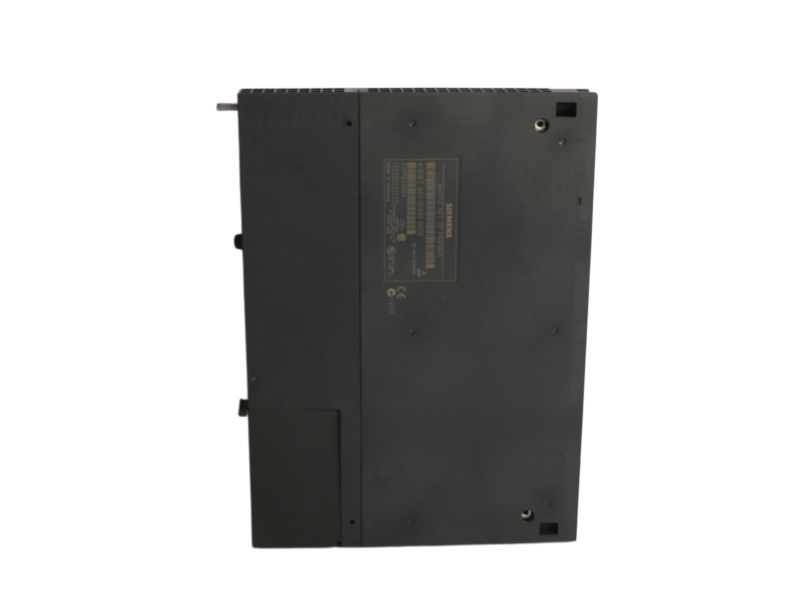

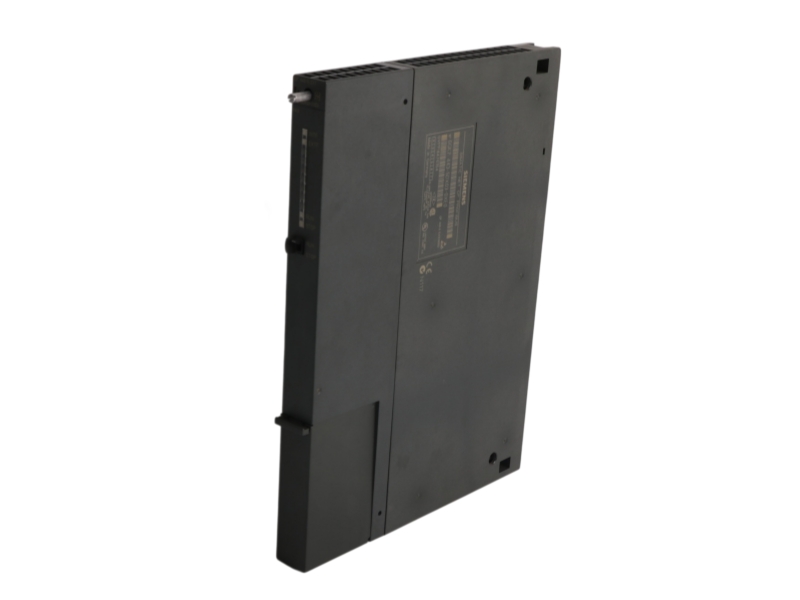

A CP 443-5 Extended communication processor for connecting compatible SIMATIC S7-400 stations to PROFIBUS DP networks.
Siemens 6GK7443-5DX03-0XE0 is a SIMATIC NET CP 443-5 Extended communication processor for SIMATIC S7-400. Siemens documentation identifies it for PROFIBUS DP communication and describes DPV1 operation with the required CPU and engineering environment.
The processor extends an S7-400 station with PROFIBUS master and communication functions. Correct operation depends on the CPU model and firmware, STEP 7 version, PROFIBUS configuration, bus parameters and the firmware level of the CP itself.
| Item | Verified statement |
|---|---|
| Exact article | 6GK7443-5DX03-0XE0 |
| Product family | SIMATIC NET CP 443-5 Extended |
| Official lifecycle wording | Official lifecycle wording is not shown in the accessible Siemens documentation for this exact order number; verify before order placement. |
| Procurement scope | Availability, condition, warranty and shipment are confirmed in the written quotation. |
| Parameter | Officially supported information |
|---|---|
| Manufacturer | Siemens |
| Series | SIMATIC NET / SIMATIC S7-400 |
| Product type | CP 443-5 Extended communication processor |
| Network | PROFIBUS DP |
| System connection | Compatible SIMATIC S7-400 stations |
| Communication scope | DP, PG/OP and S7 communication; check configured services |
| DPV1 support | Documented with CP firmware V4.0.0 or higher and suitable S7-400 CPUs |
| Engineering requirement | STEP 7 V5.1 SP2 or higher for the cited DPV1 configuration |
| Configuration caution | CPU, CP firmware and project settings must be verified together |
Connects a compatible S7-400 station to distributed PROFIBUS DP devices according to the engineered network configuration.
Supports enhanced DPV1 functions when the cited firmware, CPU and STEP 7 prerequisites are satisfied.
Used for documented replacement or service of existing CP 443-5 Extended communication paths in S7-400 systems.
No lifecycle label is inferred for this complete order number. The current Siemens catalogue entry and any official replacement notice must be checked before applying Active, Classic, Legacy, Limited, Phase Out Started, Product Cancellation, Obsolete or Discontinued wording.
It is a Siemens SIMATIC NET CP 443-5 Extended communication processor for S7-400 PROFIBUS systems.
The module is designed for PROFIBUS DP communication.
Siemens documentation cites CP firmware V4.0.0 or higher with suitable S7-400 CPUs and the required STEP 7 environment.
STEP 7 V5.1 with Service Pack 2 or higher is documented for the referenced DPV1 configuration.
No. Basic and Extended variants, firmware, supported services and project configuration can differ.
Provide the full order number, hardware and firmware versions, CPU model, STEP 7 project details and PROFIBUS topology.
Send the exact order code, system configuration, quantity and destination for a documented supply review.
A documentation-led service covering identity control, configuration review, quotation clarity, inspection coordination and global delivery planning for SIMATIC NET CP 443-5 Extended products.
Industrial automation parts are configuration-sensitive. A family name alone does not confirm interfaces, firmware, power requirements, memory, approvals or installation compatibility. Our team keeps the complete 6GK7443-5DX03-0XE0 reference attached to every commercial and technical checkpoint and compares it with the supplied nameplate, project information and available Siemens documentation.
Before commercial commitment, we coordinate the facts needed to reduce wrong-part risk: complete suffix, hardware and firmware revision, physical condition, required accessories, quantity, destination, warranty scope, inspection evidence and delivery expectations. Purchasing and maintenance teams receive a clearer record of what is offered, what remains to be verified and what will be included in the shipment.
A coordinator records the exact order code, installed system, revision data and required quantity. Missing compatibility information is identified before quotation review.
Condition, inspection points, warranty terms, inclusions, lead time and shipment scope are aligned in writing so offers can be compared on the same basis.
Packing, export documents, carrier planning and destination requirements are reviewed before dispatch, supporting traceable receiving and project scheduling.
01 · Identify — Capture the full order number, nameplate and installed-system context.
02 · Compare — Review interfaces, firmware, power, configuration and accessories.
03 · Quote — Define condition, inclusions, warranty, price and lead time.
04 · Inspect — Coordinate label, appearance, revision and packing evidence.
05 · Deliver — Arrange documentation, tracking and global shipment.
Send a legible product nameplate, the complete 6GK7443-5DX03-0XE0 order code, hardware and firmware information, installed rack or network details, relevant project version, required accessories, quantity, preferred condition and destination country. Photos of connectors, terminals and labels help expose revision differences that are not visible from the family designation.
We can then structure the quotation around the exact requirement, state what is included, flag any compatibility point still requiring confirmation and document receiving checks for the customer’s maintenance or project team.
Share the exact model, installed configuration, quantity and destination for availability, compatibility, warranty and delivery coordination.
