Managed Industrial Ethernet switching with seven electrical ports and three multimode fiber ports for plant networks.

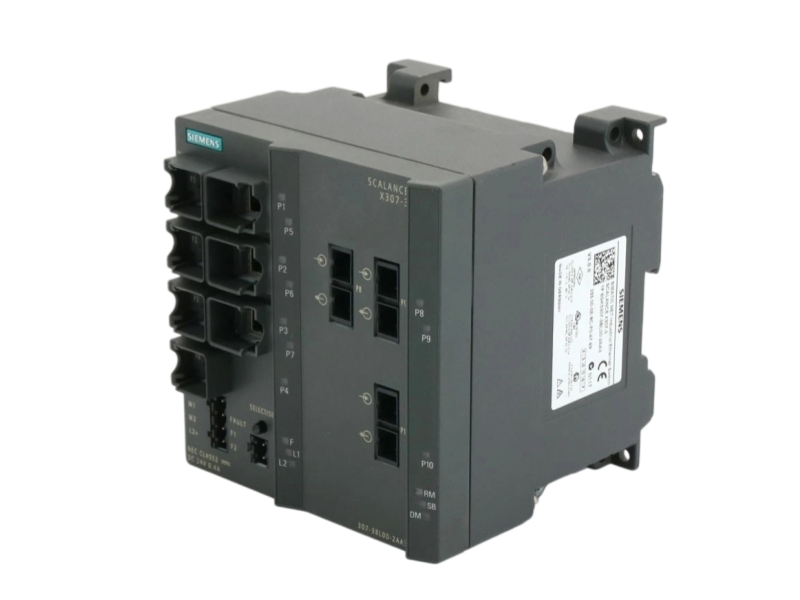

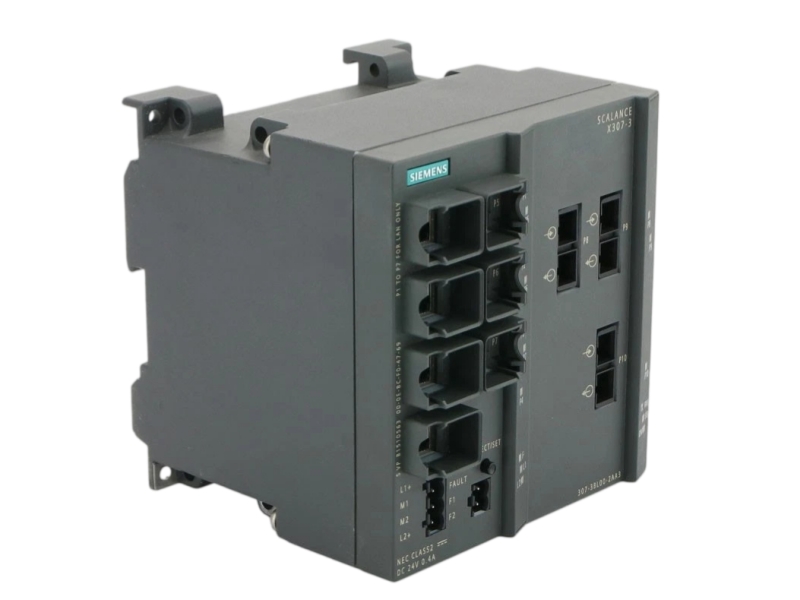

Siemens 6GK5307-3BL00-2AA3 is a SCALANCE X307-3 managed Industrial Ethernet switch for structured plant networks that combine copper and multimode fiber links. Official Siemens documentation identifies seven 10/100 Mbit/s RJ45 ports and three 1000 Mbit/s SC optical ports for multimode glass fiber, with a documented link distance up to 750 m. Management and diagnostic functions include PROFINET IO device integration, web and command-line management, SNMP, LLDP, DCP, VLAN, IGMP and redundancy features. Procurement should verify the complete suffix, optical media, connector type, topology, redundancy role and installed firmware before replacement or expansion.
| Field | Verified Information |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Notice: Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Field | Verified Information |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6GK5307-3BL00-2AA3 |
| Product Type | SCALANCE X307-3 managed Industrial Ethernet switch |
| Electrical Ports | 7 x RJ45, 10/100 Mbit/s |
| Optical Ports | 3 x SC, 1000 Mbit/s |
| Optical Media | Multimode glass fiber |
| Maximum Optical Link Distance | 750 m |
| Management | Web management and command-line interface |
| Industrial Integration | PROFINET IO device, DCP and LLDP |
| Network Functions | RSTP, VLAN and IGMP |
| Network Management | SNMP v1, v2 and v3 |
| Diagnostics | LEDs, signaling contact and port diagnostics |
| Country of Origin | GERMANY |
| Application Area | Product-Specific Guidance |
|---|---|
| Control Network Fit | Managed Industrial Ethernet and PROFINET plant networks requiring copper and multimode fiber segments. |
| System Role | Aggregates seven electrical links and three Gigabit optical links while providing network management and diagnostics. |
| Typical Applications | Cell networking, machine lines, plant backbone segmentation and fiber-connected automation areas. |
| Maintenance Use | Exact-model replacement where existing SC fiber, RJ45 cabling, management configuration and redundancy settings must be preserved. |
| Configuration Importance | Port assignments, VLANs, redundancy role, IP parameters and firmware must be reviewed before commissioning. |
Reviewed Siemens manuals and the exact-model security advisory identify the hardware and firmware scope but do not provide a current lifecycle designation for this complete order code. No lifecycle classification is asserted here. Installed firmware should be checked carefully; Siemens guidance for the exact model identifies versions before V4.1.3 for update assessment.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
Structured verification, inspection, documentation and delivery support for 6GK5307-3BL00-2AA3.
Our workflow begins with exact model and suffix verification against the purchase request and available product label. For this SCALANCE X307-3, the team compares the seven RJ45 ports, three multimode SC ports, optical path, topology, management configuration, redundancy settings and firmware. Compatibility is reviewed for the installed system and project without promising automatic interchangeability.
| Service Stage | What Stockoems Checks |
|---|---|
| 1. Model and suffix verification | The complete 6GK5307-3BL00-2AA3 order code, manufacturer label and visible hardware details are compared. |
| 2. Condition confirmation | Condition, connectors, housing, included items, seals and visible handling marks are reviewed from available evidence. |
| 3. Technical compatibility review | Seven RJ45 ports, three Gigabit multimode SC ports, topology, VLANs, PROFINET settings, redundancy role, power and firmware are compared. |
| 4. Product and label photo confirmation | Readable product, nameplate, connector and packaging photographs can be coordinated before shipment. |
| 5. Protective packaging | Antistatic and impact-protective materials are selected to protect the switch housing, optical interfaces and electrical connectors. |
| 6. Worldwide shipping | Available worldwide shipping options are reviewed after destination, quantity and packaging scope are confirmed. |
| 7. Shipment tracking | Tracking details and shipment records are provided for the agreed logistics method. |
| 8. Customs documentation | Commercial invoices, packing information and available customs documentation are prepared for the shipment. |
| 9. Written warranty terms | The applicable one-year commercial warranty scope is documented before order completion. |
| 10. Return authorization | Return conditions and authorization steps are explained in writing before approval. |
| 11. After-sales response | Questions about received condition, documentation and installation evidence are handled through a traceable service channel. |
The service team coordinates label review, technical-document comparison, connector inspection, packaging preparation, logistics communication and after-sales records. We can help procurement teams compare the requested order code with available nameplate evidence and verify that the quoted condition and included items are clearly described. Engineers should supply the current network diagram, optical media details, port map, IP and PROFINET settings, VLANs, redundancy configuration and firmware record where compatibility review is required. We do not promise unverified inventory quantities or fixed delivery dates. Commercial timing is confirmed only after the exact product, required quantity, destination and inspection scope have been reviewed.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
