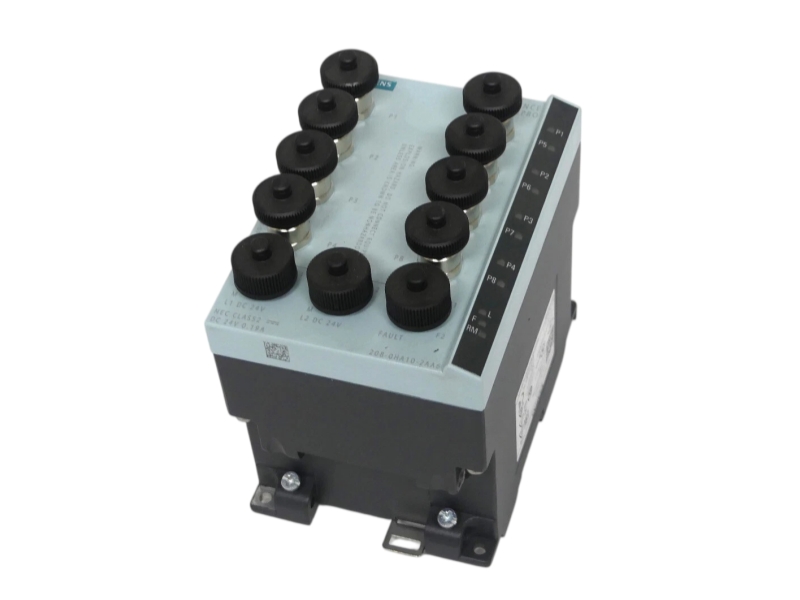

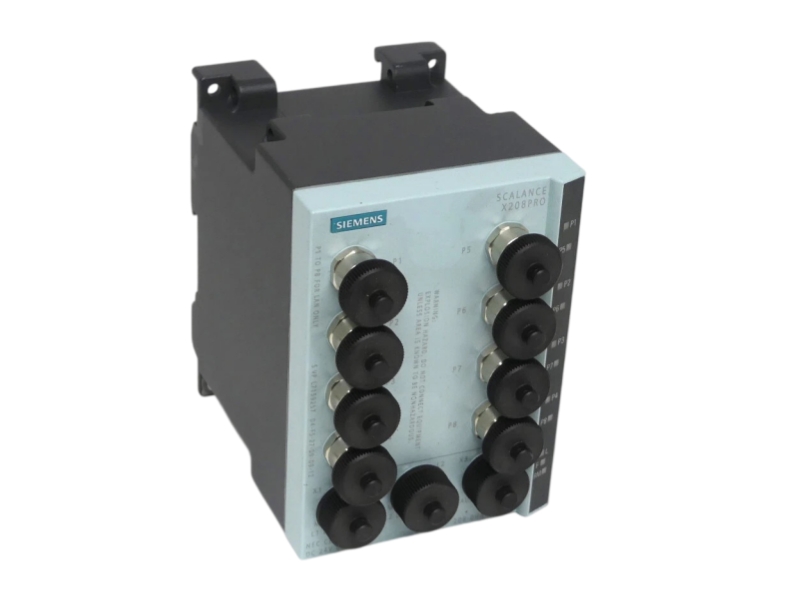

SCALANCE X208PRO managed switch with eight M12 ports
Siemens 6GK5208-0HA10-2AA6 is a SCALANCE X208PRO managed Industrial Ethernet switch for machine-level and plant networks exposed to demanding environments. It provides eight D-coded M12 ports for 10/100 Mbit/s connections and an IP65/67 enclosure for cabinet-free installation. The switch supports PROFINET IO device operation, network management, redundant ring operation, LED diagnostics, an error signaling contact and redundant 24 V DC power. An optional C-PLUG can retain configuration data. Before replacement, verify the complete suffix, M12 connector coding, port assignments, supply arrangement, network parameters, redundancy settings, mounting location and environmental requirements.
| Commercial Item | Current Information |
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Technical Field | Verified Information |
| Manufacturer | Siemens |
| Complete Part Number | 6GK5208-0HA10-2AA6 |
| Product Type | Managed Industrial Ethernet switch |
| Series | SCALANCE X208PRO |
| Network Ports | 8 x M12, 4-pin, D-coded |
| Transfer Rate | 10/100 Mbit/s |
| Network Functions | PROFINET IO device, network management and redundant ring operation |
| Diagnostics | LED diagnostics and error signaling contact |
| Supply Voltage | 24 V DC; rated range 18 to 32 V DC |
| Redundant Power Supply | Supported |
| Maximum Current Consumption | 0.185 A |
| Power Loss | 4.4 W at 24 V DC |
| Protection Rating | IP65/67 |
| Operating Temperature | -40 °C to +70 °C |
| Dimensions | 90 × 125 × 124 mm (W × H × D) |
| Net Weight | 1 kg |

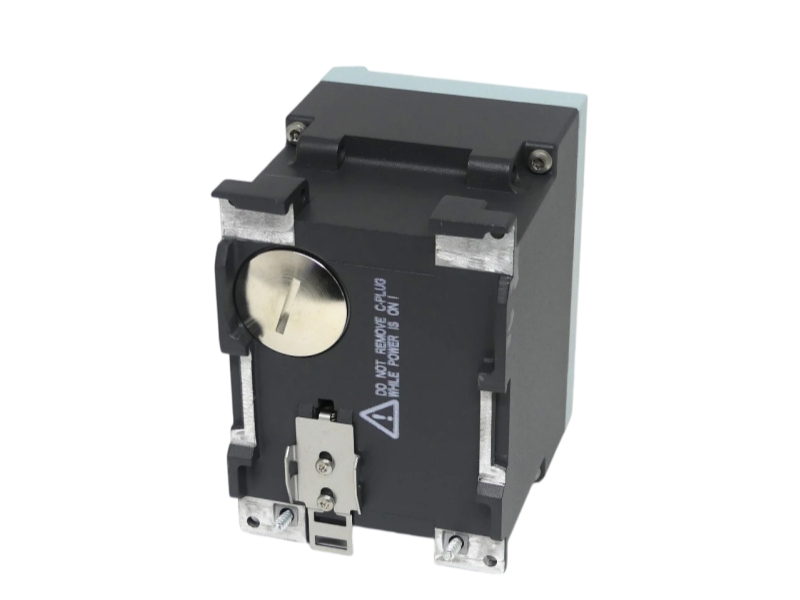

| Configuration Storage | Optional C-PLUG |
| Country of Origin | Germany |
| Application Area | Procurement Guidance |
| System Fit | SCALANCE managed Industrial Ethernet and PROFINET networks |
| Typical Use | Machine-level switching, outdoor-style installations and cabinet-free network nodes |
| Maintenance Role | Exact X208PRO replacement after network and connector verification |
| Configuration Note | Confirm M12 coding, port map, 24 V DC supply, redundancy settings and stored configuration before installation |
The current Siemens technical data sheet confirms the exact product configuration but does not state a lifecycle designation. No Active, Obsolete or Discontinued conclusion is assigned on this page.
6GK5208-0HA10-2AA6 identifies the SCALANCE X208PRO managed switch with its complete Siemens configuration suffix.
The switch provides eight D-coded M12 ports for 10/100 Mbit/s Industrial Ethernet connections.
Its IP65/67 protection supports cabinet-free industrial installation when all connectors and installation requirements are correctly implemented.
Verify the 24 V DC supply, 18 to 32 V operating range, redundant feed arrangement and M12 power connection.
Check the complete order code, M12 coding, port map, redundancy mode, network configuration, mounting position and environmental conditions.
Yes. Request full-unit, label, connector and packaging photographs before shipment.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Structured evidence, practical engineering checks and worldwide shipment coordination
Industrial automation spares are often selected under tight maintenance schedules, where an incorrect suffix, connector or hardware revision can delay commissioning. Our team reviews the buyer’s complete order code, visible nameplate, connector arrangement, housing condition and requested accessories before dispatch. For managed network equipment, we also encourage checks covering port layout, power input, configuration storage and the installed communication architecture.
The following photographs show real Stockoems working environments and demonstrate how our team handles technical review, documentation checks and logistics preparation.
| Review Area | Stockoems Support |
| Identity Verification | Complete order code, suffix and readable label evidence |
| Visible Condition | Housing, connectors, seals, terminals and accessory review |
| Configuration Questions | Buyer-provided network, power, interface and installation details |
| Documentation | Clear photographs and packing evidence for approval |
| Packaging | Protective materials selected for industrial electronic equipment |
| Shipping Coordination | Destination, carrier options and export packing requirements |
After receiving the requested part number, quantity, destination and installed-unit photos, our team organizes the review scope. Available-unit photographs can cover the full enclosure, readable label, connector faces, accessories, seals and packaging. Any compatibility decision remains with the buyer’s engineering team, while Stockoems provides clear commercial evidence and procurement support to make that decision easier.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
