Managed industrial switch with six copper ports and one long-distance single-mode fiber port

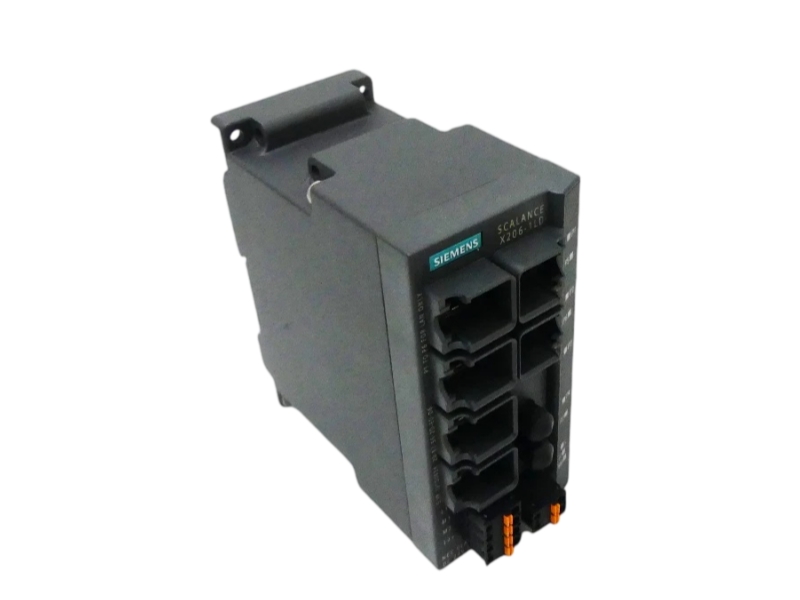

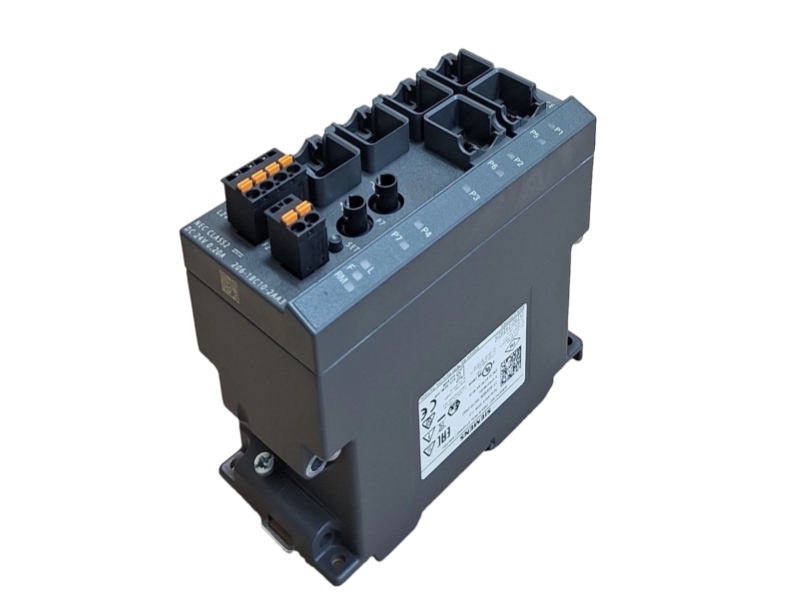

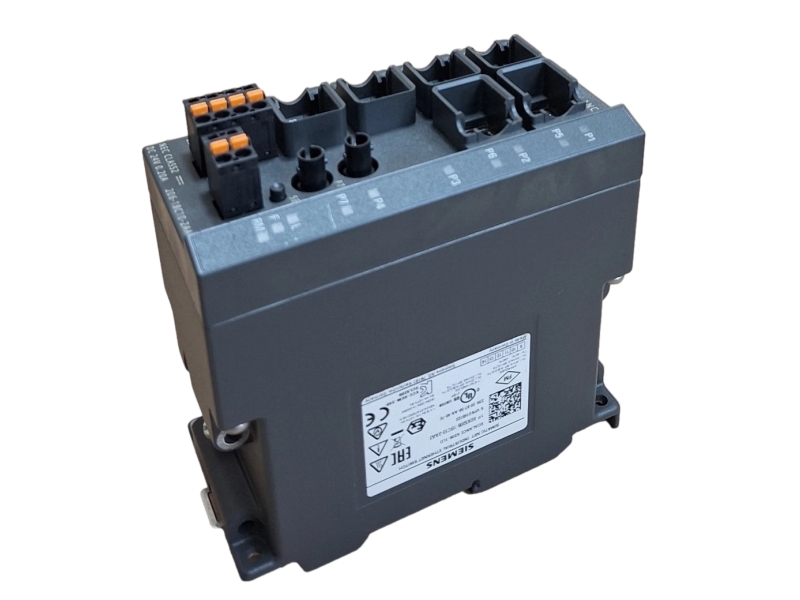

The Siemens 6GK5206-1BC10-2AA3 is a SCALANCE X206-1LD managed Industrial Ethernet switch. Siemens documents six 10/100 Mbit/s RJ45 ports and one 100 Mbit/s single-mode BFOC fiber port for long-distance industrial networking. The unit supports PROFINET IO device operation, network management and an integrated redundancy manager. Its documented hardware also includes a signaling contact, set pushbutton, redundant power input and optional C-PLUG configuration medium. Replacement planning should compare the complete suffix, optical fiber type, connector format, network configuration, C-PLUG data, redundant power wiring and signaling contact before installation.
| Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide delivery options available from China |
| Siemens Product Lifecycle | Product Cancellation |
| Brand | Siemens |
| Complete Part Number | 6GK5206-1BC10-2AA3 |
| Product Type | SCALANCE X206-1LD managed Industrial Ethernet switch |
| Product Family | SCALANCE X-200 managed |
| Copper Ports | 6 × 10/100 Mbit/s RJ45 |
| Fiber Port | 1 × 100 Mbit/s single-mode BFOC |
| Network Role | Managed Industrial Ethernet switch |
| PROFINET Function | PROFINET IO device |
| Management | Network management supported |
| Redundancy | Integrated redundancy manager |
| Power Arrangement | Redundant power input |
| Diagnostics | LED diagnostics and signaling contact with set pushbutton |
| Configuration Medium | C-PLUG optional |
| Siemens Lifecycle | Product Cancellation; spare-part service wording |
| Country of Origin | GERMANY |
| Application | Engineering Relevance |
|---|---|
| Industrial Ethernet Backbone | Combines local copper device connections with a single-mode fiber uplink in managed plant networks. |
| PROFINET Cell Networking | Operates as a managed PROFINET IO device with diagnostics and redundancy functions. |
| Legacy SCALANCE Replacement | Supports like-for-like replacement when the BC10 suffix, BFOC interface and saved configuration match. |
The current Siemens SiePortal page identifies 6GK5206-1BC10-2AA3 as Prod. Cancellation and states that it is a spare part. Siemens lists SCALANCE XC206-2SFP (6GK5206-2BS00-2AC2) as the successor. The exact suffix and installed fiber interface must be reviewed before migration.
It is a Siemens SCALANCE X206-1LD managed Industrial Ethernet switch with copper and single-mode fiber connectivity.
Siemens documents six 10/100 Mbit/s RJ45 ports and one 100 Mbit/s single-mode BFOC port.
Yes. The Siemens product description identifies it as a PROFINET IO device.
Not automatically. The BC10 single-mode optical interface and complete topology must be matched.
The current Siemens SiePortal page shows Prod. Cancellation and identifies the product as a spare part.
Request the full label, port face, fiber connector, power terminals, C-PLUG area, packaging and visible condition.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Practical support for identifying, inspecting, documenting and shipping Siemens 6GK5206-1BC10-2AA3 hardware.
Our team reviews visible product identity, condition, packaging and order information before dispatch. The photographs below show representative engineering, inspection and handling activities.
We compare the complete order code, suffix and readable Siemens label before procurement review.
Available inspection can cover ports, BFOC fiber interface, status LEDs, signaling contact, power terminals and C-PLUG area.
Connector locations, terminal condition and supplied accessories can be photographed for review.
System, topology, project and lifecycle data are treated as purchasing inputs, not a universal replacement guarantee.
Industrial electronics are packed to reduce movement, impact and electrostatic exposure.
Shipping options are reviewed according to quantity, destination country and available service level.
| Review Item | What Can Be Checked |
|---|---|
| Order code | Complete part number, suffix and readable Siemens label details. |
| Visible condition | Enclosure, faceplate, components, connectors and mounting points. |
| Interfaces | ports, BFOC fiber interface, status LEDs, signaling contact, power terminals and C-PLUG area. |
| Configuration information | Available project, topology, firmware and system compatibility inputs. |
| Photo evidence | Full product, label, interfaces, accessories, packaging and condition. |
| Dispatch records | Shipment details and available documentation for the selected logistics service. |
