SCALANCE X206-1 Managed Industrial Ethernet Switch

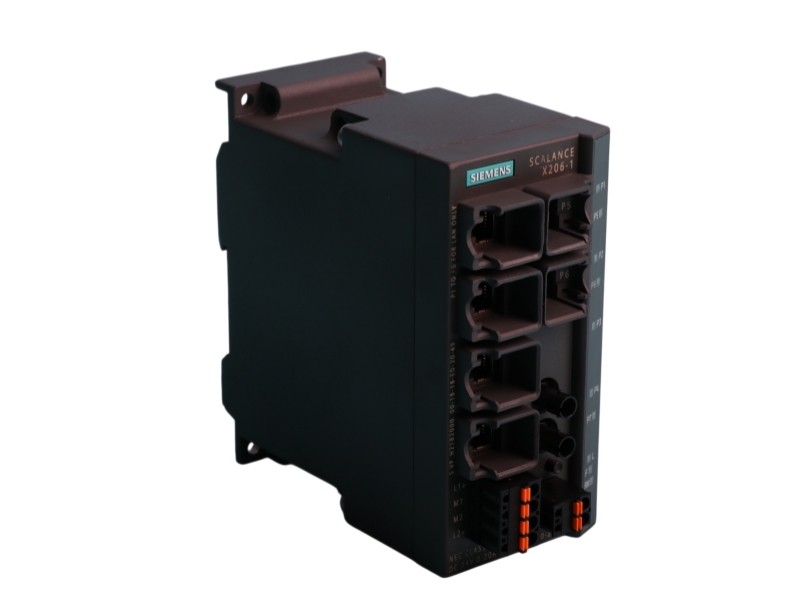

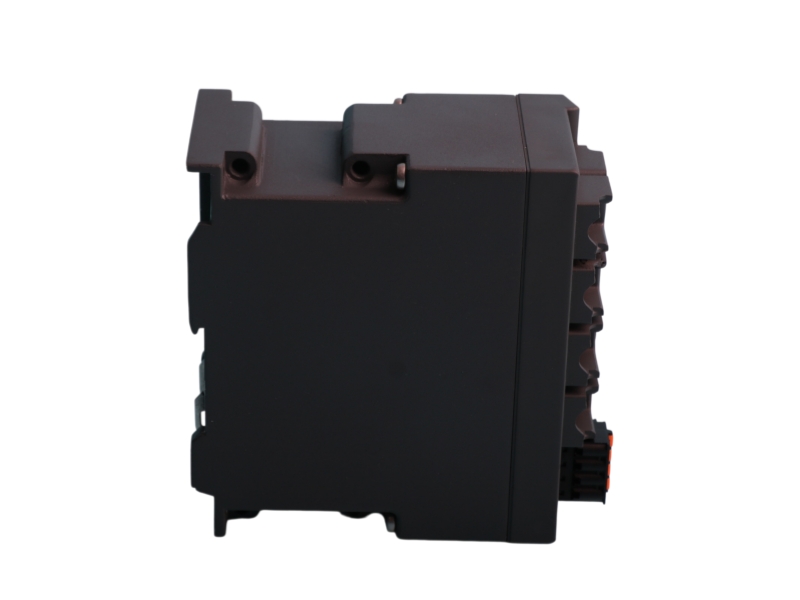

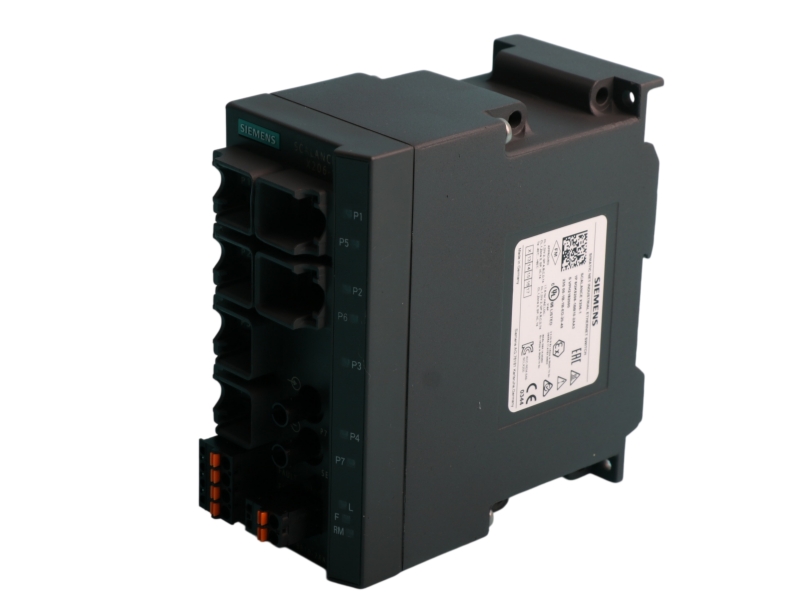

The Siemens 6GK5206-1BB10-2AA3 is a managed Industrial Ethernet switch in the SCALANCE X-200 family, designed for PROFINET and plant-network segmentation. It combines six 10/100 Mbps RJ45 ports with one 100 Mbps multimode ST/BFOC fiber port and supports LED diagnostics, network management, an integrated redundancy manager, redundant 24 V DC supply connection and optional C-PLUG storage. Siemens lists the article as a spare part under PM410: Product cancellation. Procurement teams should verify the exact order number, fiber connector, power terminals, installed firmware, ring-redundancy configuration and mounting arrangement. Suggested successors require engineering review because port layout, mechanical fit and project configuration may differ.
6 × RJ45
10/100 Mbps copper ports
1 × ST/BFOC
100 Mbps multimode fiber
24 V DC
Redundant supply connection
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | PM410: Product cancellation; product cancelled since 01.10.2024 |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Parameter | Official Specification |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6GK5206-1BB10-2AA3 |
| Product Type | SCALANCE X206-1 managed Industrial Ethernet switch |
| Electrical Network Ports | 6 × 10/100 Mbps RJ45 |
| Optical Network Port | 1 × 100 Mbps multimode ST/BFOC |
| Transfer Rate | 10 and 100 Mbit/s |
| PROFINET Function | PROFINET IO device; conformity class B |
| Management | CLI, web-based management, MIB and STEP 7 configuration supported |
| Redundancy | Integrated redundancy manager; Media Redundancy Protocol supported |
| Supply Voltage | 24 V DC |
| Redundant Supply Connection | Yes |
| Maximum Current Consumption | 0.22 A |
| Rated Power Loss | 5.28 W |
| Signaling Contact | 1 connection; 2-pole terminal block |
| C-PLUG Support | Yes; C-PLUG optional |
| Operating Temperature | -40 to +60 °C |
| Protection Rating | IP30 |
| Dimensions (W × H × D) | 60 × 125 × 124 mm |
| Net Weight | 0.78 kg |
| Mounting | 35 mm DIN rail, wall or S7-300 rail |
| Country of Origin | Germany |
| Application | Engineering Relevance |
|---|---|
| PROFINET IO networks | Managed switching, diagnostics and PROFINET IO device integration for industrial cells |
| Mixed copper and fiber links | Six RJ45 ports connect local equipment while the multimode BFOC port supports a fiber segment |
| Redundant ring networks | Integrated redundancy manager and MRP support network availability planning |
| Installed SCALANCE X-200 maintenance | Supports like-for-like spare-part review in existing cabinets and control networks |
Siemens lists 6GK5206-1BB10-2AA3 as a spare part with lifecycle status PM410: Product cancellation and states that the product has been cancelled since 01.10.2024. Siemens identifies SCALANCE XC206-2 or SCALANCE XC206-2SFP as successor options. Port arrangement, fiber interfaces, mounting, firmware functions and project configuration must be reviewed before migration.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Verification, inspection, documentation and logistics support for managed industrial switches.
| Step | Service Item | What We Check |
|---|---|---|
| 1 | Model verification | Complete order number, SCALANCE designation and readable nameplate evidence |
| 2 | Port inspection | RJ45 ports, BFOC connector, terminal blocks and enclosure condition |
| 3 | Compatibility review | Power supply, topology, firmware, mounting and C-PLUG requirements |
| 4 | Photo documentation | Front, ports, terminals, labels, seals and packaging photographs |
| 5 | Protective packing | Connector protection, anti-static handling and impact-resistant packing |
| 6 | Worldwide logistics | Carrier options, tracking and commercial shipping documents |
Request clear evidence of enclosure, ports, terminals, order-code label and package condition.
Commercial condition, agreed warranty terms and shipping information are recorded for review.
Our service team coordinates evidence review and post-shipment questions under agreed terms.
Provide the complete part number, required quantity, destination country, installed topology, power arrangement, firmware information and clear product-label photos.
