Flat managed Industrial Ethernet switch with four RJ45 ports and two fiber-optic ports.

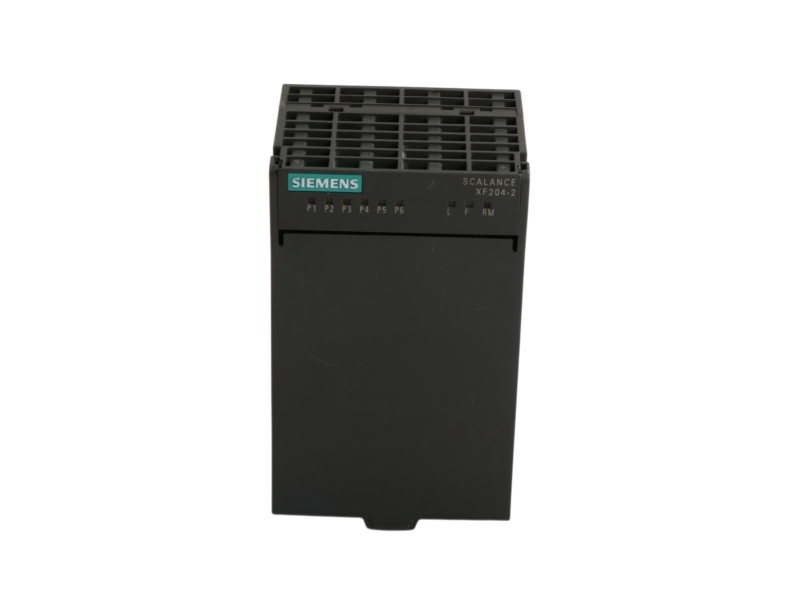

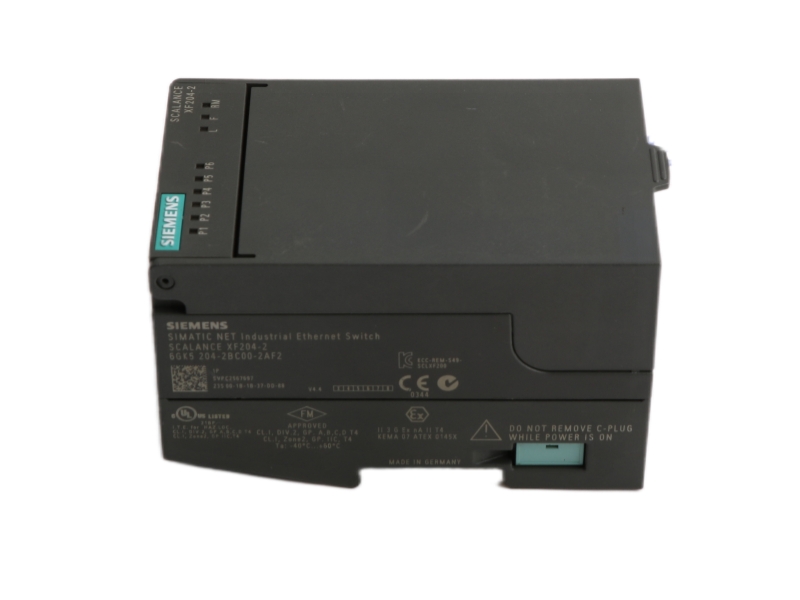

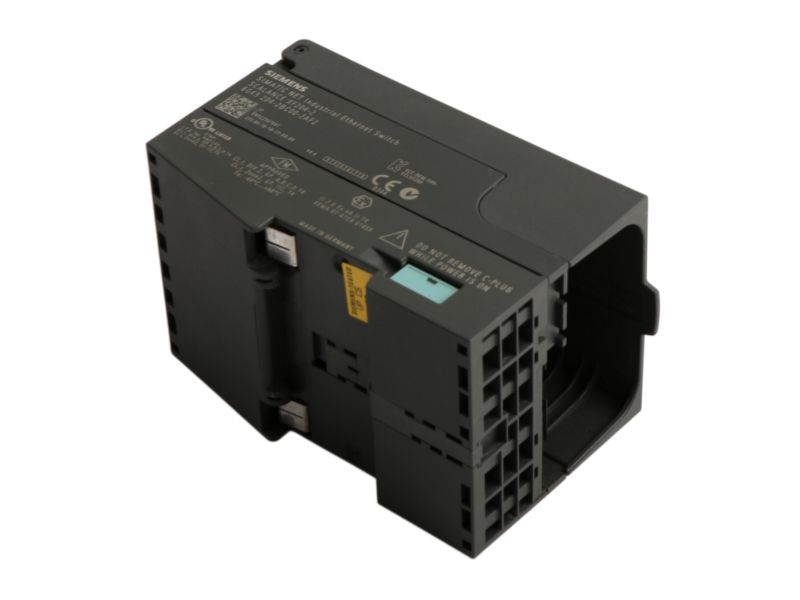

Siemens 6GK5204-2BC00-2AF2 is a flat SCALANCE XF204-2 managed Industrial Ethernet switch for structured machine and plant networks. It combines four 10/100 Mbit/s RJ45 ports with two 100 Mbit/s fiber-optic ports and supports PROFINET IO device functions, web-based management, CLI access and SNMP. Redundant 24 V DC power input, an error signaling contact and an integrated redundancy manager support monitored network operation. Procurement checks should cover the complete suffix, copper and fiber topology, connector media, firmware level, PROFINET functions, redundancy requirements, C-PLUG use, supply arrangement, mounting orientation and the current Phase Out Announce lifecycle.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Official Lifecycle | Phase Out Announce |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Article Number | 6GK5204-2BC00-2AF2 |
| Product Type | SCALANCE XF204-2 managed Industrial Ethernet switch |
| Copper Ports | 4 x RJ45, 10/100 Mbit/s |
| Fiber-Optic Ports | 2 x 100 Mbit/s |
| PROFINET Function | PROFINET IO device; conformity class B |
| Management | CLI, web-based management and SNMP v1/v2/v3 |
| Redundancy | Integrated Redundancy Manager |
| Voltage Supply | Redundant 24 V DC input |
| Supply Voltage Range | 18 to 32 V DC |
| Maximum Current Consumption | 0.22 A |
| Rated Power Loss | 5.28 W |
| Signaling Contact | 2-pole terminal block |
| Power Connector | 4-pole terminal block |
| Removable Storage | Optional C-PLUG |
| Degree of Protection | IP20 |
| Operating Temperature | -40 to +60 °C; maximum +40 °C for horizontal installation |
| Dimensions | 75 x 125 x 73 mm |
| System Role | Managed switching for industrial copper and fiber networks |
|---|---|
| Network Fit | PROFINET IO and standard Industrial Ethernet topologies |
| Typical Use | Machine cells, control cabinets and resilient plant network segments |
| Mounting | 35 mm DIN rail; flat enclosure design |
Siemens currently lists 6GK5204-2BC00-2AF2 with Phase Out Announce status. The official product page also identifies 6GK5208-2BS01-2AF2 as a successor; engineering compatibility must be evaluated for the installed network.
It is a flat SCALANCE XF204-2 managed Industrial Ethernet switch.
It has four 10/100 Mbit/s RJ45 ports and two 100 Mbit/s fiber-optic ports.
Yes. The official data lists PROFINET IO device operation and PROFINET IO diagnostics.
Siemens lists the complete article number as Phase Out Announce.
Check the suffix, media type, firmware, redundancy method, power arrangement, mounting orientation and lifecycle plan.
