Managed SCALANCE X204-2 connectivity for mixed copper and multimode fiber industrial Ethernet cells.

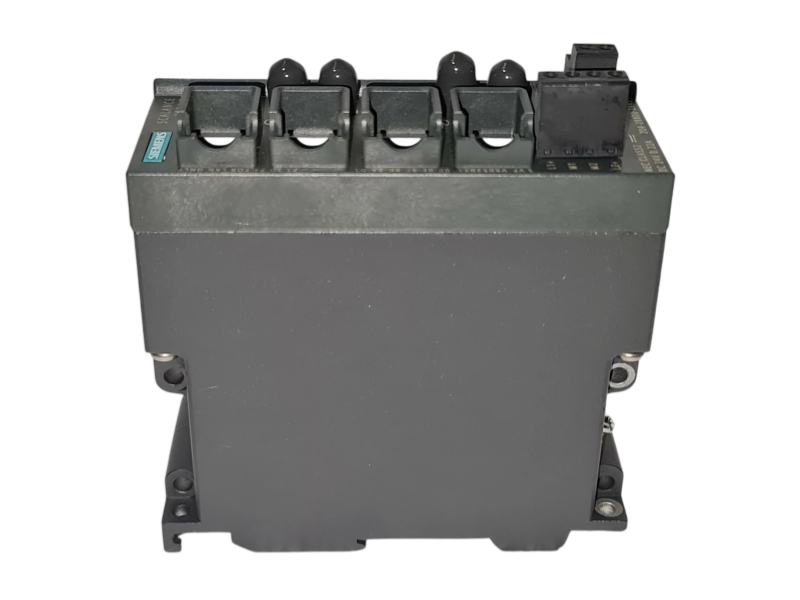

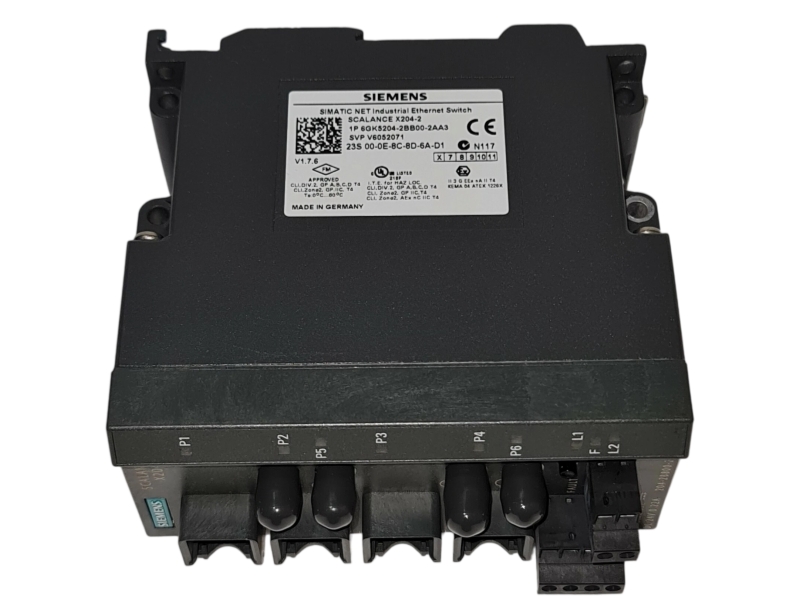

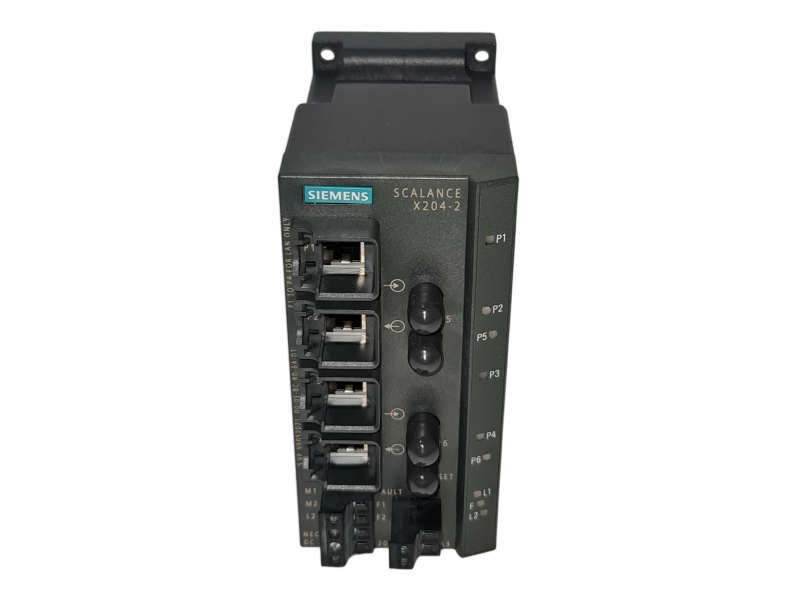

Siemens 6GK5204-2BB00-2AA3 is a SCALANCE X204-2 managed Industrial Ethernet switch. It combines four 10/100 Mbps RJ45 interfaces with two 100 Mbps multimode BFOC fiber interfaces, supporting PROFINET IO device operation, network management and redundant ring architectures. Procurement should be based on the complete suffix because the installed port media, connector style and lifecycle differ across X204-2 variants.
| Manufacturer | Siemens |
| Article number | 6GK5204-2BB00-2AA3 |
| Product family | SCALANCE X204-2 |
| Official lifecycle | PM500:Discontinued Product or end of PLM & Support |
| Lifecycle effective date | End of product lifecycle since 16 January 2014 |
| Official successor | 6GK5204-2BB10-2AA3 |
| Technical item | Verified value | Technical item | Verified value |
|---|---|---|---|
| Copper interfaces | 4 × RJ45, 10/100 Mbps | Fiber interfaces | 2 × BFOC, 100 Mbps multimode |
| Diagnostics | LED diagnostics | Alarm output | Fault signaling contact with set button |
| Supply concept | Redundant voltage supply | PROFINET role | PROFINET IO device |
| Management | Network management supported | Redundancy | Operation in redundant ring |
| Configuration memory | Optional C-PLUG | Net weight | 1.026 kg |
| Packaging | 19.20 × 25.40 × 14.20 cm | EAN | 4019169128230 |
Apply this exact model only after confirming the installed system, electrical design and project documentation.
Use as a managed distribution point for controllers, HMIs and Ethernet devices in an automation cell.
Bridge local RJ45 equipment to multimode fiber links where distance or EMC conditions favor optical media.
Support ring-based network availability when the installed topology and configuration match the X204-2 design.
| Check point | What to confirm | Procurement note |
|---|---|---|
| Port match | Confirm four RJ45 ports and two multimode BFOC ports are required. | BFOC is not interchangeable with SC, LC or SFP optics. |
| Network role | Verify PROFINET IO device and management functions against the project design. | Check configuration backups before replacement. |
| Power and signaling | Match redundant supply wiring and fault-contact use. | Review terminal assignment before energizing. |
| C-PLUG | Confirm whether an installed C-PLUG must be transferred. | Handle configuration media under plant procedures. |
| Migration | Evaluate official successor 6GK5204-2BB10-2AA3 separately. | Do not assume drop-in replacement without port and firmware checks. |
Siemens identifies 6GK5204-2BB00-2AA3 as PM500:Discontinued Product or end of PLM & Support, effective 16 January 2014. The official successor is 6GK5204-2BB10-2AA3; migration still requires an engineering review.
Four 10/100 Mbps RJ45 ports and two 100 Mbps multimode BFOC fiber ports.
No. Siemens describes it as a managed Industrial Ethernet switch with network-management functions.
Yes, the official description includes operation in a redundant ring. Verify the site configuration and protocol settings.
Yes. Siemens lists it as a PROFINET IO device.
Confirm BFOC fiber media, RJ45 port count, supply wiring, fault contact and any C-PLUG configuration.
PM500:Discontinued Product or end of PLM & Support since 16 January 2014.
Send the complete part number, required quantity, destination and any nameplate photos. We will check condition, compatibility and delivery options.
We verify the exact 6GK5204-2BB00-2AA3 suffix, port media, configuration requirements and documented successor path before supply.
| Review area | Evidence checked | Why it matters |
|---|---|---|
| Identity review | Complete MLFB and hardware condition | Avoids mixing similar X204-2 variants |
| Network fit | Port media, connectors and topology | Protects fiber and ring compatibility |
| Configuration check | C-PLUG and management settings | Supports controlled replacement |
| Dispatch control | Packaging and shipping documentation | Improves international delivery readiness |
We can review labels, project constraints, quantity, delivery destination and documentation requirements before quotation.
