Siemens 6GK5204-2AA00-2YF2 SCALANCE XF204-2BA DNA Y-Switch

Siemens 6GK5204-2AA00-2YF2 Managed IE Y-Switch with Dual BusAdapter Interfaces

Inquiry now

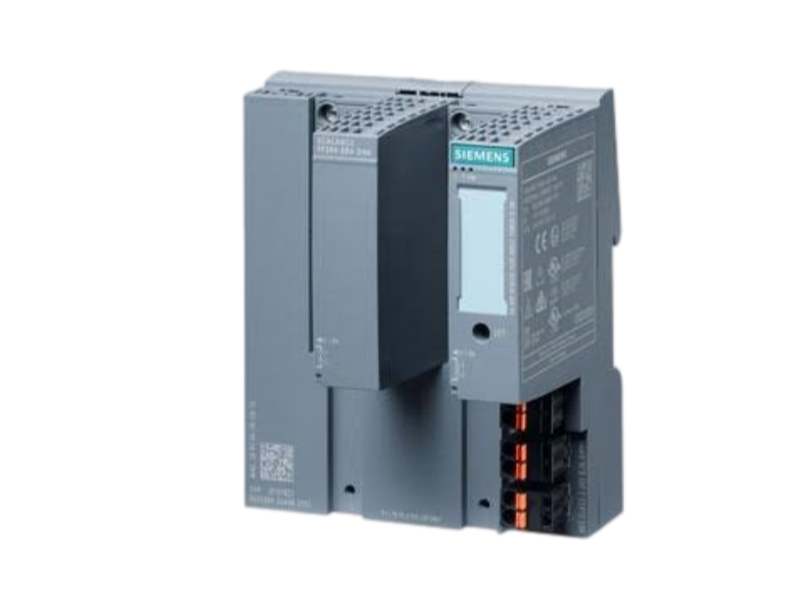

Siemens 6GK5204-2AA00-2YF2 SCALANCE XF204-2BA DNA Y-Switch

Managed Industrial Ethernet Y-switch with PROFINET integration

Product Overview

Siemens 6GK5204-2AA00-2YF2 is a SCALANCE XF204-2BA DNA managed Industrial Ethernet Y-switch for redundant industrial network structures. The official Siemens catalog specifies four 10/100 Mbit/s ports, two BusAdapter interfaces, PROFINET device functionality, an error signaling contact and redundant 24 V DC supply. It is IEC 62443-4-2 certified, uses conformal coating and is rated for operation from -40 °C to +70 °C. The unit is supplied without BusAdapters, so procurement must separately verify the required adapter types, network topology, firmware, project configuration, power connections and C-PLUG requirements before installation or replacement.

Commercial Status

Product Condition	Original new
Availability	In stock
Official Lifecycle	PM300: Active Product
Warranty	With 1 year warranty
Shipping	Worldwide shipping options available

Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.

Verified Technical Data

Manufacturer	Siemens
Complete Part Number	6GK5204-2AA00-2YF2
Product Type	Managed Industrial Ethernet Y-switch
Product Family	SCALANCE XF204-2BA DNA
Ethernet Ports	4 × 10/100 Mbit/s
BusAdapter Interfaces	2
Network Integration	PROFINET device
Power Supply	Redundant 24 V DC
Diagnostics	Error signaling contact
Operator Control	Set pushbutton
Security Certification	IEC 62443-4-2 certified
Environmental Protection	Conformal coating
Operating Temperature	-40 °C to +70 °C
C-PLUG	Optional
Supply Scope	Supplied without BusAdapter
Net Weight	0.300 kg
Country of Origin	GERMANY

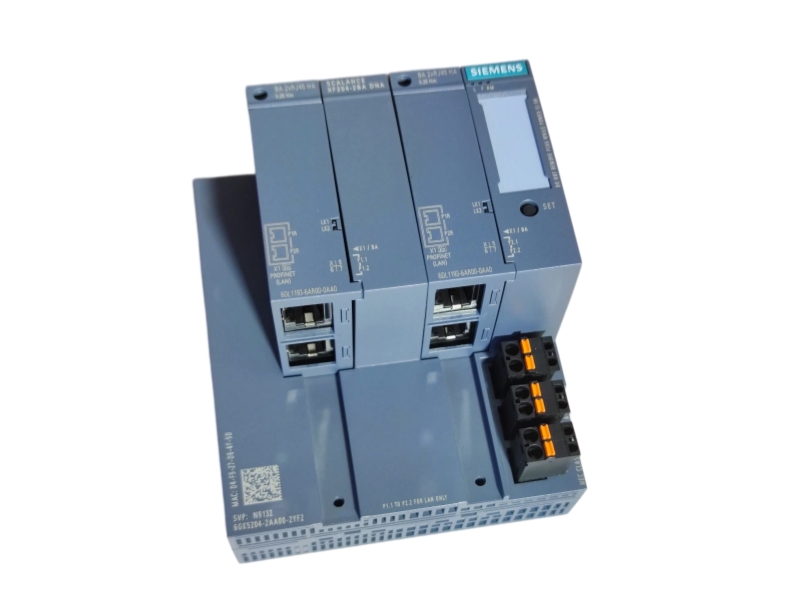

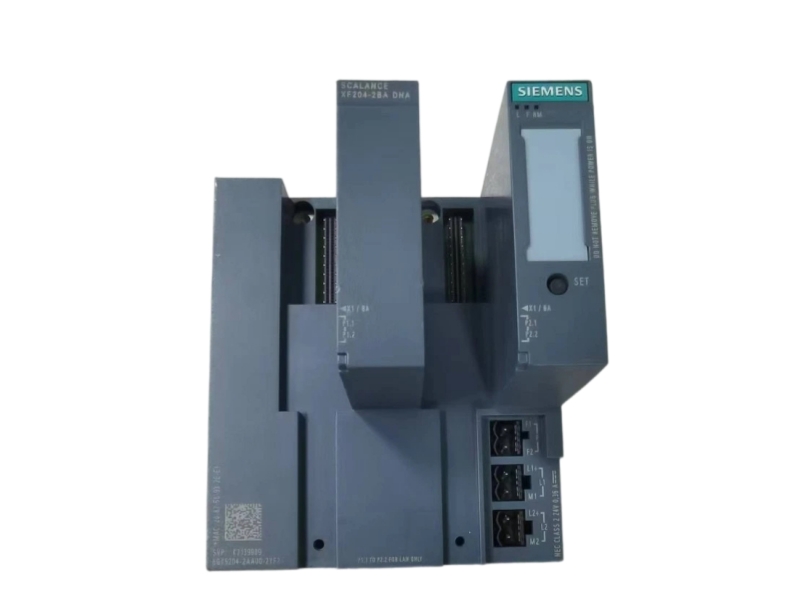

Product Photo Evidence

System Fit and Applications

Applicable Network	Industrial Ethernet and PROFINET networks
System Role	Managed Y-switching in redundant network structures
Typical Applications	Process automation, distributed control and high-availability network segments
Maintenance Use	Exact replacement or expansion after configuration review
Configuration Priority	BusAdapters, topology, firmware, power redundancy and C-PLUG data

Compatibility and Procurement Checks

Verify the complete order number and suffix 6GK5204-2AA00-2YF2.
Confirm the required BusAdapter types because the unit is supplied without BusAdapters.
Review all four 10/100 Mbit/s port assignments and both BusAdapter interfaces.
Check redundant 24 V DC wiring, signaling contact and grounding arrangements.
Compare PROFINET device configuration, firmware and network topology.
Confirm whether an existing C-PLUG contains required configuration data.
Review product-label and packaging photographs before shipment.

Lifecycle Note

Siemens lists 6GK5204-2AA00-2YF2 as PM300: Active Product. This status applies to the exact order number. BusAdapter selection, firmware, C-PLUG data and network configuration still require project-specific verification.

Frequently Asked Questions

What does 6GK5204-2AA00-2YF2 identify?

It identifies the Siemens SCALANCE XF204-2BA DNA managed Industrial Ethernet Y-switch.

Which interfaces are provided?

The official catalog specifies four 10/100 Mbit/s ports and two BusAdapter interfaces.

Are BusAdapters included?

No. Siemens states that the unit is supplied without BusAdapter, so the required adapter types must be selected separately.

How is the switch powered?

The official catalog specifies a redundant 24 V DC power supply.

What is the official lifecycle status?

Siemens lists the exact order number as PM300: Active Product.

What should be reviewed before replacement?

Check BusAdapter types, port use, PROFINET configuration, firmware, C-PLUG data, power wiring and the complete label.
