A rugged managed Industrial Ethernet switch with one copper and three optical push-pull network ports.

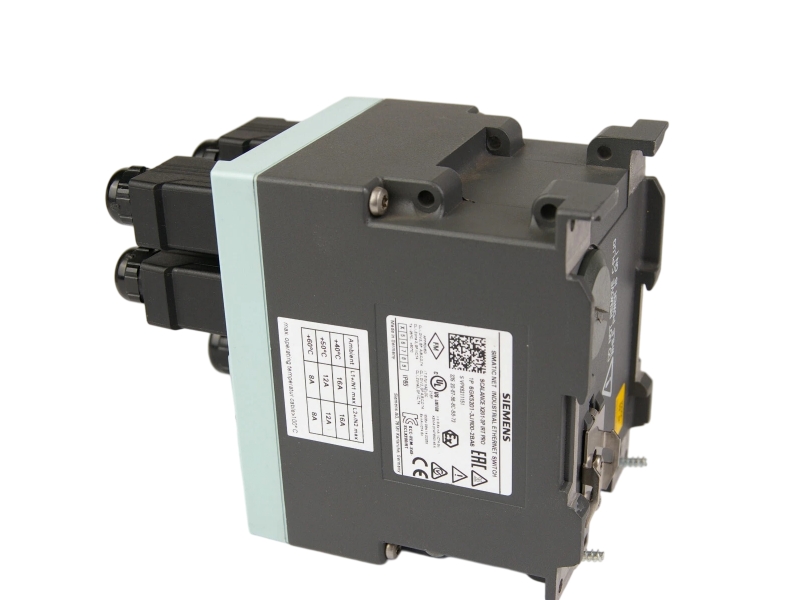

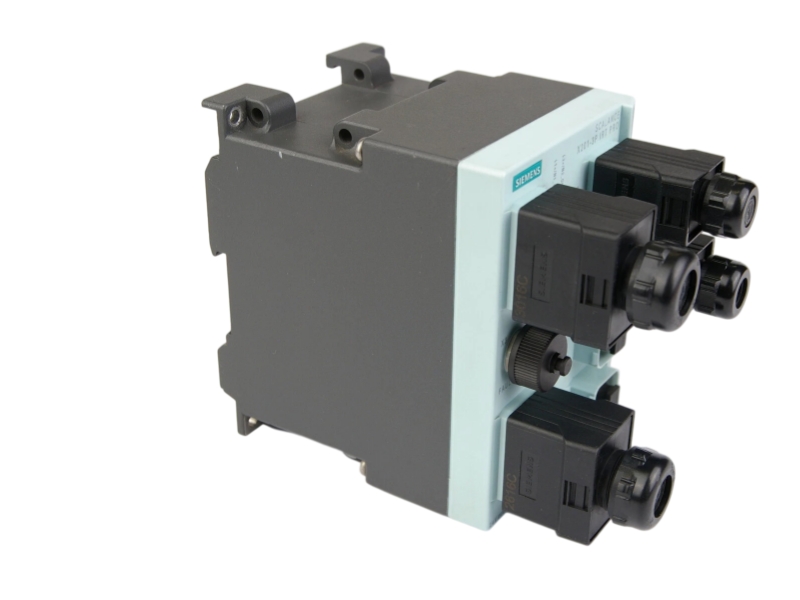

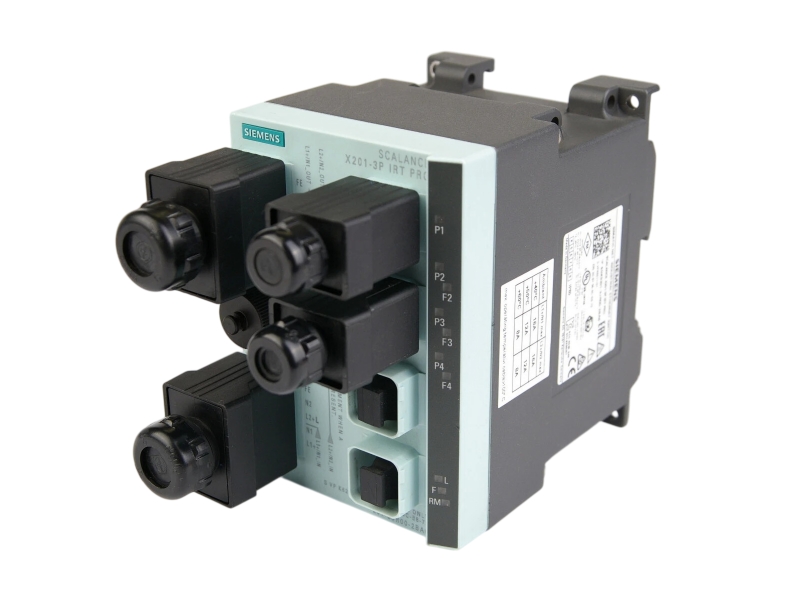

The Siemens 6GK5201-3JR00-2BA6 is a SCALANCE X201-3P IRT PRO managed Industrial Ethernet switch for decentralized PROFINET installations. Its rugged push-pull connection system combines one 10/100 Mbit/s copper RJ45 port with three 100 Mbit/s SC-RJ optical ports, network management and integrated redundancy functions.
| Item | Verified identification |
|---|---|
| Manufacturer | Siemens |
| Product line | SCALANCE X / PROFINET IRT / IP65/67 |
| Product designation | SCALANCE X201-3P IRT PRO Switch |
| Article number | 6GK5201-3JR00-2BA6 |
| Country of origin | GERMANY |
| Parameter | Officially documented value |
|---|---|
| Product type | SCALANCE X201-3P IRT PRO managed switch |
| Electrical network port | 1 × 10/100 Mbit/s push-pull RJ45 |
| Optical network ports | 3 × 100 Mbit/s push-pull SC-RJ for POF |
| PROFINET capability | PROFINET IO device, IRT switch, conformity class C |
| Supply voltage | 24 V DC; permissible range 18 ... 32 V |
| Rated power loss | 7.92 W |
| Protection | IP65/67 product design; Siemens technical table lists IP65 |
| Management | Web-based management, CLI, SNMP and STEP 7 configuration |
| Redundancy | MRP and HRP redundancy-manager functions |
| Dimensions (W × H × D) | 90 × 125 × 124 mm |
| Net weight | 1 kg |
| Successor | 6GK5201-3JR10-2BA6 |
Use current photographs to verify the exact order number, interface configuration and physical condition before procurement approval.
 |
 |
 |
| Application | Engineering relevance |
|---|---|
| PROFINET IRT cells | Connects managed real-time Ethernet nodes in synchronized automation networks. |
| Decentralized machine networking | IP65/67-style construction supports installation close to machinery. |
| Copper-to-optical transition | Combines one electrical port with three POF optical ports. |
| Redundant ring topologies | Supports engineered MRP and HRP redundancy configurations. |
Siemens states Product Cancellation for 6GK5201-3JR00-2BA6, effective 09.11.2023, and identifies 6GK5201-3JR10-2BA6 as the successor. Successor use requires confirmation of firmware, connector layout, approvals and project configuration.
The switch has one 10/100 Mbit/s push-pull RJ45 port and three 100 Mbit/s push-pull SC-RJ optical ports.
Yes. Siemens identifies it as a managed PROFINET IRT switch with conformity class C.
The documented supply is 24 V DC with an 18 ... 32 V permissible range.
Siemens identifies 6GK5201-3JR10-2BA6; configuration and hardware compatibility must be reviewed before replacement.
Send the complete part number, quantity, destination and current nameplate photographs for an exact review.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
A structured review for exact identity, visible hardware condition, interface integrity and installed-system fit.
We compare the complete Siemens code, product marking and visible revision details.
Current photos can document push-pull ports, optical media, 24 V supply, firmware and stored switch configuration.
Sensitive industrial hardware is prepared for controlled handling and global shipment.
| Step | What we check | Customer input |
|---|---|---|
| 1 · Part identification | Full article number and visible product marking | |
| 2 · System fit | push-pull ports, optical media, 24 V supply, firmware and stored switch configuration | |
| 3 · Commercial review | Quantity, availability and warranty terms | |
| 4 · Dispatch planning | Packing, shipment route and documentation |
Complete part number, quantity, destination, network topology, fiber type, STEP 7/TIA release and complete switch photos.
Send the complete part number, quantity, destination and current nameplate photographs for an exact review.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
