Managed IRT switch with one copper port and three polymer optical fiber ports
The Siemens 6GK5201-3BH00-2BA3 is a SCALANCE X201-3PIRT managed Industrial Ethernet switch for PROFINET IRT network structures. Siemens documents one 10/100 Mbit/s RJ45 port and three 100 Mbit/s POF SC RJ ports. The device supports PROFINET IO, network management and redundancy functions, with a signaling contact, set pushbutton, redundant power input and optional C-PLUG configuration medium. Procurement checks should cover the full BH00 suffix, polymer optical fiber interfaces, IRT topology, saved configuration, power wiring and the successor engineering impact before installation.
| Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide delivery options available from China |
| Siemens Product Lifecycle | Product Cancellation |
| Brand | Siemens |
| Complete Part Number | 6GK5201-3BH00-2BA3 |
| Product Type | SCALANCE X201-3PIRT managed Industrial Ethernet switch |
| Product Family | SCALANCE X-200 IRT |
| Copper Port | 1 × 10/100 Mbit/s RJ45 |
| Optical Ports | 3 × 100 Mbit/s POF SC RJ |
| Network Role | Managed Industrial Ethernet IRT switch |
| PROFINET Function | PROFINET IO and IRT network operation |
| Management | Network management supported |
| Redundancy | Integrated redundancy functions |
| Power Arrangement | Redundant power input |
| Diagnostics | LED diagnostics and signaling contact with set pushbutton |
| Configuration Medium | C-PLUG optional |
| Siemens Lifecycle | Product Cancellation; spare-part service wording |
| Country of Origin | GERMANY |
| Application | Engineering Relevance |
|---|---|
| PROFINET IRT Cells | Connects copper and POF network segments where deterministic IRT communication is required. |
| Optical Machine Networks | Provides three POF SC RJ ports for short-range industrial optical links. |
| Legacy SCALANCE Replacement | Supports exact-order replacement after confirming BH00 suffix, IRT topology and configuration. |
The current Siemens SiePortal page identifies 6GK5201-3BH00-2BA3 as Prod. Cancellation and states that it is a spare part. Siemens lists 6GK5201-3BH10-2BA3 as the successor. IRT configuration, POF interfaces and the complete suffix must be checked before migration.
It is a Siemens SCALANCE X201-3PIRT managed Industrial Ethernet switch for PROFINET IRT networks.
Siemens documents one 10/100 Mbit/s RJ45 port and three 100 Mbit/s POF SC RJ ports.
Yes. The product designation and Siemens description identify it for IRT-capable PROFINET operation.
Not directly. The three POF interfaces, IRT behavior and saved network configuration must be preserved.
The current Siemens SiePortal page shows Prod. Cancellation and identifies the product as a spare part.
Request the complete label, port face, POF connectors, power terminals, C-PLUG area and visible condition.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Practical support for identifying, inspecting, documenting and shipping Siemens 6GK5201-3BH00-2BA3 hardware.
Our team reviews visible product identity, condition, packaging and order information before dispatch. The photographs below show representative engineering, inspection and handling activities.
Two-person checking supports order-code and application review.
Labels, included items and protective packing can be documented.

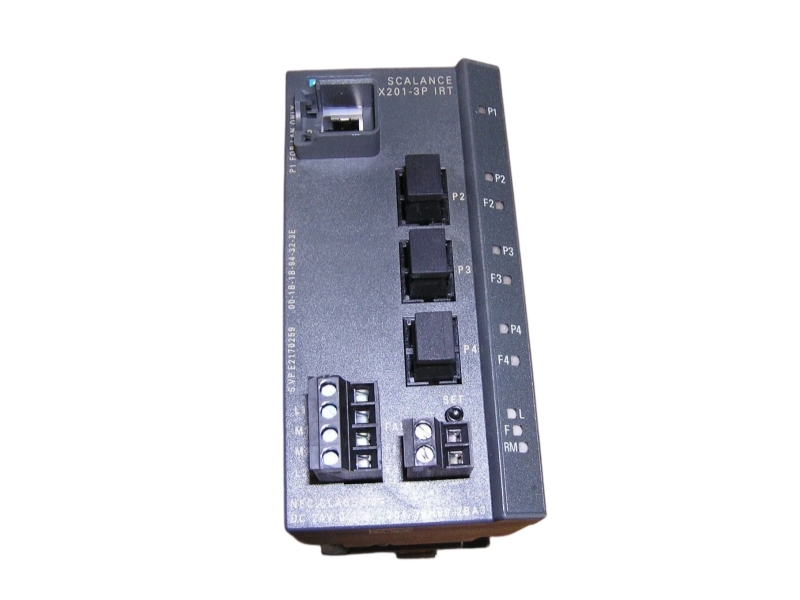

Close-up review covers RJ45 port, three POF SC RJ interfaces, status LEDs, power terminals, signaling contact and C-PLUG area.

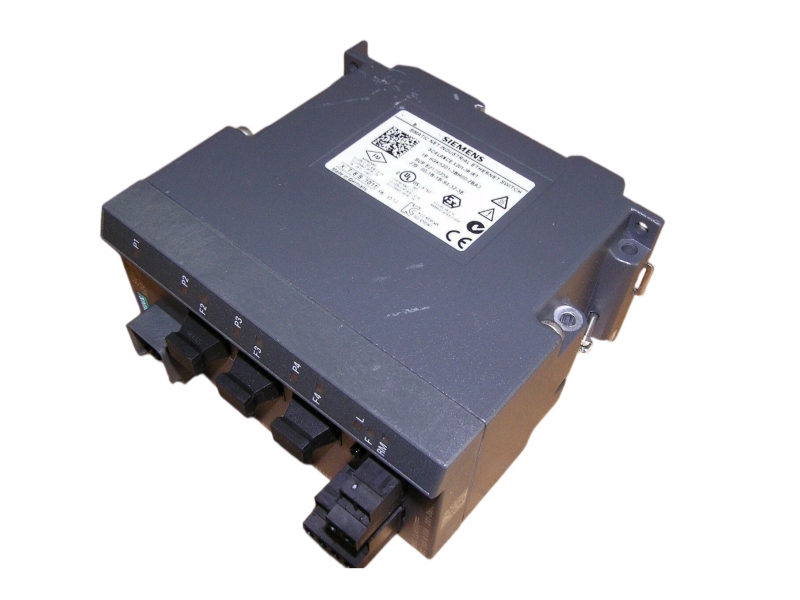

We compare the complete order code, suffix and readable Siemens label before procurement review.
Available inspection can cover RJ45 port, three POF SC RJ interfaces, status LEDs, power terminals, signaling contact and C-PLUG area.
Connector locations, terminal condition and supplied accessories can be photographed for review.
System, topology, project and lifecycle data are treated as purchasing inputs, not a universal replacement guarantee.
Industrial electronics are packed to reduce movement, impact and electrostatic exposure.
Shipping options are reviewed according to quantity, destination country and available service level.
| Review Item | What Can Be Checked |
|---|---|
| Order code | Complete part number, suffix and readable Siemens label details. |
| Visible condition | Enclosure, faceplate, components, connectors and mounting points. |
| Interfaces | RJ45 port, three POF SC RJ interfaces, status LEDs, power terminals, signaling contact and C-PLUG area. |
| Configuration information | Available project, topology, firmware and system compatibility inputs. |
| Photo evidence | Full product, label, interfaces, accessories, packaging and condition. |
| Dispatch records | Shipment details and available documentation for the selected logistics service. |
