Six 10/100 Mbit/s RJ45 ports and two 100 Mbit/s multimode SC ports for dependable copper-and-fiber Industrial Ethernet connectivity.

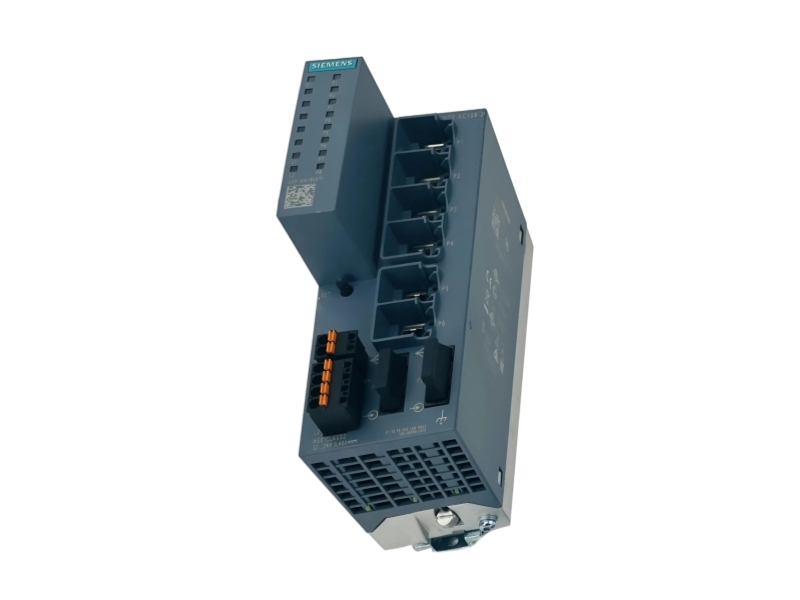

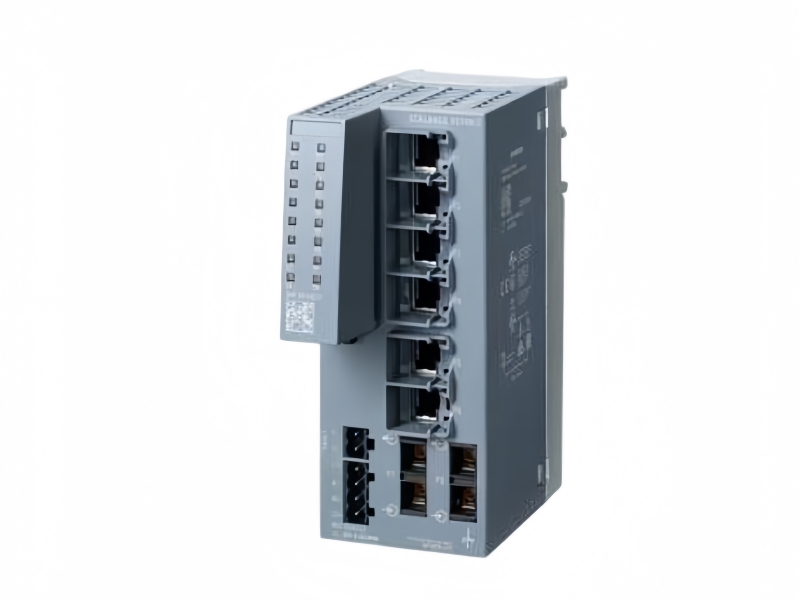

The Siemens 6GK5106-2BD00-2AC2 is a SCALANCE XC106-2 unmanaged Industrial Ethernet switch. Its exact configuration combines six 10/100 Mbit/s electrical RJ45 ports with two 100 Mbit/s multimode SC fiber ports. Siemens specifies LED diagnostics, an error-signaling contact with a set pushbutton and redundant power supply capability. The device is suited to straightforward industrial network expansion where managed-switch configuration is not required but copper and multimode-fiber connections must coexist.
| Manufacturer | Siemens |
|---|---|
| Article number | 6GK5106-2BD00-2AC2 |
| Product family | SCALANCE XC-100 unmanaged |
| Product Lifecycle (PLM) | PM300: Active Product |
| Parameter | Official specification |
|---|---|
| Product designation | SCALANCE XC106-2 unmanaged IE switch |
| Electrical Ethernet ports | 6 × 10/100 Mbit/s RJ45 |
| Optical Ethernet ports | 2 × 100 Mbit/s multimode SC |
| Diagnostics | LED diagnostics |
| Signaling | Error-signaling contact with set pushbutton |
| Power arrangement | Redundant power supply |
| Net weight | 0.500 kg |
| Country of origin | Germany |
Connect local 10/100 Mbit/s RJ45 devices to multimode SC fiber links in an industrial cell or line network.
Add fixed Ethernet ports without requiring switch-management configuration, while retaining local LED diagnostics and fault signaling.
Use the redundant supply inputs and signaling contact as part of a control-cabinet network availability concept.
Siemens lists 6GK5106-2BD00-2AC2 as PM300: Active Product. Availability, current documentation and project-specific compatibility should still be verified for each order.
It is a SCALANCE XC106-2 unmanaged Industrial Ethernet switch with six RJ45 ports and two multimode SC fiber ports.
No. Siemens identifies this exact article as an unmanaged IE switch in the SCALANCE XC-100 family.
The device has two 100 Mbit/s multimode SC ports. The SC connector configuration should be checked against the installed fiber plant.
Siemens specifies LED diagnostics plus an error-signaling contact with a set pushbutton.
The Siemens product catalogue states PM300: Active Product for 6GK5106-2BD00-2AC2.
Send the exact article number, quantity, condition requirement, destination and application details. We will check availability, compatibility points, worldwide delivery options and warranty terms.
Our service focuses on exact-code verification, condition transparency and practical compatibility checks for industrial automation parts. For this SCALANCE XC106-2 switch, the complete suffix and the SC optical-port version are checked before an offer is prepared.
A sales coordinator checks the full article number, quantity, destination, delivery priority and documentation needs. This reduces the risk of a quotation based on a shortened Siemens code or an incorrect hardware variant.
The request is compared with verified manufacturer data. For 6GK5106-2BD00-2AC2, key checks include the 6 × RJ45 and 2 × multimode SC port arrangement, unmanaged function, signaling contact and redundant supply design.
Packaging, export documentation and shipping options are coordinated according to the destination and urgency. The offer states the supplied condition, lead-time basis and warranty terms for stakeholder review.
We retain the complete code 6GK5106-2BD00-2AC2 throughout the inquiry. Nameplate photos, packaging labels and available documentation can be cross-checked so the requested variant is not confused with a related family member.
Compatibility is assessed against the buyer’s network information. Copper port count, multimode SC fiber, link speed, topology, redundant power and fault-signaling requirements are reviewed as procurement checkpoints.
Where available, visual evidence can be requested for the label, housing, terminals, interfaces and package contents. Condition, lead time, delivery method and warranty coverage are clarified in the quotation.
| Request item | Why it matters |
|---|---|
| Exact article number and quantity | Prevents suffix errors and supports an accurate availability check. |
| Installed system and application | Supports review of the intended configuration, load or network role. |
| Photos of label and interfaces | Helps compare identity, enclosure condition, terminals and connection points. |
| Destination and required date | Allows suitable global shipping and documentation options to be evaluated. |
| Condition and warranty requirements | Ensures the quotation clearly states the offered basis and support terms. |
Provide the full code, quantity, application details, condition preference and destination. Our team will review availability, key compatibility points, delivery options and warranty terms.
