Five-pole axial field-assembly connector for reliable ET 200 power wiring.

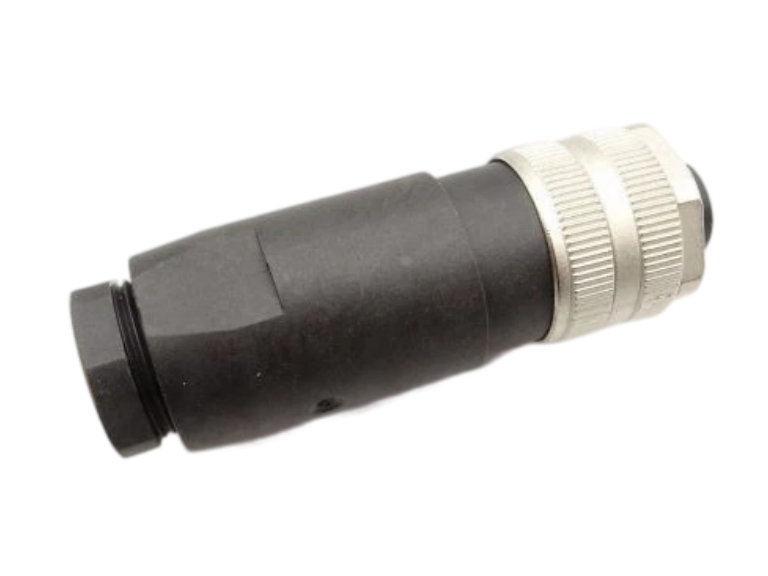

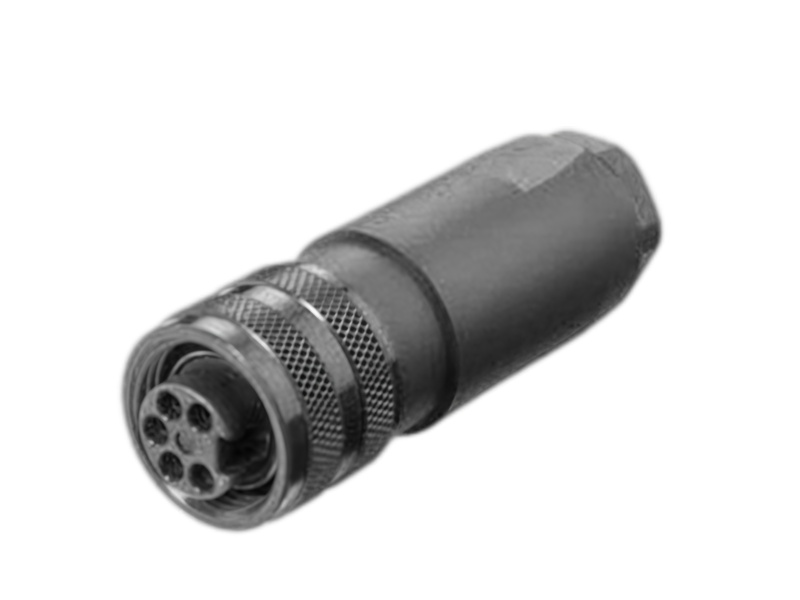

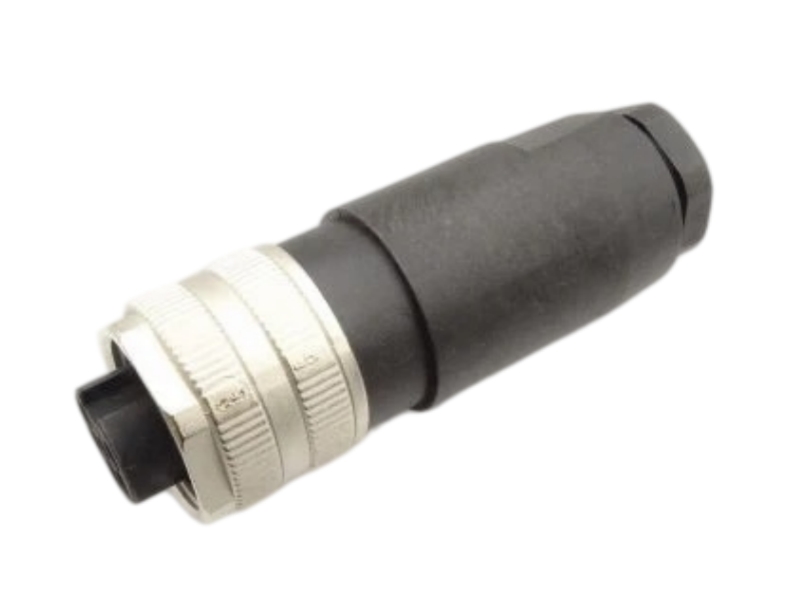

Siemens 6GK1905-0FB00 is a 7/8-inch connection plug intended for field assembly with ET 200 equipment. It uses a female, five-pole contact insert, an axial 180-degree cable outlet and integrated screw contacts for five-core power cable. The metal enclosure and IP65/IP67 protection support robust industrial installation when the connector is assembled and sealed in accordance with the equipment documentation.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6GK1905-0FB00 |
| Product Type | ET 200 7/8-inch female connector |
| Product Lifecycle | PM300: Active Product |
| Package Quantity | 5 units per package |
| Country of Origin | Germany |
| Parameter | Official Specification |
|---|---|
| Contact insert | Female, 5-pole |
| Electrical connection | Integrated screw contacts for 5-core power cables |
| Rated current | 9 A |
| Cable outlet | Axial / 180 degrees |
| Conductor cross-section | 1.5 mm2 |
| Connectable cable diameter | 10 to 12 mm |
| Enclosure and locking | Metal enclosure; screwed joint |
| Maximum tightening torque | 1.5 N m |
| Protection rating | IP65 / IP67 |
| Dimensions | 27 x 27 x 83 mm |
| Net weight | 50 g |
| Operating temperature | -40 to +70 degrees C |
The connector is designed for ET 200 field assembly and can be used for industrial power connections where Siemens equipment documentation explicitly specifies this straight 7/8-inch female connector. Typical procurement contexts include decentralized I/O stations and distributed-drive systems requiring an axial power connector.
Confirm the exact suffix, female contact insert, five-pole arrangement, axial outlet, 1.5 mm2 conductor size, 10 to 12 mm cable diameter, mating interface and package quantity. Do not assume that angled connectors or Siemens 6GK1905-0FA00 are interchangeable.
PM300: Active Product. Siemens currently lists this exact article number with that lifecycle status. Verify current supply conditions and the five-unit package quantity before procurement.
It is a field-assembly 7/8-inch connection plug for ET 200 equipment, supplied with a female five-pole contact insert.
The exact 6GK1905-0FB00 connector uses a female contact insert.
It provides five poles with integrated screw contacts for a five-core power cable.
Siemens specifies a 1.5 mm2 conductor cross-section and a connectable cable diameter of 10 to 12 mm.
The connector is rated IP65/IP67 when properly assembled and sealed.
Check the full article number, connector gender, pole count, cable dimensions, equipment manual and required package quantity.
