PCI Express communications processor for connecting PC stations to PROFIBUS networks.

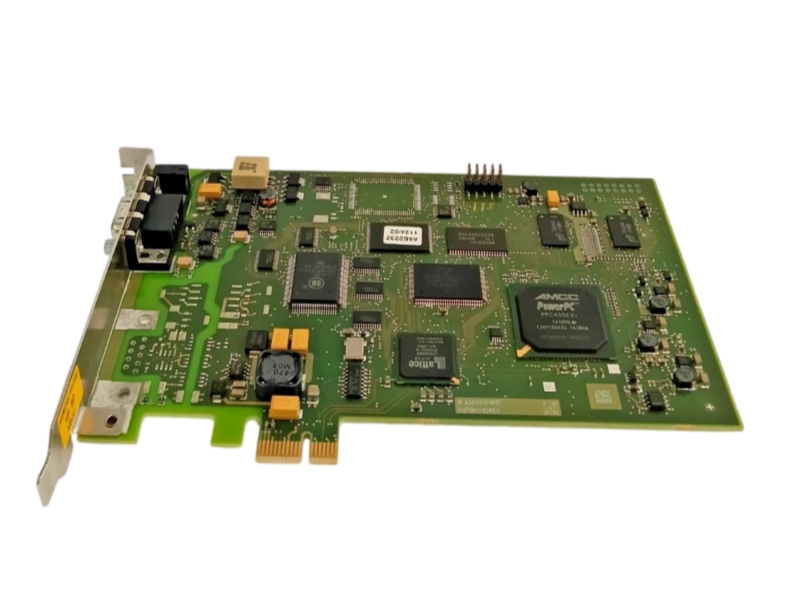

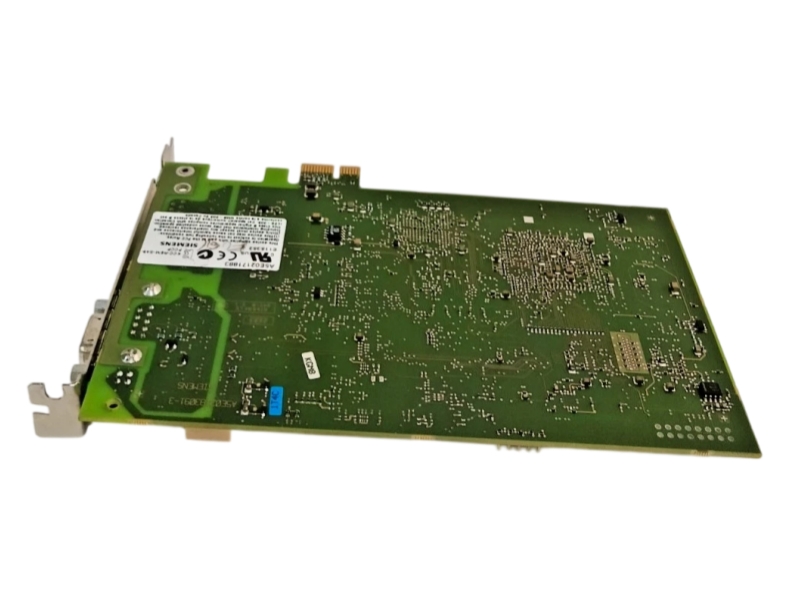

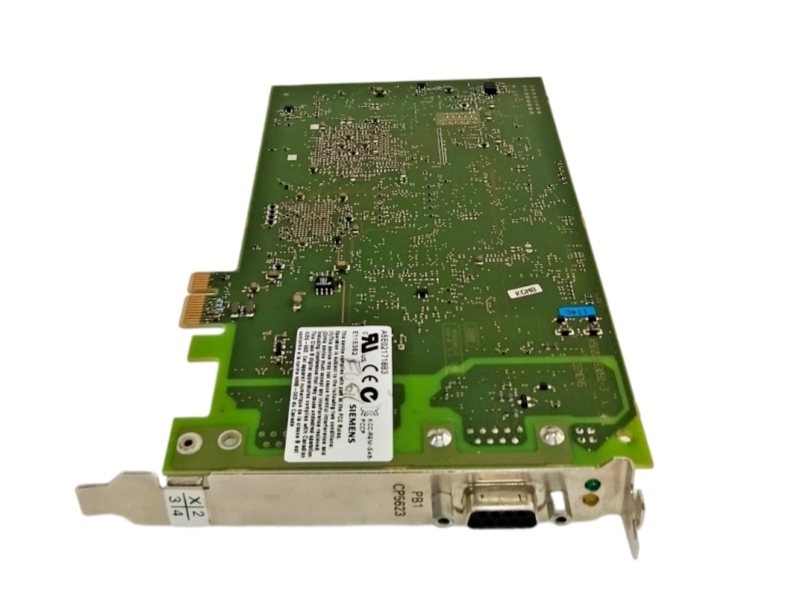

Siemens 6GK1562-3AA00 is the SIMATIC NET CP 5623 communications processor for connecting a PC station to PROFIBUS. The half-length PCI Express x1 card provides one electrical RS485 PROFIBUS connection through a 9-pin Sub-D socket and supports transfer rates from 9.6 kbit/s to 12 Mbit/s. Siemens specifies a DP-RAM interface for DP master operation, with PG and FDL functions, and includes a configuration tool plus DP-Base runtime software. Procurement should verify the complete suffix, PCI Express slot, operating system and software release, PROFIBUS connector, bus parameters, application interface and project configuration. The named successor must not be assumed to be a direct replacement without project review.
| Commercial Item | Status |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | PM300: Active Product; product phase-out starts 2026-10-01 |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Item | Officially Confirmed Data |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6GK1562-3AA00 |
| Product Type | SIMATIC NET CP 5623 communications processor |
| Fieldbus | PROFIBUS |
| Host Interface | PCI Express x1, 3.3 V, half-length |
| Fieldbus Connector | 9-pin Sub-D socket, RS485 |
| Transfer Rate | 9.6 kbit/s to 12 Mbit/s |
| DP Function | DP master through DP-RAM interface |
| Included Functions | PG and FDL |
| Included Software | Configuration tool and DP-Base runtime software, Class A |
| Power Loss | 5.4 W |
| Operating Temperature | 5 to 60 °C |
| Protection | IP00 |
| Dimensions | 18 × 112 × 168 mm |
| Official Successor | 6GK1562-3AA01; project compatibility review required |
| Official Lifecycle | PM300: Active Product; product phase-out starts 2026-10-01 |
| Country of Origin | GERMANY |
| Application Context | Required Review |
|---|---|
| PC-based PROFIBUS control | Confirm DP master requirements, DP-RAM access and the PC application interface. |
| Engineering station access | Review PG functions, installed software and supported operating-system environment. |
| FDL communications | Match protocol settings, addresses, bus rate and existing PROFIBUS topology. |
| Installed-card replacement | Verify PCIe slot, card dimensions, connector and archived project configuration. |
Compare 6GK1562-3AA00 character by character with the product label.
Confirm an available PCI Express x1 slot and the PC hardware environment.
Check the 9-pin Sub-D connector, RS485 network and configured transmission rate.
Review the configuration tool, DP-Base runtime, drivers and operating system.
Confirm DP master, PG and FDL functions required by the existing project.
Treat 6GK1562-3AA01 as a named successor only after project compatibility review.
It is a SIMATIC NET CP 5623 PCI Express communications processor for connecting a PC station to PROFIBUS.
Siemens specifies one electrical RS485 connection through a 9-pin Sub-D socket.
The documented PROFIBUS range is 9.6 kbit/s to 12 Mbit/s.
Siemens lists it as Active Product with product phase-out starting on 2026-10-01; this page does not label it Discontinued.
Siemens names 6GK1562-3AA01 as the successor, but hardware, driver, software and project compatibility must still be reviewed.
Verify the complete suffix, PCIe slot, PC platform, drivers, operating system, Sub-D connector, bus parameters and application configuration.
