Siemens 6GK1561-4AA00 SIMATIC NET CP 5614

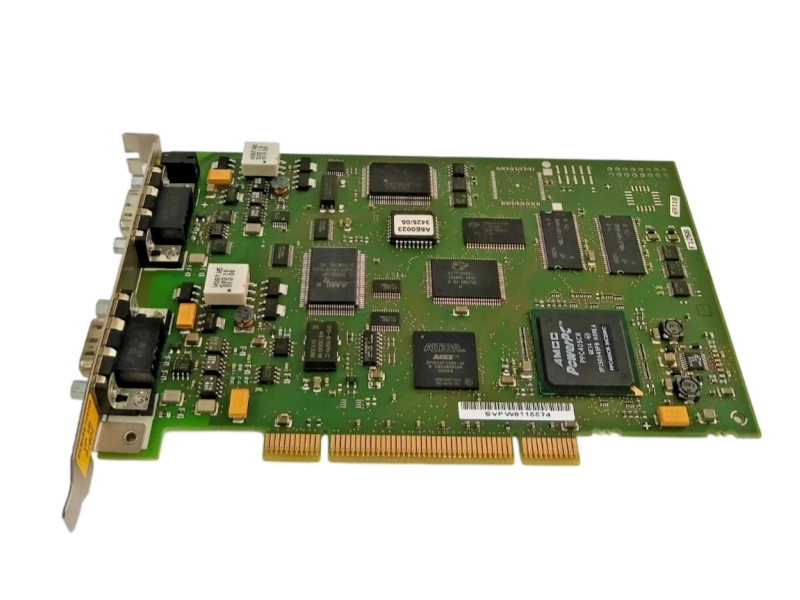

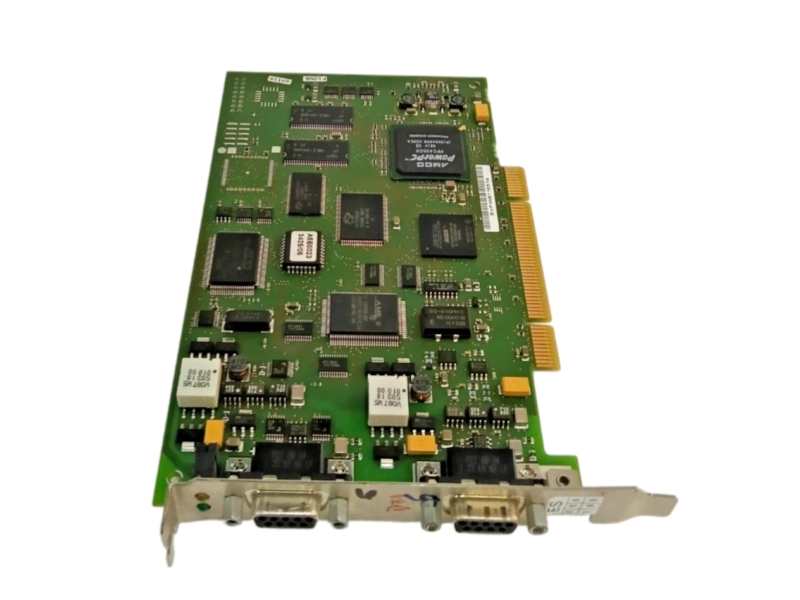

Siemens 6GK1561-4AA00 is the SIMATIC NET CP 5614 communication processor for connecting a PCI-equipped PC to PROFIBUS. The card provides two floating RS-485 interfaces: PROFIBUS 1 for DP master operation and PROFIBUS 2 for DP slave operation. Siemens documentation states that master and slave functions can run simultaneously, with program-controlled data transfer supporting hierarchical PROFIBUS networks. Supported transmission rates range from 9.6 kbit/s to 12 Mbit/s. Procurement should verify the complete order code, PCI slot voltage and clock, operating system, SIMATIC NET software, DP configuration, station addresses, connectors, bus termination, airflow and existing project records before replacement.
| Field | Verified Information |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
| Field | Verified Information |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6GK1561-4AA00 |
| Product Type | SIMATIC NET CP 5614 PROFIBUS communication processor |
| Host Interface | PCI V2.1, 5 V, 32-bit, Plug and Play |
| PCI Bus Clock | Maximum 33 MHz |
| PCI-X Compatibility | Not supported |

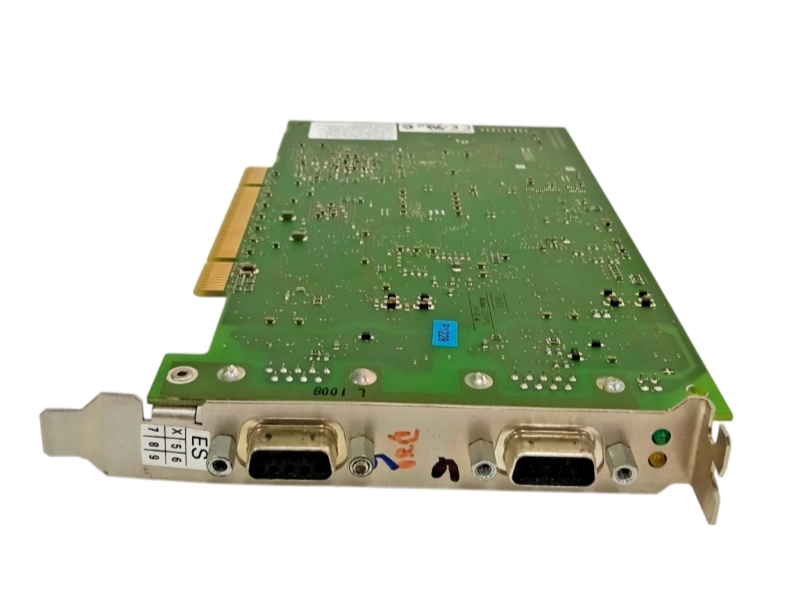

| PROFIBUS Interfaces | 2 x 9-pin Sub-D female, floating RS-485 |
| PROFIBUS 1 (PB1) | DP master |
| PROFIBUS 2 (PB2) | DP slave |
| Simultaneous Operation | DP master and DP slave can operate simultaneously |
| Maximum DP Slaves | Up to 124 in DP master mode |
| Transfer Rates | 9.6 kbit/s to 12 Mbit/s |
| Power Supply | From PCI slot, +5 V DC ±5% |
| Typical Current Consumption | 1.6 A |
| Dimensions | 107 x 168 mm |
| Net Weight | 170 g |
| Operating Temperature | 0 to 40 °C without fan; 0 to 60 °C with airflow of at least 0.5 m/s |
| Storage and Transport Temperature | -40 to 70 °C |
| Relative Humidity | 5–80% in operation; 5–95% in storage and transport at 25 °C, non-condensing |
| Country of Origin | GERMANY |
| Application Area | Product-Specific Guidance |
|---|---|
| Applicable System | PCI-based PC stations using SIMATIC NET PROFIBUS communication |
| System Role | DP master on PB1 and DP slave on PB2, including simultaneous operation |
| Network Function | Program-controlled data transfer between master and slave modules for hierarchical PROFIBUS structures |
| Typical Applications | PC-based automation, supervisory communication, distributed I/O coordination and PROFIBUS network integration |
| Maintenance Use | Exact-code replacement where the host PCI slot, software environment and two-port DP configuration match |
| Configuration Importance | Station addresses, transfer rate, termination, master and slave parameters, connector form and project data must be checked |
A current Siemens lifecycle designation for the exact order code 6GK1561-4AA00 was not confirmed in the available official documentation, so no lifecycle classification is asserted. Before procurement or replacement, verify the exact order code together with the host PCI interface, SIMATIC NET software, operating system, DP master and slave configuration, station addresses and existing project data.
