SIMATIC NET CP 1616 Communication Processor | Four-port PROFINET PCI communication for industrial PC stations

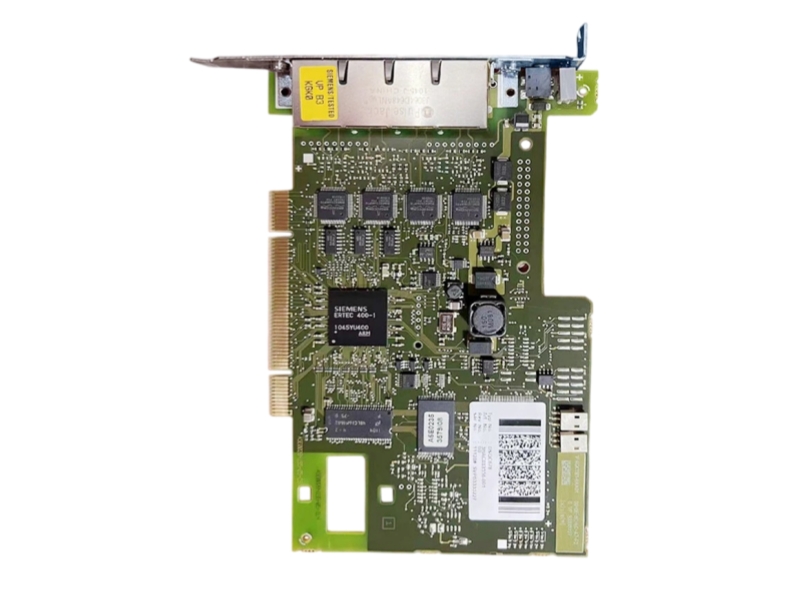

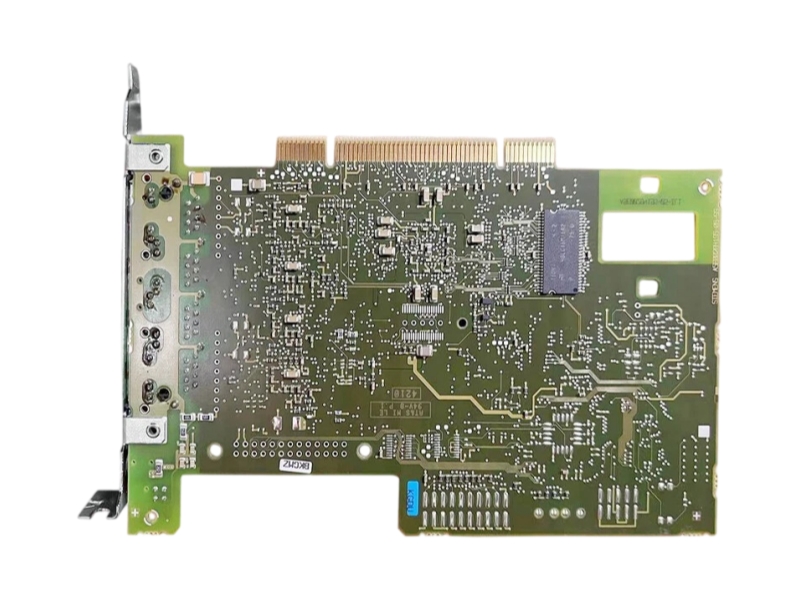

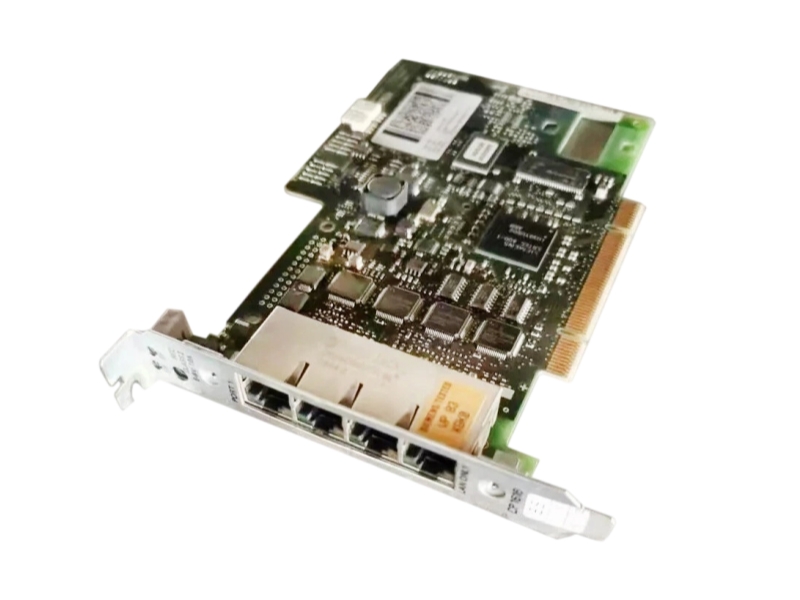

The Siemens 6GK1161-6AA01 is a SIMATIC NET CP 1616 communication processor designed for PROFINET communication in compatible PCI-based industrial PC stations. Its ERTEC 400 architecture combines controller, device and routing functions with an integrated four-port real-time Industrial Ethernet switch. The card supports 10/100 Mbit/s communication and can be supplied through the PCI interface or an approved external DC source. Procurement review should match the complete order number, host PCI specification, firmware level, operating-system support, PROFINET role, port topology and external-power requirements before installation or replacement.
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | No named lifecycle status stated in the reviewed exact official documents |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Notice: Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
| Complete Part Number | 6GK1161-6AA01 |
| Product Type | SIMATIC NET CP 1616 communication processor |
| Host Interface | PCI, 32-bit, 33/66 MHz, 3.3 V or 5 V |
| Communication | PROFINET IO controller, device and router functions |
| Ethernet Ports | 4 x RJ45 with integrated real-time switch |
| Transfer Rate | 10/100 Mbit/s |
| Processor | ERTEC 400 |
| PCI Supply | 5 V DC, ±5% |
| Optional External Supply | 6 to 9 V DC |
| Operating Temperature | 5 to 70 °C |
| Dimensions | 167 x 18 x 107 mm |
| Net Weight | 110 g |
| Country of Origin | Germany |
| System Fit | Compatible PCI-based industrial PC stations using SIMATIC NET PROFINET communication |
| System Role | Connects the PC station as PROFINET IO controller, device or network router |
| Typical Applications | Machine networking, PC-based control, distributed I/O communication and maintenance replacement |
| Critical Checks | Complete suffix, host PCI voltage and slot, firmware, driver and operating-system support, PROFINET role, port topology and external supply |
Confirm the complete 6GK1161-6AA01 order code and suffix against the installed unit and current project documentation. Review only the hardware, firmware, electrical, interface, mounting and configuration items relevant to this product. Request clear label and packaging photographs before shipment, and do not assume that a similar family member is a direct replacement.
The reviewed Siemens official documents identify the exact 6GK1161-6AA01 CP 1616 article and its technical functions, but they do not state a current named lifecycle classification. Procurement should therefore verify the current order status directly against the exact article while separately checking host hardware, firmware, drivers and PROFINET configuration.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
Documented review, inspection coordination and global order support for industrial automation procurement.
| Model and Suffix Verification | We compare the complete part number, suffix and visible label details with the purchase request. |
| Condition Confirmation | Commercial condition is reviewed and documented before order acceptance. |
| Technical Compatibility Review | Available manufacturer documentation is checked against the requested interface, electrical and configuration requirements. |
| Product and Label Photos | Inspection photographs can cover the complete unit, label, connectors, accessories, seals and packaging. |
| Quality Review | Visible condition, order-code consistency and supplied accessories are reviewed before packing. |
| Protective Packaging | Packaging is selected for the product type, dimensions, connector protection and transport route. |
| Worldwide Shipping | Available international shipping options are coordinated after order and destination review. |
| Shipment Tracking | Tracking information is supplied when released by the selected carrier. |
| Customs Documentation | Commercial and shipping documents are prepared according to the confirmed transaction and route. |
| Written Warranty Terms | Applicable Stockoems warranty terms are supplied in writing with the commercial offer. |
| Return Authorization | Any return request follows the written authorization and inspection process stated in the transaction terms. |
| After-Sales Response | Our team coordinates technical records, shipping evidence and commercial follow-up after delivery. |
For 6GK1161-6AA01, our workflow separates manufacturer technical facts from Stockoems commercial information. We review the requested order code, available technical records and customer-supplied project requirements before confirming the transaction. Inspection and label photos help purchasers compare the physical unit with the purchase specification. Protective packaging, shipping documents, carrier tracking and customs records are coordinated after order review without promising an unconfirmed delivery date or inventory quantity.
Written quotation terms should identify the offered condition, warranty scope, shipping arrangement and return authorization process. After delivery, our team responds with the available inspection record, packaging evidence and shipment documentation so that procurement and engineering teams have a traceable basis for follow-up.
