A PC communications processor for deterministic SIMATIC NET connectivity, S7 communication and engineered high-availability links.
The Siemens 6GK1161-3AA00 is the original SIMATIC NET CP 1613 (A1) communications processor. It installs in a PCI slot of a programming device, industrial PC or workstation and connects the host to Industrial Ethernet. The module processes protocol layers on its own hardware and exchanges data with host memory through dual-port RAM, reducing communication load on the PC.
| Item | Verified identification |
|---|---|
| Manufacturer | Siemens |
| Product line | SIMATIC NET |
| Product designation | CP 1613 A1 communications processor |
| Article number | 6GK1161-3AA00 |
| Country of origin | GERMANY |
| Parameter | Officially documented value |
|---|---|
| Host hardware | PCI slot in a PG, PC or workstation |
| Industrial Ethernet port | RJ45 female connector for twisted-pair cable |
| Additional network connector | 15-pin Sub-D female connector for Industrial Twisted Pair (ITP) or Attachment Unit Interface (AUI) |
| Transmission rate | 10/100 Mbit/s, detected and set automatically |
| Protocol processing | SIMATIC NET protocol layers 1 to 4 on the module |
| Host data exchange | Dual-port RAM with operating-system-specific module drivers |
| S7 high-availability use | Fault-tolerant S7 connections with SIMATIC NET S7-REDCONNECT |
| Engineering context | PC station configuration with STEP 7 or NCM PC |
Use current photographs to verify the exact order number, connector set and physical condition before procurement approval.
 |
 |
 |
| Application | Engineering relevance |
|---|---|
| SIMATIC PC station networking | Connects a PCI-based PC station to Industrial Ethernet for configured SIMATIC NET communication. |
| S7-400H communication | Supports fault-tolerant S7 connections when the PC station is engineered with STEP 7 and licensed S7-REDCONNECT software. |
| OPC data access | Can serve an engineered SIMATIC NET OPC station for communication with S7 systems. |
| Industrial Ethernet commissioning | Provides CP-based PC connectivity for engineering, diagnostics and network commissioning workflows. |
Siemens documentation distinguishes CP 1613 A1 6GK1161-3AA00 from CP 1613 A2 6GK1161-3AA01. Because the available official record for this complete A1 article does not state a current PLM phrase, no lifecycle label is assigned here. Procurement should be based on the exact article number, released software environment and verified hardware condition.
No. 6GK1161-3AA00 identifies CP 1613 A1. CP 1613 A2 is article 6GK1161-3AA01 and must not be substituted without an engineering review.
The documented interfaces are an RJ45 socket for twisted pair and a 15-pin Sub-D socket for ITP or AUI connection.
Yes, in a correctly engineered PC station with STEP 7/NCM PC and the required SIMATIC NET S7-REDCONNECT license.
Confirm the complete order number, PCI edge, connector condition, board revision, traceability label and compatibility with the released software environment.
Send the complete part number, quantity, destination and current nameplate photographs for an exact review.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
A structured review for identity, PCI hardware condition, connector integrity and SIMATIC NET system fit.
We compare the complete Siemens code, product marking and visible revision details.

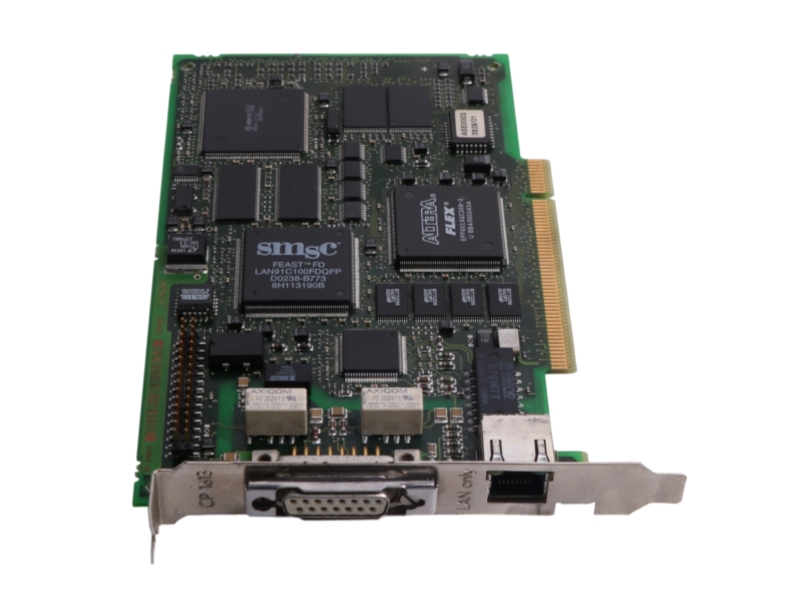

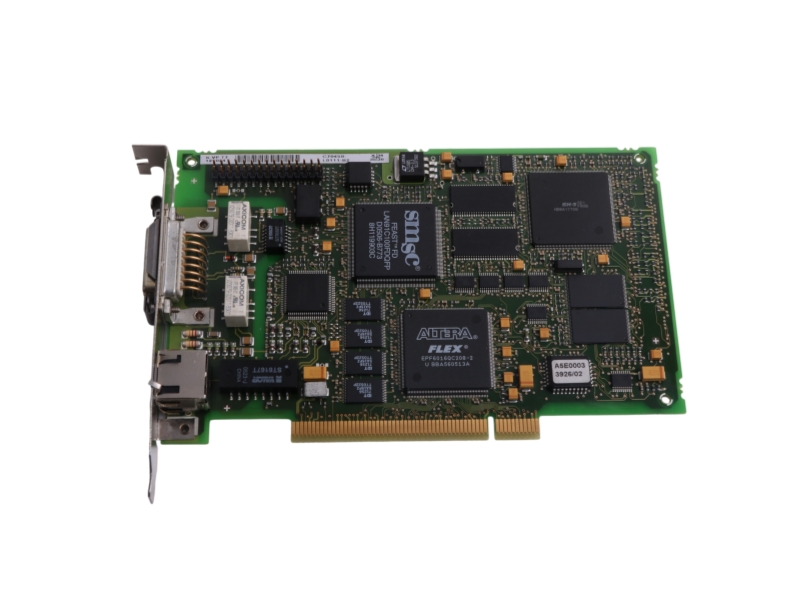

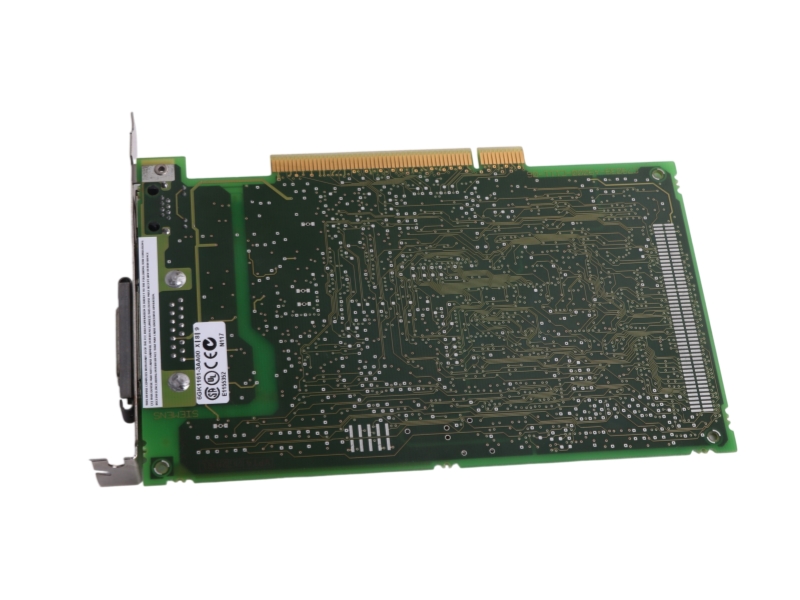

Current photos can document the PCB, PCI edge and both network connector areas.
Sensitive electronics are prepared for controlled handling and global shipment.
| Step | What we check | Customer input |
|---|---|---|
| 1 · Part identification | Full article number and CP 1613 A1 marking | |
| 2 · System fit | PCI host, cabling and SIMATIC NET environment | |
| 3 · Commercial review | Quantity, availability and warranty terms | |
| 4 · Dispatch planning | Packing, shipment route and documentation |
Complete part number, quantity, destination, target PCI host, SIMATIC NET/STEP 7 release and clear photos of the installed or replacement unit.
Send the complete part number, quantity, destination and current nameplate photographs for an exact review.
