Eight ITP ports, eight digital inputs and managed redundancy functions for industrial Ethernet line and ring networks.

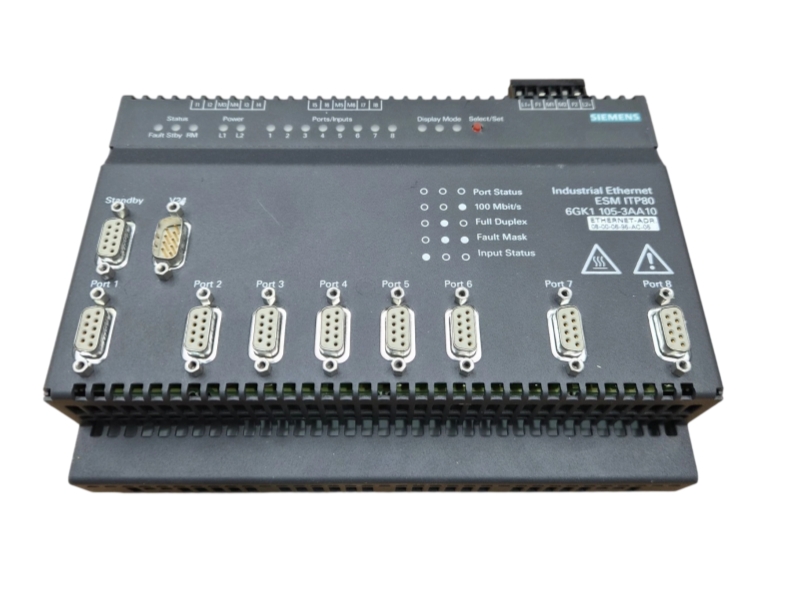

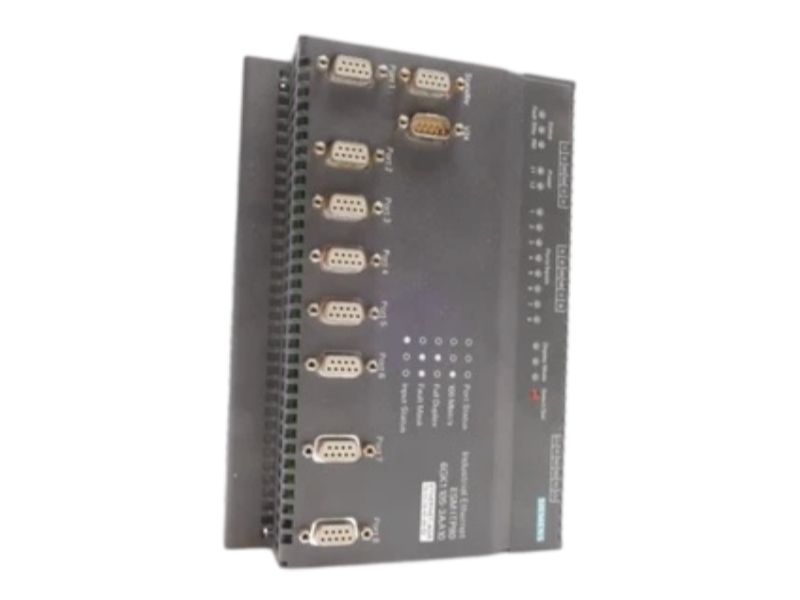

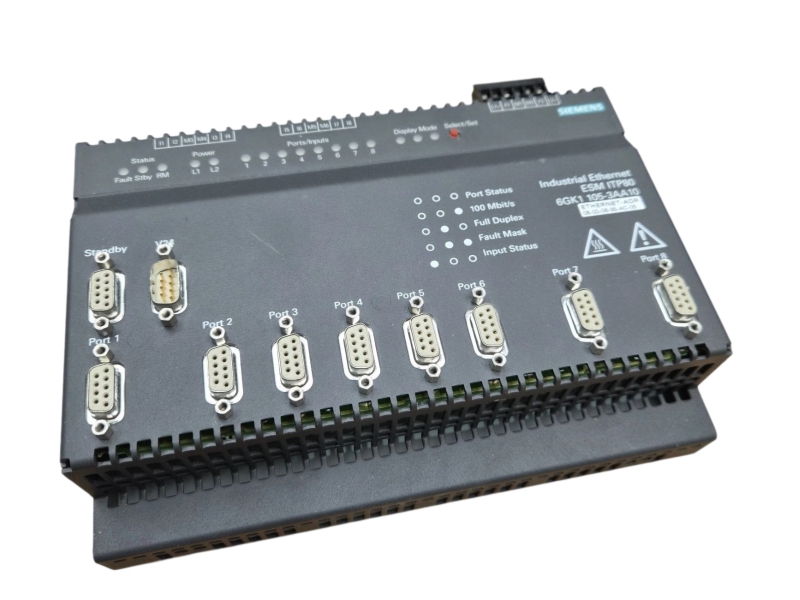

Siemens 6GK1105-3AA10 is the SIMATIC NET Industrial Ethernet ESM ITP80 electrical switch module for managed plant networks. The official OSM/ESM manual identifies eight 10/100 Mbit/s ITP ports using 9-pin Sub-D sockets, eight 24 V DC digital inputs, redundant 24 V DC supply connections, a signaling contact and an integrated redundancy manager. Network management supports monitoring of input states and configured event reporting. Procurement should verify the complete suffix, ITP cabling, port assignments, redundant ring or line structure, digital-input wiring, supply arrangement, management configuration, firmware and mounting position. Newer SCALANCE devices must not be treated as direct replacements without a network redesign review.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6GK1105-3AA10 |
| Product Type | SIMATIC NET Industrial Ethernet ESM ITP80 electrical switch module |
| Electrical Ports | 8 ITP ports |
| Port Connector | 9-pin Sub-D sockets |
| Transfer Rate | 10 or 100 Mbit/s |
| Port Functions | Auto-Negotiation and Auto-Crossover |
| Digital Inputs | 8 × 24 V DC |
| Digital Input Connection | Two pluggable 6-pole terminal blocks |
| Power Supply | Two redundant 24 V DC inputs; 18–32 V DC SELV |
| Signaling Contact | Connection on the 6-pole terminal block |
| Standby Sync Port | 1 × 9-pin Sub-D |
| Maximum Segment Distance | 100 m between two ESM units |
| Ring Scale | Up to 50 ESM units; maximum ring circumference 5 km |
| Learnable Addresses | Up to 7000 |
| Degree of Protection | IP20 |
| Mounting Position | Horizontal installation only |
| Country of Origin | GERMANY |
| Application | Engineering Relevance |
|---|---|
| Industrial Ethernet segment switching | Connects up to eight terminals or network segments through ITP interfaces. |
| Redundant line and ring networks | Ports 7 and 8 can couple further ESM units; redundancy planning must follow the installed topology. |
| Digital status monitoring | Eight 24 V DC inputs can be monitored through network management functions. |
| Legacy OSM/ESM maintenance | Supports exact-spare review where existing cabling, connectors and management settings must be preserved. |
The reviewed Siemens OSM/ESM manual confirms the exact order code and technical architecture but does not provide a current lifecycle label for 6GK1105-3AA10. No lifecycle status is assigned here. Siemens replacement guidance treats migration from OSM/ESM to SCALANCE X as application-dependent rather than a direct substitution. Review interfaces, topology, management features, media type, environmental requirements and project changes before planning migration.
6GK1105-3AA10 identifies the Siemens SIMATIC NET ESM ITP80 electrical switch module with eight ITP ports and digital inputs.
A current exact lifecycle label was not available in the official documents reviewed, so this page does not classify the module as Active or Discontinued.
Verify all 9-pin Sub-D ITP ports, the standby synchronization port, terminal blocks, signaling contact and digital-input connections.
The official manual documents an integrated redundancy manager and ring structures. The installed topology and configuration must be reviewed before replacement.
Not automatically. Siemens migration guidance requires an application-specific comparison of interfaces, topology and management functions.
Yes. Available inspection evidence can include the complete housing, readable nameplate, connectors, terminal blocks and packaging condition.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
A documented route from model verification to after-sales response.
Model and suffix verification, product and label photo confirmation, and condition confirmation before quotation.
Technical compatibility review covering interfaces, power, connectors, hardware revision and installed-system context.
Visual inspection, label checking and available functional evidence are organized for buyer review.
Protective packaging is selected for the housing, connectors and accessories before dispatch.
Worldwide shipping, shipment tracking and customs documentation are coordinated without unverified delivery promises.
Written warranty terms, a return authorization process and after-sales response support accountable communication.
| Quality inspection | Visible condition, label details and included items are checked against the agreed scope. |
|---|---|
| Label verification | The complete part number, suffix and available revision markings are compared before dispatch. |
| Packaging handling | Connectors and housings receive protective packing appropriate to international transport. |
| Documentation | Commercial and customs documents are prepared for the agreed shipment arrangement. |
| After-sales communication | Questions are handled with the order record, inspection evidence and written terms available for review. |
Check whether the supplier preserves complete part numbers, provides traceable photographs, explains commercial terms in writing and asks for installed-system details before claiming compatibility.
Request clear product, nameplate, connector, seal, accessory and packaging photos together with written condition, warranty and shipping terms.
Watch for shortened model numbers, copied specifications, unclear condition, unverifiable inventory quantities, guaranteed compatibility without engineering review and pressure to accept undocumented substitutes.
Compare the complete suffix, hardware revision, electrical ratings, interfaces, connectors, software requirements, project configuration, mounting and official migration guidance.
Share the complete part number, quantity, destination and clear label photos for a focused availability and compatibility review.
