Active PROFIBUS connector up to 12 Mbit/s with 90-degree cable outlet, PG socket and termination.

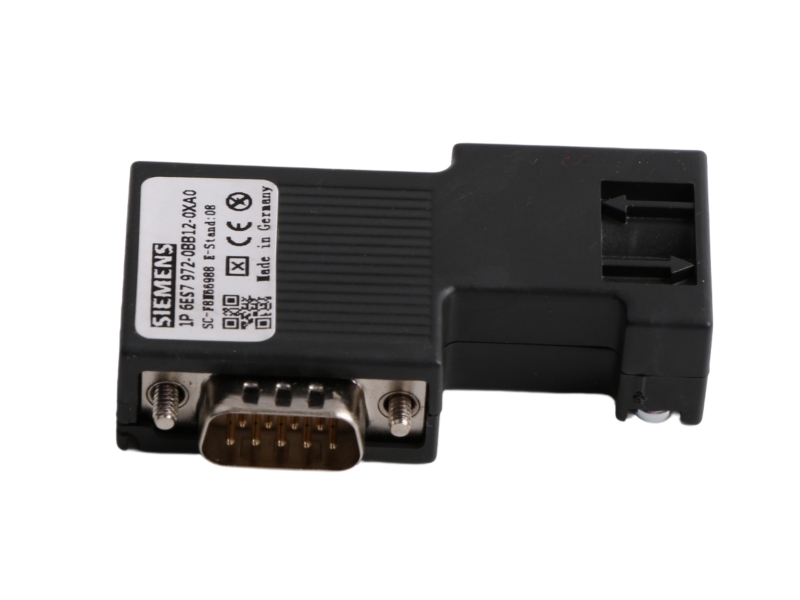

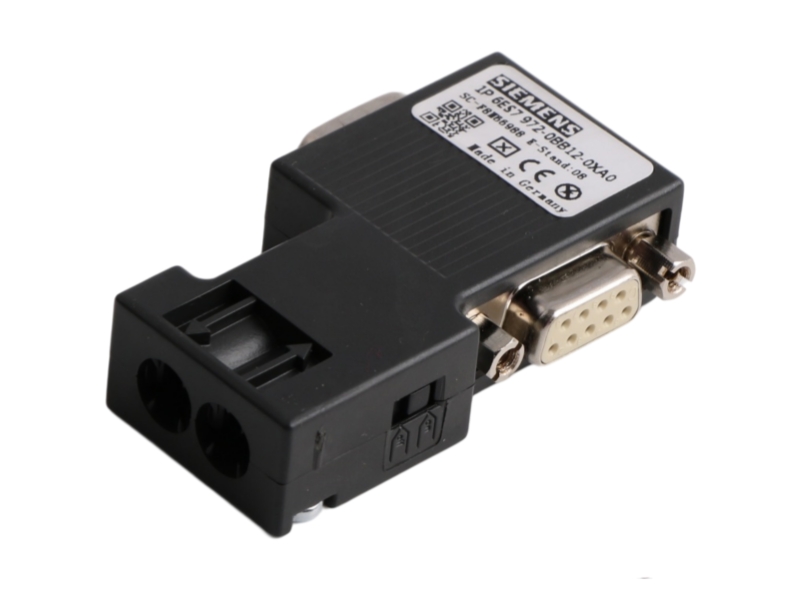

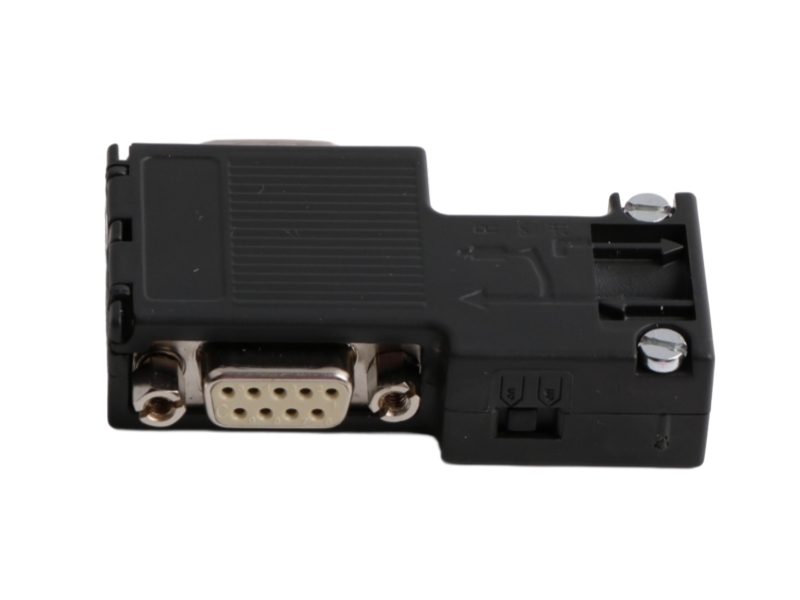

Siemens 6ES7972-0BB12-0XA0 is a SIMATIC DP PROFIBUS connection plug for transmission rates up to 12 Mbit/s. The exact model has a 90-degree cable outlet, screw-type connection, integrated terminating resistor with isolating function and a PG socket. Its compact dimensions support service access in control cabinets, while procurement must verify cable orientation, connector access and network termination requirements.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ES7972-0BB12-0XA0 |
| Product Type | SIMATIC DP PROFIBUS Bus Connector |
| Product Lifecycle | Active Product |
| Ordering Note | Confirm 90-degree outlet, screw connection and PG socket |
| Country of Origin | Germany |
| Technical Item | Official Specification |
|---|---|
| Manufacturer | Siemens |
| Product family | SIMATIC DP RS485 bus connectors |
| Network | PROFIBUS |
| Maximum transmission rate | 12 Mbit/s |
| Cable outlet | 90 degrees |
| Connection method | Screw-type connection |
| Terminating resistor | Integrated, with isolating function |
| PG socket | Included |
| Dimensions (W x H x D) | 15.8 x 64 x 35.6 mm |
| Packaging dimensions (L x W x H) | 8.0 x 6.8 x 3.2 cm |
| Net weight | 0.056 kg |
| Lifecycle wording | Active Product |
Connects compatible devices to a PROFIBUS segment at transmission rates up to 12 Mbit/s.
The integrated PG socket supports an additional programming-device connection at the bus node.
The switchable terminating resistor supports correct termination when installed at a PROFIBUS segment end.
It is a SIMATIC DP PROFIBUS bus connector rated for transmission rates up to 12 Mbit/s.
The exact model uses a 90-degree cable outlet.
Siemens specifies a screw-type connection.
Yes. The official description confirms an integrated PG socket.
Yes. It includes a terminating resistor with an isolating function.
Confirm the full suffix, data rate, cable angle, screw connection, PG access and termination topology.
