Embedded-controller expansion hardware for accommodating up to three additional PCI-104 cards.

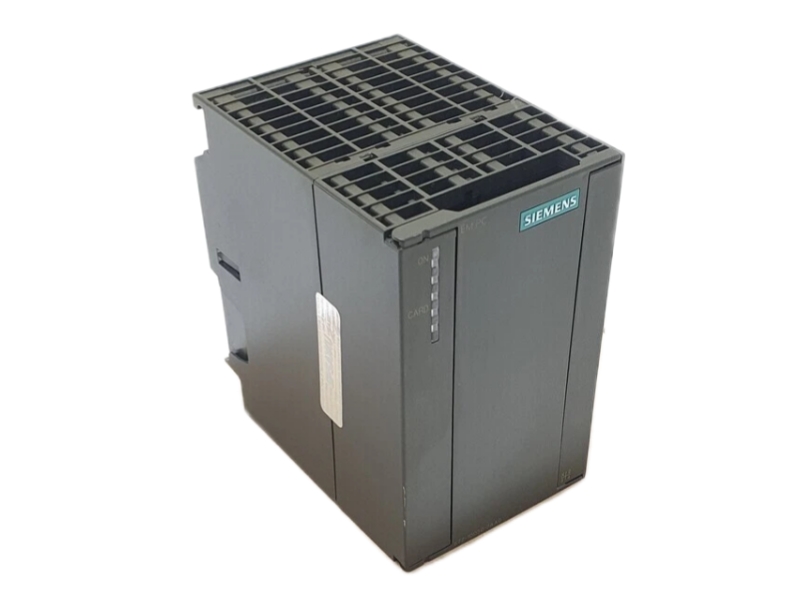

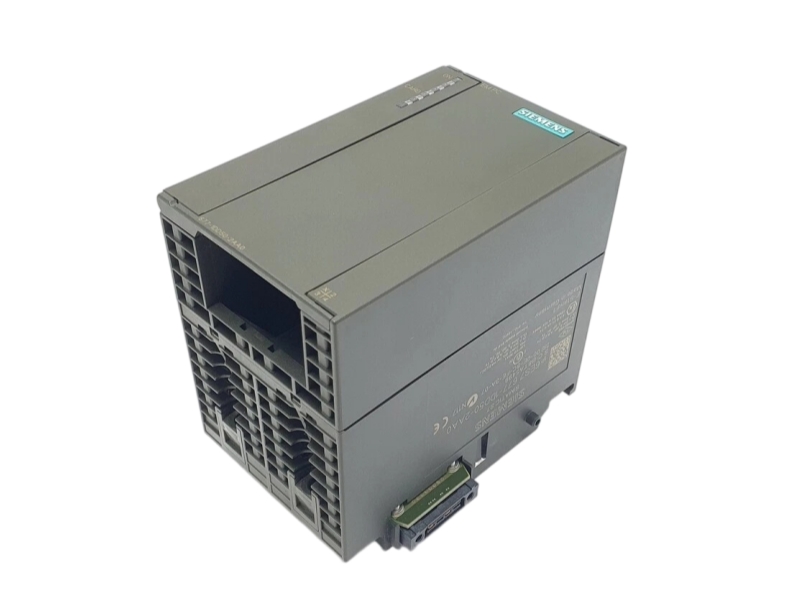

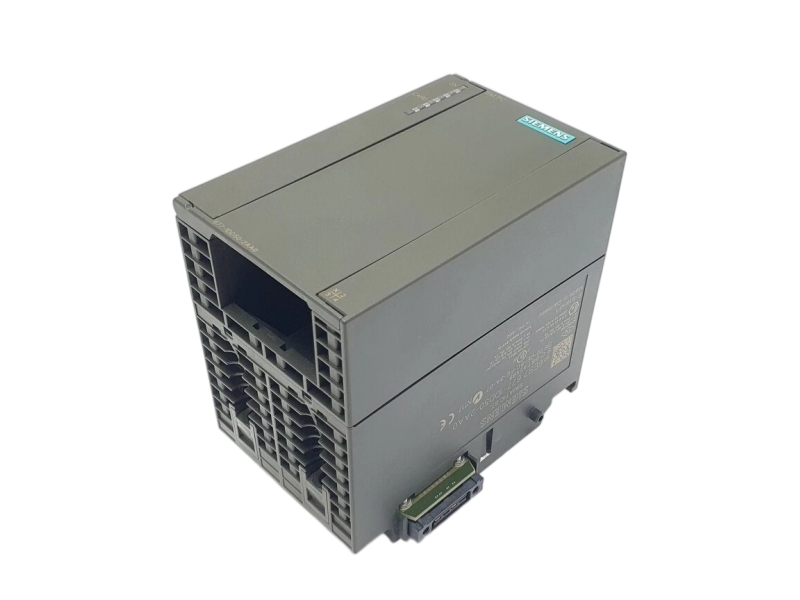

Siemens 6ES7677-1DD60-1AA0 is the SIMATIC S7-mEC EM PCI-104 expansion module for the EC31 modular embedded-controller platform. Official Siemens documentation states that it accommodates up to three additional PCI-104 cards; PC/104 Plus cards may be used with an additional adapter. The module has an integrated power supply, draws 100 mA from the expansion bus and has a typical power loss of 2.4 W without inserted cards. Procurement should verify the complete suffix, EC31 base-system revision, installed PCI-104 cards, adapter requirements, available installation space, expansion-bus connection and application software before replacement or extension.
| Commercial Item | Status |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Item | Officially Confirmed Data |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6ES7677-1DD60-1AA0 |
| Product Type | SIMATIC S7-mEC EM PCI-104 expansion module |
| Series | SIMATIC S7 modular Embedded Controller EC31 |
| Hardware Product Version | 01 |
| Expansion Capacity | Up to 3 additional PCI-104 cards |
| PC/104 Plus Support | Possible with an additional adapter |
| Input Current from Expansion Bus | 100 mA |
| Typical Power Loss | 2.4 W without inserted PCI-104 cards |
| Integrated Power Supply | Yes |
| USB Interfaces | 0 |
| Serial Interfaces | 0 |
| Operating Temperature | 0 °C to 50 °C |
| Dimensions | 120 × 125 × 115 mm, subject to Siemens dimensional notes |
| Approximate Weight | 0.5 kg |
| Country of Origin | GERMANY |
| Application | Fit Consideration |
|---|---|
| S7-mEC expansion | Adds PCI-104 card capacity to a compatible EC31 modular embedded-controller system. |
| Machine-control computing | Supports application-specific expansion cards selected for the embedded-control project. |
| Legacy system maintenance | Maintains an installed S7-mEC architecture after card, adapter and revision checks. |
| Controlled capacity extension | Adds up to three PCI-104 positions within the documented mechanical and power limits. |
The official Siemens catalog documents reviewed confirm the complete order number and technical configuration but do not provide a current PLM lifecycle classification for this page. No lifecycle status is asserted here.
It is the SIMATIC S7-mEC EM PCI-104 expansion module for the EC31 modular embedded-controller platform.
Siemens specifies capacity for up to three additional PCI-104 cards.
Yes, the Siemens description states that an additional adapter is required.
Yes. Siemens lists an integrated power supply for this EM PCI-104 module.
Verify the EC31 base system, expansion bus, installed cards, adapter, power and thermal conditions.
