Eight-channel 16-bit current input module with diagnostics for ET 200PA SMART.
Siemens 6ES7650-8AK60-0AA0 is an ET 200PA SMART AI8x16Bit analog input module for eight 0/4–20 mA current signals with diagnostics. It is the standard, non-coated version; Siemens identifies 6ES7650-8AK60-1AA0 as the conformal-coated variant.
ET 200PA SMART follows an ET 200M-style modular architecture and uses the IM 650 interface. Siemens documents PROFIBUS DP communication with DPV1/DPV2 functions, IP20 construction, 40 mm I/O-module width and support for hot swapping or redundant I/O when the specified bus modules are used.
| Item | Verified information |
|---|---|
| Manufacturer | Siemens |
| Order number | 6ES7650-8AK60-0AA0 |
| Product line | ET 200PA SMART / AI8x16Bit |
| Supply review | Availability, condition, delivery timing and compatibility are checked against the requested quantity. |
| Parameter | Specification |
|---|---|
| Module type | ET 200PA SMART AI8x16Bit analog input |
| Channels / supply outputs | 8 analog inputs and 8 transmitter supply outputs |
| Transducer modes | 2-wire or 4-wire current transducers; module-wide hardware selection |
| Input ranges | 0–20 mA, ±20 mA and 4–20 mA as applicable to the selected mode |
| Resolution | 15 bits plus sign |
| Measuring principle | Sigma-delta conversion |
| Cable length, shielded | Maximum 800 m |
| Rated load voltage | 24 V DC; reverse-polarity protected |
| Temperature range | Horizontal: 0 to +60 °C; vertical: 0 to +40 °C |
| Isolation | Inputs isolated from backplane bus; channel common-mode limits apply in 4-wire mode |
| Power loss | Approximately 1.5 W |
| Device dimensions (W × H × D) | 40 × 125 × 117 mm |
| Device weight, approx. | 205 g |
| Protection / system | IP20; ET 200PA SMART with IM 650 and PROFIBUS DP |

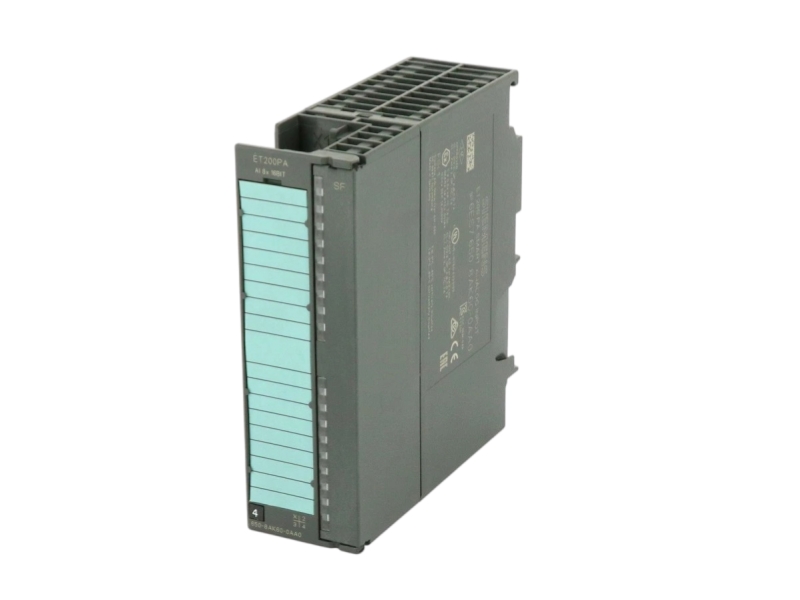

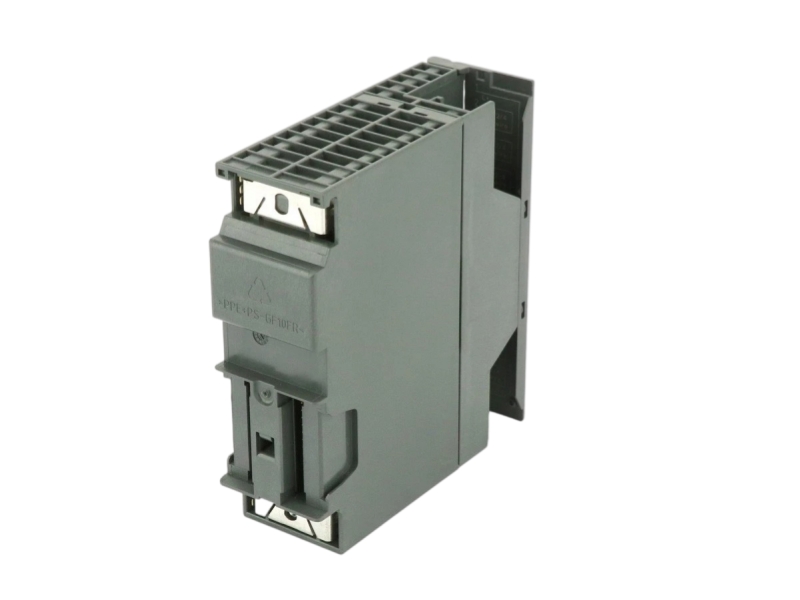

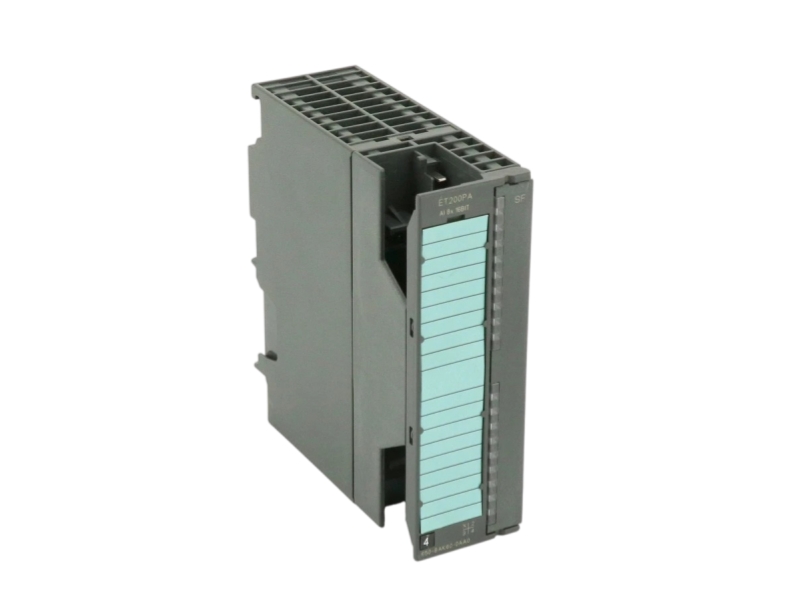

Use three current views to verify identity, connectors and physical condition before procurement approval.
Acquire eight standard 0/4–20 mA field signals in ET 200PA SMART process I/O stations.
Use diagnostic analog inputs in PROFIBUS DP stations designed for PCS 7 or PCS 7 SMART.
The current Siemens ET 200PA SMART operating instructions explicitly list 6ES7650-8AK60-0AA0, but they do not assign a PLM lifecycle term to the order number. This page therefore states only the documented product identity and configuration, without adding an unsupported lifecycle label.
The module provides eight analog current inputs.
Siemens documents 0–20 mA and 4–20 mA input ranges.
The AI8x16Bit module uses 16-bit resolution.
No. 6ES7650-8AK60-0AA0 is the standard version; the conformal-coated variant is 6ES7650-8AK60-1AA0.
It is used in ET 200PA SMART stations with the IM 650 interface and PROFIBUS DP communication.
Verify the exact order code, input range, front connection, IM 650 station design, bus modules and PCS 7 engineering release.
Send the quantity, delivery destination and clear nameplate photographs for supply, compatibility and warranty review.
