A plug-in monitoring board that provides an isolated dry-contact indication when both redundant MTA power inputs are present.

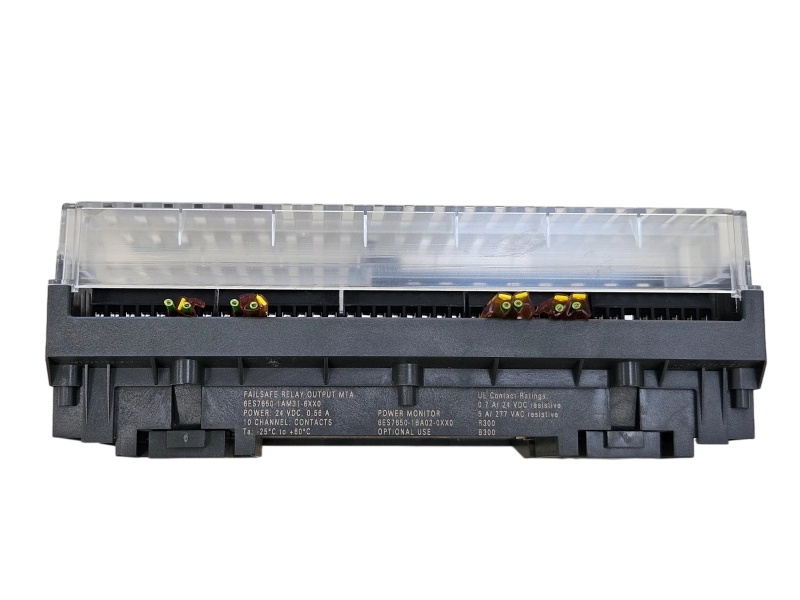

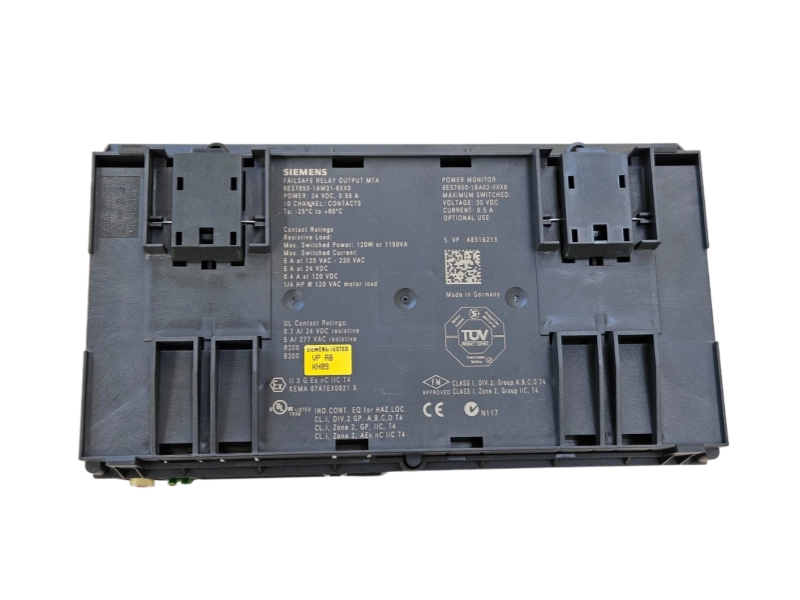

The Siemens 6ES7650-1BA02-0XX0 is a SIMATIC PCS 7 power monitoring module designed for Siemens ET 200M marshalled termination assemblies. When redundant power is connected to the MTA, the board monitors the presence of both supplies and closes an isolated dry-contact output only when both inputs are available. It is a plug-in accessory secured by standoffs and screws.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ES7650-1BA02-0XX0 |
| Product Family | SIMATIC PCS 7 / ET 200M MTA accessories |
| Product Type | Power Monitor Board |
| Product Lifecycle | PM400: Announcement of product phase-out |
| PLM Effective Date | Product phase-out since 01.10.2024 |
| Parameter | Official specification |
|---|---|
| Monitoring function | Presence monitoring of both redundant MTA power inputs |
| Output principle | Isolated dry contact; closes when both monitored power inputs are present |
| Internal arrangement | Two relays with contacts connected in series |
| Contact load | Maximum 30 V DC, 0.5 A |
| Output terminals | Field terminals 1 and 2 for the external sensing system |
| Mounting | Plug-in MTA accessory secured with standoffs and screws |
| Detection scope | Detects presence or absence of power; does not evaluate an out-of-specification voltage threshold |
| Net weight | 0.036 kg |
| Packaging dimensions | 73 × 121 × 35 mm (Siemens logistics data) |
Provides a common status contact when both redundant power feeds to the termination assembly are available.
The dry contact can be wired to an external sensing circuit for power-availability indication and alarm logic.
Helps maintenance teams distinguish complete dual-supply availability from loss of either monitored input.
It is a Siemens SIMATIC PCS 7 power monitor board for ET 200M marshalled termination assemblies.
The isolated dry contact closes when both monitored MTA power inputs are present.
No. The official manual states that it detects presence or absence rather than an out-of-specification voltage threshold.
The specified maximum load is 30 V DC at 0.5 A.
Confirm the complete MLFB, MTA type, cover arrangement, redundant power wiring, contact load and board mounting hardware.
Send the MTA part number, existing board label, power-input arrangement, required quantity and destination for stock verification, warranty terms and global delivery support.
Ask about 6ES7650-1BA02-0XX0Configuration review, condition inspection, packing and global delivery coordination for 6ES7650-1BA02-0XX0.
| Review stage | What we check | Procurement value |
|---|---|---|
| MLFB verification | Complete 6ES7650-1BA02-0XX0 suffix, label and hardware identity | Reduces incorrect substitution risk |
| MTA matching | Termination assembly type, cover arrangement and board mounting position | Confirms mechanical fit |
| Electrical review | Dual power inputs, terminals 1 and 2, sensing circuit and 30 V DC / 0.5 A limit | Confirms application suitability |
| Condition inspection | Board, relays, connector, standoffs, screws and traceability markings | Documents offered condition |
| Protective packing | ESD shielding, connector protection, moisture control and impact-resistant packaging | Protects sensitive electronics in transit |
| Delivery follow-up | Quantity, destination, documents, tracking and warranty procedure | Supports planned maintenance |
Readable MLFB, serial or traceability label and photos of the complete board.
MTA part number, cover arrangement and current board mounting hardware.
Redundant supply arrangement, sensing voltage and external contact load.
Quantity, destination, required date and preferred equipment condition.
Before removal, document the wiring at field terminals 1 and 2 and confirm which MTA power input is connected to each relay circuit. Because Siemens lists the product under PM400 phase-out, long-term spares planning should include revision, condition and storage requirements.
Send the 6ES7650-1BA02-0XX0 label, MTA details, electrical context, quantity and destination for a configuration-focused response.
