Siemens 6ES7531-7QF00-0AB0 SIMATIC S7-1500 Analog Input Module
Verified product identity, system fit and procurement checks
Product Overview
Siemens 6ES7531-7QF00-0AB0 is a SIMATIC S7-1500 AI 8xU/I/R/RTD BA analog input module for acquiring voltage, current, resistance and resistance-temperature-detector signals. Its eight inputs operate as one channel group and provide 16-bit resolution with diagnostics and hardware interrupt support. The module is intended for process measurement and condition acquisition in S7-1500 or ET 200MP stations. Procurement checks should match the complete order code, hardware functional status, firmware, configured measuring ranges, sensor wiring, front connector and TIA Portal project requirements before installation or replacement.
Commercial Status
Product Condition
Original new
Availability
In stock
Official Lifecycle
PM300: Active Product
Warranty
With 1 year warranty
Shipping
Worldwide shipping options available
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
Verified Technical Data
Manufacturer
Siemens
Complete Part Number
6ES7531-7QF00-0AB0
Product Type
SIMATIC S7-1500 AI 8xU/I/R/RTD BA analog input module
Product Family
SIMATIC S7-1500 / ET 200MP
Number of Analog Inputs
8
Channel Grouping
8 channels in one group
Supported Measurements
Voltage, current, resistance and resistance thermometer
Resolution
16 bit
Accuracy
0.5%
Common-Mode Voltage
4 V DC
Diagnostics
Supported
Hardware Interrupts
Supported
Backplane Power Consumption
0.85 W
Typical Power Loss
0.9 W
Hardware Functional Status
FS01
Firmware Version
V1.0.0; firmware update supported
Engineering Integration
STEP 7 TIA Portal V15.1/V16 or later as applicable
Front Connector
Ordered separately

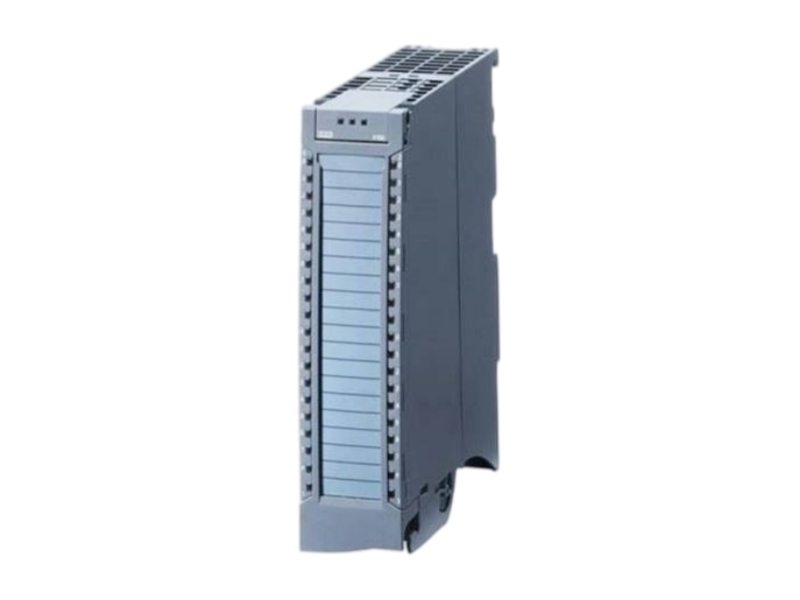

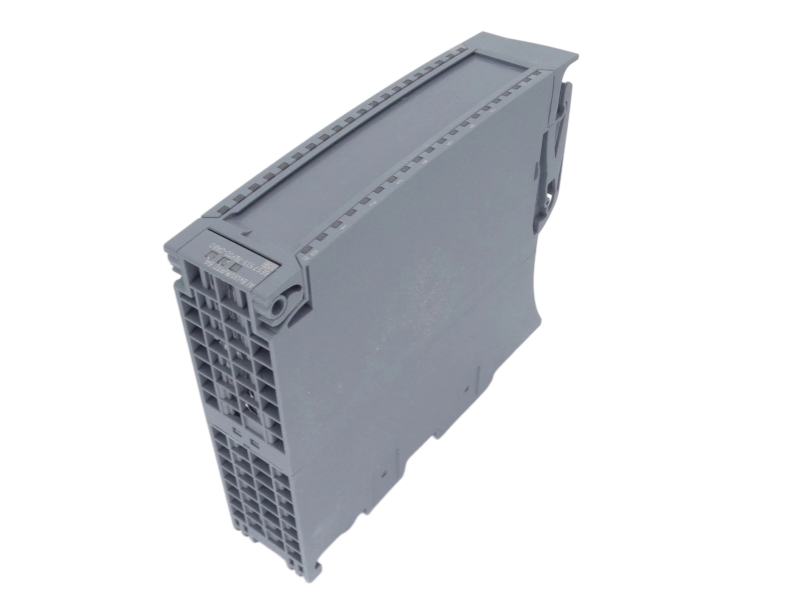

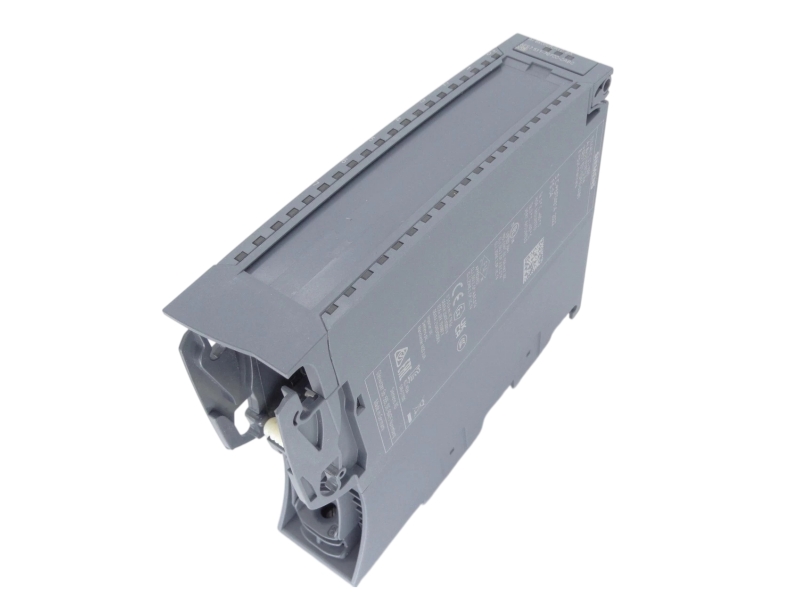

Product Photo Evidence
System Fit and Applications
Applicable System
SIMATIC S7-1500 central systems and ET 200MP distributed stations
System Role
Acquires analog voltage, current, resistance and RTD process signals
Typical Applications
Temperature, pressure, level, flow and general process measurement
Maintenance Use
Exact-order-code replacement or capacity restoration in an existing configured station
Configuration Importance
Channel ranges, sensor type, wiring and project parameters must match the application
Compatibility and Procurement Checks
Verify the complete part number and suffix 6ES7531-7QF00-0AB0.,Match hardware functional status FS01 and the installed firmware level.,Confirm each configured measuring type and range against the connected field sensor.,Check front connector, shield bracket, terminal assignment and field wiring.,Review TIA Portal version, hardware catalog entry and downloaded project parameters.,Compare product-label and packaging photographs before shipment.
Lifecycle Note
Siemens lists 6ES7531-7QF00-0AB0 as PM300: Active Product. This status should be recorded exactly and does not remove the need to verify hardware status, firmware, connector selection, channel configuration and the engineering project before replacement.
