Sixteen-channel 16-bit current input module with diagnostics and hardware interrupts for SIMATIC S7-1500.
Siemens 6ES7531-7MH00-0AB0 is a SIMATIC S7-1500 AI 16xI BA analog input module for acquiring sixteen current signals in one channel group. Siemens specifies 16-bit resolution, 0.5% accuracy, channel diagnostics and hardware interrupts.
The module is supplied with an infeed element, shield bracket and shield terminal; the screw-type or push-in front connector is ordered separately. Replacement planning must match the complete order number, front-connector choice, signal wiring and installation orientation.
| Item | Verified information |
|---|---|
| Manufacturer | Siemens |
| Order number | 6ES7531-7MH00-0AB0 |
| Product line | SIMATIC S7-1500 / AI 16xI BA |
| Lifecycle | PM300: Active Product |
| Supply review | Availability, condition, delivery timing and compatibility are checked against the requested quantity. |
| Parameter | Specification |
|---|---|
| Module type | SIMATIC S7-1500 AI 16xI BA analog input |
| Channels | 16 current inputs in one group of 16 |
| Resolution / accuracy | 16 bit; 0.5% accuracy |
| Permissible common-mode voltage | 4 V DC between inputs and MANA; 8 V DC between inputs |
| Diagnostics / interrupts | Channel diagnostics and hardware interrupts |
| Isolation | Channels not isolated from one another; isolated from backplane bus; 707 V DC type test |
| Hardware / firmware | FS01; firmware V1.0.0; firmware update supported |
| Operating temperature | Horizontal: −30 to +60 °C; vertical: −30 to +40 °C; no condensation |
| Installation altitude | Up to 5,000 m; restrictions apply above 2,000 m |
| Device dimensions (W × H × D) | 35 × 147 × 129 mm |
| Device weight, approx. | 250 g |
| Included / separate items | Infeed element, shield bracket and shield terminal included; front connector ordered separately |
Use three current views to verify identity, connectors and physical condition before procurement approval.
Acquire sixteen field current signals for S7-1500 control and monitoring tasks.
Use channel diagnostics and hardware interrupts to support fault localization and process response.
Siemens SiePortal lists 6ES7531-7MH00-0AB0 as PM300: Active Product. Procurement should still verify the exact order number, front connector and project configuration because other SM 531 variants have different channel counts and electrical ranges.
The module provides sixteen current inputs arranged in one group of sixteen.
Siemens specifies 16-bit resolution with 0.5% accuracy.
Yes. The module supports channel diagnostics and hardware interrupts.
No. Siemens includes the infeed and shield components, while the screw-type or push-in front connector is ordered separately.
Siemens identifies this exact order number as PM300: Active Product.
Verify the full order code, current signal range, connector type, channel wiring, common-mode limits and engineering configuration.
Send the quantity, delivery destination and clear nameplate photographs for supply, compatibility and warranty review.
Copy or open: sales6@apterpower.com | +86 181 5988 9985
A documentation-led service path for exact order-code identification, condition review, compatibility checks, testing, packing and international delivery.
01
Requirement ReviewQuantity, destination, condition preference and schedule. |
02
Identity MatchOrder code, series, label and hardware revision review. |
03
Physical InspectionHousing, connectors, terminals, indicators and mounting hardware. |
04
Functional ReviewPower-up, indicator states and applicable channel or interface checks. |
05
Evidence PackageCurrent photographs and test observations before dispatch. |
06
Protected DeliveryESD protection, cushioning, tracking and export documents. |
When available for the selected unit, the review package focuses on these three views.

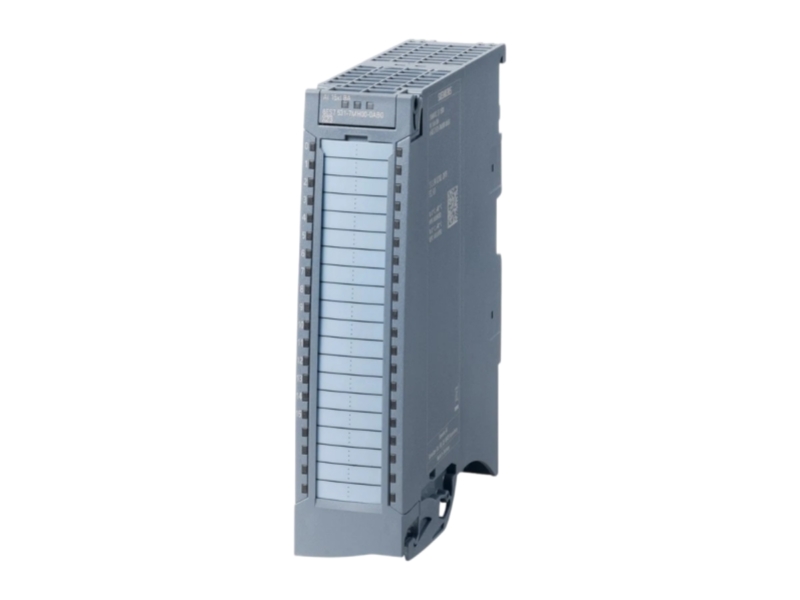

Identity and traceability

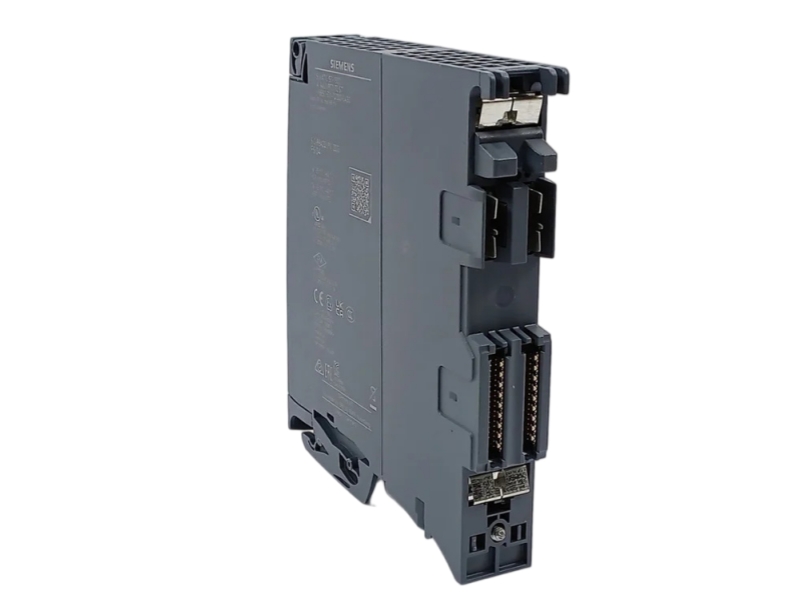

Channel interfaces and terminals

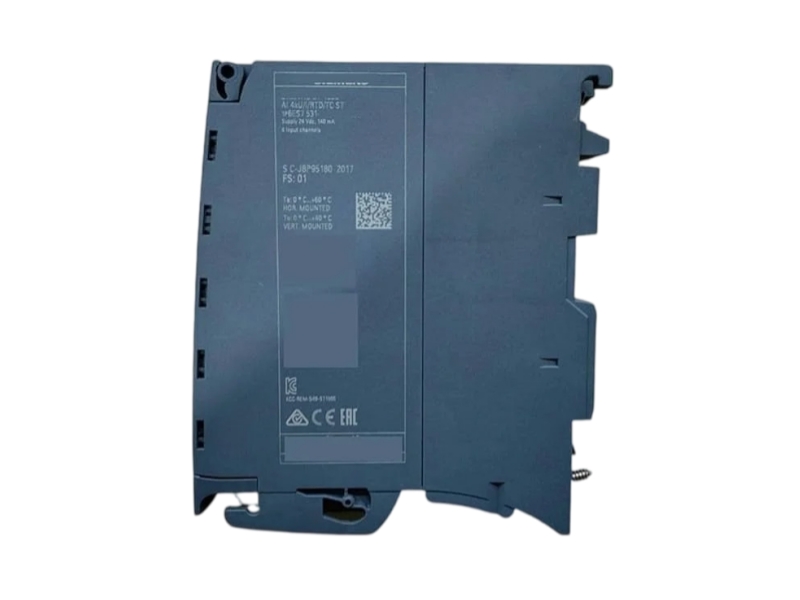

Housing and mounting condition
| Area | Service approach |
|---|---|
| Packing | ESD-safe inner protection with connector shielding and shock-resistant outer packing. |
| Global delivery | Tracked shipment options are reviewed for the destination, urgency and import requirements. |
| Warranty | Warranty scope is stated on the quotation according to condition and service level. |
| Compatibility | The buyer remains responsible for final system approval; we support the order-code and interface review. |
Share the installed-unit label, required quantity and delivery location for a focused service response.
Email Service TeamWhatsApp Service
Copy or open: sales6@apterpower.com | +86 181 5988 9985
