Verified identification, lifecycle context and procurement-focused compatibility guidance for industrial automation maintenance.

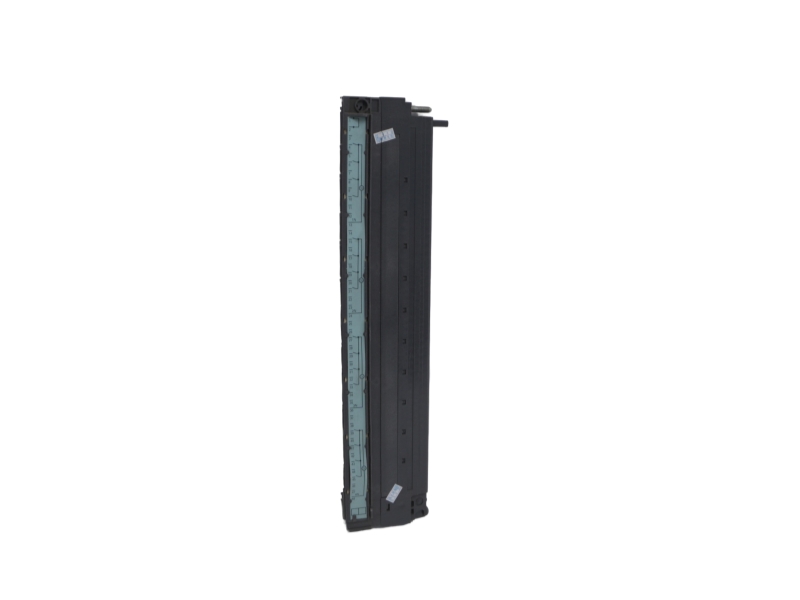

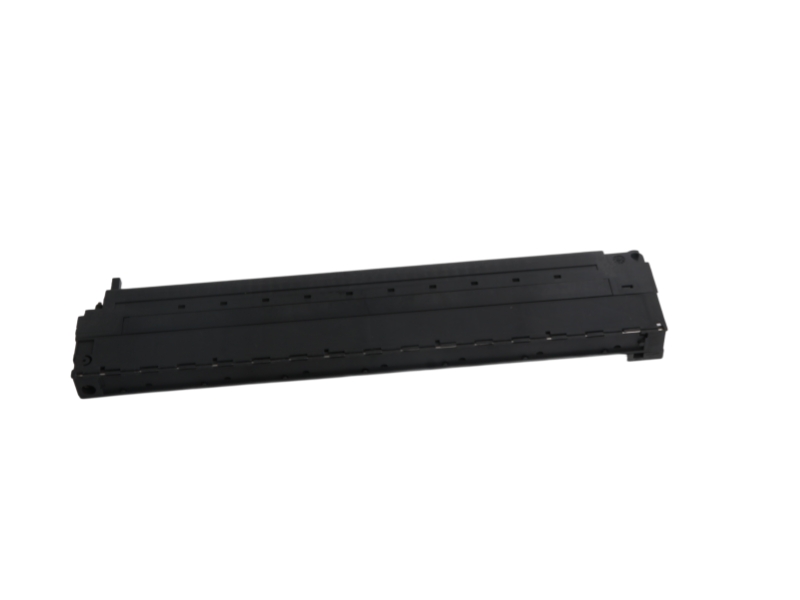

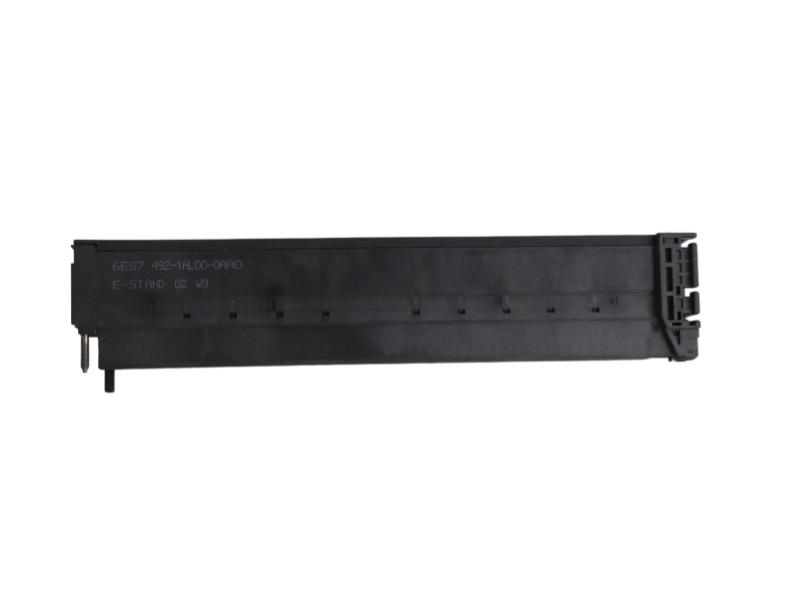

Siemens 6ES7492-1AL00-0AA0 is a Front Connector for SIMATIC S7-400 connection system. It is used in industrial control systems where the exact interface, electrical configuration and mechanical format must match the installed equipment. Procurement should be based on the complete order number and documented application, not on appearance alone.
| Manufacturer | Siemens |
| Complete part number | 6ES7492-1AL00-0AA0 |
| Product family | SIMATIC S7-400 front connector |
| Connector type | 48-pole screw-contact front connector |
| Official lifecycle | PM300:Active Product |
| Phase-out start | 01.10.2025 |
| Technical item | Verified value | Technical item | Verified value |
|---|---|---|---|
| Target system | SIMATIC S7-400 | Application | Signal modules |
| Contact technology | Screw contacts | Number of poles | 48 |
| Product type designation | Front connector | Approx. component weight | 42 g |
| Catalog net weight | 0.238 kg | Packaging | 7.30 × 30.00 × 3.30 cm |
| EAN | 4019169000239 | UPC | 662643186697 |
| Commodity code | 85369010 | RoHS compliance | Since 15.12.2005 |
Provides the detachable front wiring interface between plant conductors and compatible S7-400 signal modules.
Supports restoration of an installed rack when the original 48-pole screw-contact connector is damaged or missing.
Siemens TOP connect assemblies reference this connector type for prepared single-wire solutions used with S7-400 modules.
| Check point | Verification | Procurement note |
|---|---|---|
| Module interface | Confirm the installed S7-400 signal module uses a 48-pole front connector. | Do not infer compatibility from the S7-400 family name alone. |
| Terminal method | Verify screw contacts are required. | Crimp and other connector variants use different order numbers. |
| Mechanical coding | Compare connector keying and module position before installation. | Incorrect coding can prevent correct seating. |
| Wiring records | Check terminal assignment and conductor labels against the cabinet drawings. | Retain a verified wiring schedule before replacement. |
Siemens lists 6ES7492-1AL00-0AA0 as PM300:Active Product; product phase-out starts 01.10.2025. Confirm current regional availability and the installed module interface before procurement.
It is a 48-pole screw-contact front connector for compatible SIMATIC S7-400 signal modules.
No. It is the detachable field-wiring connector, not the S7-400 signal module itself.
This order number uses screw-contact termination.
No. Verify the exact signal-module interface, pole count and connector coding.
Siemens lists it as PM300:Active Product with product phase-out starting 01.10.2025.
Provide the full MLFB, quantity, destination, module order number and connector photos.
Send the complete part number 6ES7492-1AL00-0AA0, required quantity, destination and installed-system details for supply review.
For 6ES7492-1AL00-0AA0, we verify the complete order number, functional configuration, lifecycle evidence and installed-system interface before quotation.
Confirm 6ES7492-1AL00-0AA0 and nameplate evidence.
Review the exact system interface, electrical data and mechanical format.
Check housing, terminals or contacts, markings and visible condition.
Prepare protective packing and international shipping documentation.
| Review area | Evidence checked | Procurement value |
|---|---|---|
| Identity control | Full MLFB, suffix and manufacturer markings | Prevents mixing adjacent variants |
| System fit | Installed interface, configuration and clearance | Supports correct physical and functional matching |
| Lifecycle review | Official status and stated successor where applicable | Clarifies legacy-supply and migration decisions |
| Supply control | Condition photos, packaging and shipping documents | Improves traceability and delivery readiness |
Include quantity, destination and photos of the nameplate, mating interface and surrounding installation when available.
